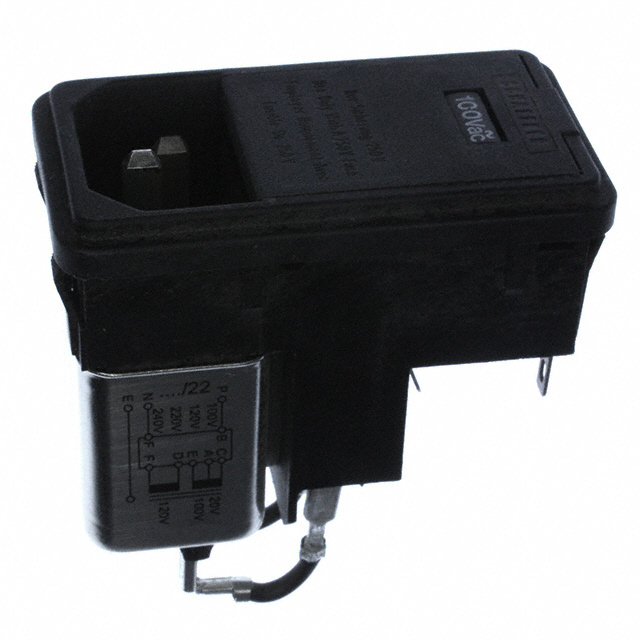

FN372-4-22
ActiveTE Connectivity Raychem Cable Protection
FN372-4-22
Deep-Dive with AI
Search across all available documentation for this part.
FN372-4-22
ActiveTE Connectivity Raychem Cable Protection
FN372-4-22
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FN372-4-22 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Filter | 4 A |
| Features | Voltage Selector |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions | Variable Size |
| Panel Thickness [Max] | 0.126 in |
| Panel Thickness [Max] | 3.2 mm |
| Panel Thickness [Min] | 0.79 mm |
| Panel Thickness [Min] | 0.031 " |
| Termination | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Schaffner FN370 Series
4 A, Unfiltered, 373 µA Leakage Current @ 250VAC, 50Hz, FASTON, PD2 Pollution Degree, IP40, UL 94V-2, Schaffner FN370, Inlet Filters
