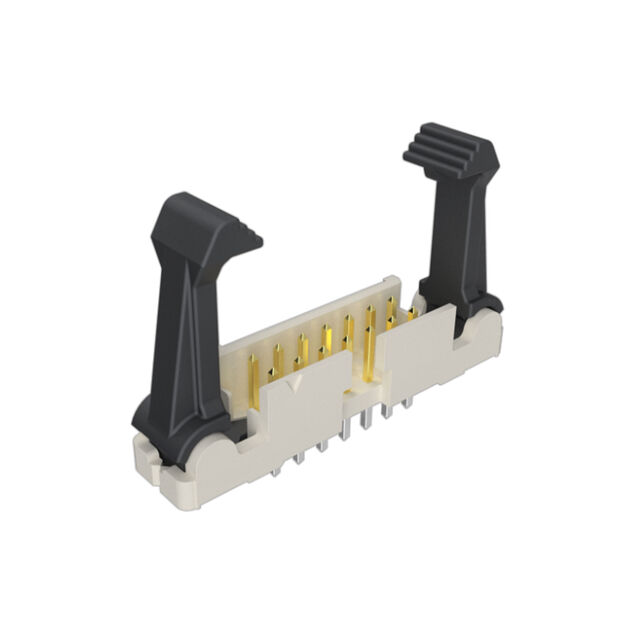

10078991-G21-14ULF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 14POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsgs-12-469 Other Related Documents minitek productpresentation Other Related Document +1

10078991-G21-14ULF

Active

Amphenol ICC (FCI)

CONN HEADER VERT 14POS 2MM

Deep-Dive with AI

Documentsgs-12-469 Other Related Documents minitek productpresentation Other Related Document +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10078991-G21-14ULF

Connector Type	Header
Contact Finish - Mating	Gold, GXT™
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	2.5 mm
Contact Length - Post	0.098 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Cream
Insulation Height	5.9 mm
Insulation Height	0.232 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

10078991 Series

Part	Insulation Height	Insulation Height	Fastening Type	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Shrouding	Current Rating (Amps)	Material Flammability Rating	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Number of Positions	Contact Finish - Mating	Number of Positions Loaded	Features	Contact Type	Mounting Type	Number of Rows	Voltage Rating	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Shape	Contact Length - Post	Contact Length - Post	Style
Amphenol ICC (FCI) 10078991-G31-24ULF	5.9 mm	0.232 in	Latch Lock/Eject Hooks	Header	0.079 in	2 mm	4 mm	0.157 in	Shrouded - 4 Wall	2 A	UL94 V-0	Solder	0.079 in	2 mm	Thermoplastic	24	Gold GXT™	All	Keying Slot	Male Pin	Through Hole	2	200 V	Cream	125 °C	-40 °C	30 Áin	0.76 Ám	Copper Alloy	Square	0.122 "	3.1 mm	Board to Cable/Wire
Amphenol ICC (FCI) 10078991-G31-14ULF	5.9 mm	0.232 in	Latch Lock/Eject Hooks	Header	0.079 in	2 mm	4 mm	0.157 in	Shrouded - 4 Wall	2 A	UL94 V-0	Solder	0.079 in	2 mm	Thermoplastic	14	Gold GXT™	All	Keying Slot	Male Pin	Through Hole	2	200 V	Cream	125 °C	-40 °C	30 Áin	0.76 Ám	Copper Alloy	Square	0.122 "	3.1 mm	Board to Cable/Wire
Amphenol ICC (FCI) 10078991-G22-50ULF	5.9 mm	0.232 in	Latch Lock/Eject Hooks Short	Header	0.079 in	2 mm	4 mm	0.157 in	Shrouded - 4 Wall	2 A	UL94 V-0	Solder	0.079 in	2 mm	Thermoplastic	50	Gold GXT™	All	Keying Slot	Male Pin	Through Hole	2	200 V	Cream	125 °C	-40 °C	30 Áin	0.76 Ám	Copper Alloy	Square	0.098 in	2.5 mm	Board to Cable/Wire
Amphenol ICC (FCI) 10078991-G21-40ULF	5.9 mm	0.232 in	Latch Lock/Eject Hooks	Header	0.079 in	2 mm	4 mm	0.157 in	Shrouded - 4 Wall	2 A	UL94 V-0	Solder	0.079 in	2 mm	Thermoplastic	40	Gold GXT™	All	Keying Slot	Male Pin	Through Hole	2	200 V	Cream	125 °C	-40 °C	30 Áin	0.76 Ám	Copper Alloy	Square	0.098 in	2.5 mm	Board to Cable/Wire
Amphenol ICC (FCI) 10078991-G21-44ULF	5.9 mm	0.232 in	Latch Lock/Eject Hooks	Header	0.079 in	2 mm	4 mm	0.157 in	Shrouded - 4 Wall	2 A	UL94 V-0	Solder	0.079 in	2 mm	Thermoplastic	44	Gold GXT™	All	Keying Slot	Male Pin	Through Hole	2	200 V	Cream	125 °C	-40 °C	30 Áin	0.76 Ám	Copper Alloy	Square	0.098 in	2.5 mm	Board to Cable/Wire
Amphenol ICC (FCI) 10078991-G21-06ULF	5.9 mm	0.232 in	Latch Lock/Eject Hooks	Header	0.079 in	2 mm	4 mm	0.157 in	Shrouded - 4 Wall	2 A	UL94 V-0	Solder	0.079 in	2 mm	Thermoplastic	6	Gold GXT™	All	Keying Slot	Male Pin	Through Hole	2	200 V	Cream	125 °C	-40 °C	30 Áin	0.76 Ám	Copper Alloy	Square	0.098 in	2.5 mm	Board to Cable/Wire
Amphenol ICC (FCI) 10078991-G32-14ULF	5.9 mm	0.232 in	Latch Lock/Eject Hooks Short	Header	0.079 in	2 mm	4 mm	0.157 in	Shrouded - 4 Wall	2 A	UL94 V-0	Solder	0.079 in	2 mm	Thermoplastic	14	Gold GXT™	All	Keying Slot	Male Pin	Through Hole	2	200 V	Cream	125 °C	-40 °C	30 Áin	0.76 Ám	Copper Alloy	Square	0.122 "	3.1 mm	Board to Cable/Wire
Amphenol ICC (FCI) 10078991-G21-14ULF	5.9 mm	0.232 in	Latch Lock/Eject Hooks	Header	0.079 in	2 mm	4 mm	0.157 in	Shrouded - 4 Wall	2 A	UL94 V-0	Solder	0.079 in	2 mm	Thermoplastic	14	Gold GXT™	All	Keying Slot	Male Pin	Through Hole	2	200 V	Cream	125 °C	-40 °C	30 Áin	0.76 Ám	Copper Alloy	Square	0.098 in	2.5 mm	Board to Cable/Wire
Amphenol ICC (FCI) 10078991-G22-24ULF	5.9 mm	0.232 in	Latch Lock/Eject Hooks Short	Header	0.079 in	2 mm	4 mm	0.157 in	Shrouded - 4 Wall	2 A	UL94 V-0	Solder	0.079 in	2 mm	Thermoplastic	24	Gold GXT™	All	Keying Slot	Male Pin	Through Hole	2	200 V	Cream	125 °C	-40 °C	30 Áin	0.76 Ám	Copper Alloy	Square	0.098 in	2.5 mm	Board to Cable/Wire
Amphenol ICC (FCI) 10078991-G32-44ULF	5.9 mm	0.232 in	Latch Lock/Eject Hooks Short	Header	0.079 in	2 mm	4 mm	0.157 in	Shrouded - 4 Wall	2 A	UL94 V-0	Solder	0.079 in	2 mm	Thermoplastic	44	Gold GXT™	All	Keying Slot	Male Pin	Through Hole	2	200 V	Cream	125 °C	-40 °C	30 Áin	0.76 Ám	Copper Alloy	Square	0.122 "	3.1 mm	Board to Cable/Wire

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$
