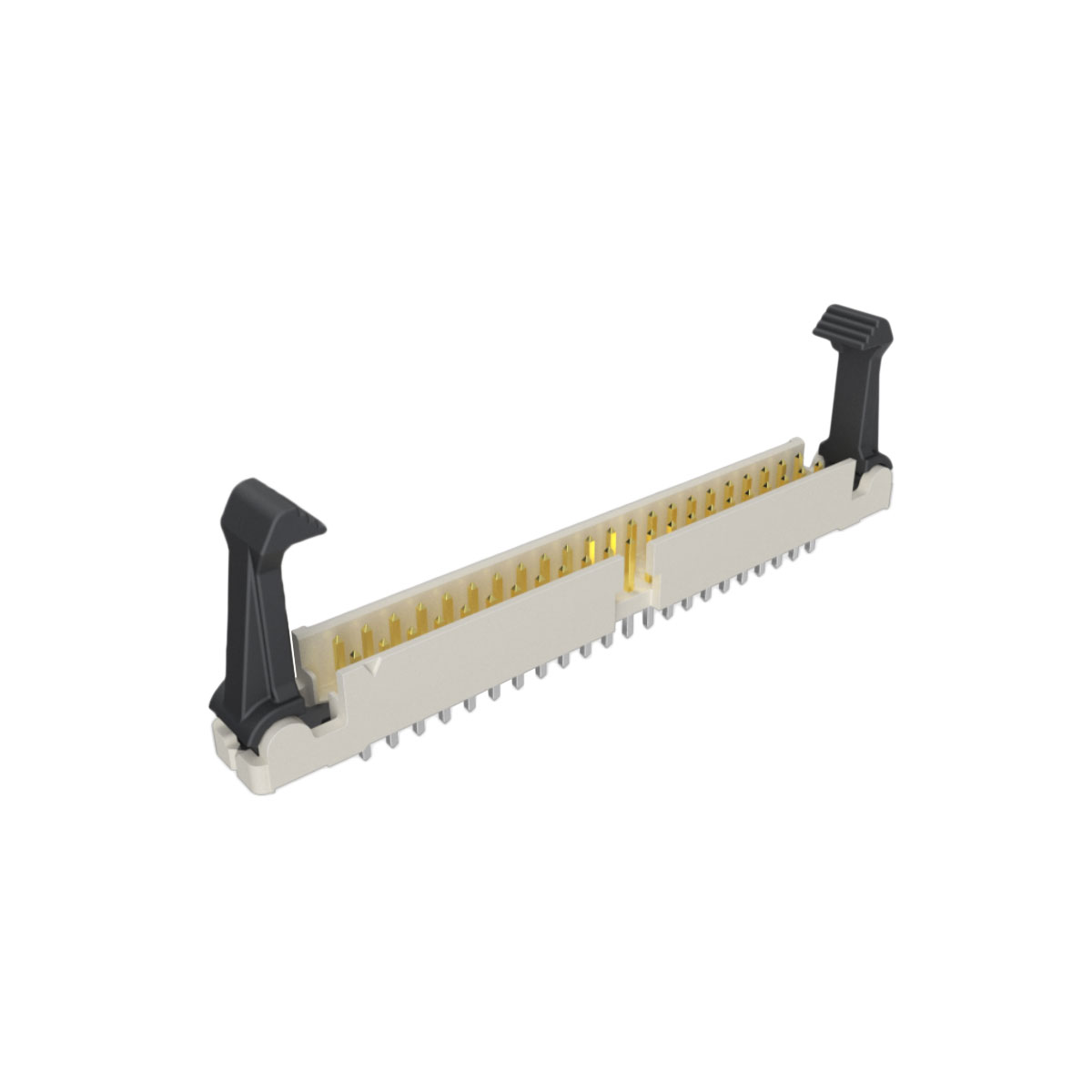

10078991-G21-44ULF
ActiveAmphenol ICC (FCI)
CONN HEADER VERT 44POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
10078991-G21-44ULF
ActiveAmphenol ICC (FCI)
CONN HEADER VERT 44POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10078991-G21-44ULF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold, GXT™ |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Mating | 4 mm |
| Contact Length - Mating | 0.157 in |
| Contact Length - Post | 2.5 mm |
| Contact Length - Post | 0.098 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Latch Lock/Eject Hooks |
| Features | Keying Slot |
| Insulation Color | Cream |
| Insulation Height | 5.9 mm |
| Insulation Height | 0.232 in |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 200 V |
10078991 Series
| Part | Insulation Height | Insulation Height | Fastening Type | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Mating | Contact Length - Mating | Shrouding | Current Rating (Amps) | Material Flammability Rating | Termination | Pitch - Mating [x] | Pitch - Mating [x] | Insulation Material | Number of Positions | Contact Finish - Mating | Number of Positions Loaded | Features | Contact Type | Mounting Type | Number of Rows | Voltage Rating | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Contact Shape | Contact Length - Post | Contact Length - Post | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 5.9 mm | 0.232 in | Latch Lock/Eject Hooks | Header | 0.079 in | 2 mm | 4 mm | 0.157 in | Shrouded - 4 Wall | 2 A | UL94 V-0 | Solder | 0.079 in | 2 mm | Thermoplastic | 24 | Gold GXT™ | All | Keying Slot | Male Pin | Through Hole | 2 | 200 V | Cream | 125 °C | -40 °C | 30 Áin | 0.76 Ám | Copper Alloy | Square | 0.122 " | 3.1 mm | Board to Cable/Wire |
Amphenol ICC (FCI) | 5.9 mm | 0.232 in | Latch Lock/Eject Hooks | Header | 0.079 in | 2 mm | 4 mm | 0.157 in | Shrouded - 4 Wall | 2 A | UL94 V-0 | Solder | 0.079 in | 2 mm | Thermoplastic | 14 | Gold GXT™ | All | Keying Slot | Male Pin | Through Hole | 2 | 200 V | Cream | 125 °C | -40 °C | 30 Áin | 0.76 Ám | Copper Alloy | Square | 0.122 " | 3.1 mm | Board to Cable/Wire |
Amphenol ICC (FCI) | 5.9 mm | 0.232 in | Latch Lock/Eject Hooks Short | Header | 0.079 in | 2 mm | 4 mm | 0.157 in | Shrouded - 4 Wall | 2 A | UL94 V-0 | Solder | 0.079 in | 2 mm | Thermoplastic | 50 | Gold GXT™ | All | Keying Slot | Male Pin | Through Hole | 2 | 200 V | Cream | 125 °C | -40 °C | 30 Áin | 0.76 Ám | Copper Alloy | Square | 0.098 in | 2.5 mm | Board to Cable/Wire |
Amphenol ICC (FCI) | 5.9 mm | 0.232 in | Latch Lock/Eject Hooks | Header | 0.079 in | 2 mm | 4 mm | 0.157 in | Shrouded - 4 Wall | 2 A | UL94 V-0 | Solder | 0.079 in | 2 mm | Thermoplastic | 40 | Gold GXT™ | All | Keying Slot | Male Pin | Through Hole | 2 | 200 V | Cream | 125 °C | -40 °C | 30 Áin | 0.76 Ám | Copper Alloy | Square | 0.098 in | 2.5 mm | Board to Cable/Wire |
Amphenol ICC (FCI) | 5.9 mm | 0.232 in | Latch Lock/Eject Hooks | Header | 0.079 in | 2 mm | 4 mm | 0.157 in | Shrouded - 4 Wall | 2 A | UL94 V-0 | Solder | 0.079 in | 2 mm | Thermoplastic | 44 | Gold GXT™ | All | Keying Slot | Male Pin | Through Hole | 2 | 200 V | Cream | 125 °C | -40 °C | 30 Áin | 0.76 Ám | Copper Alloy | Square | 0.098 in | 2.5 mm | Board to Cable/Wire |
Amphenol ICC (FCI) | 5.9 mm | 0.232 in | Latch Lock/Eject Hooks | Header | 0.079 in | 2 mm | 4 mm | 0.157 in | Shrouded - 4 Wall | 2 A | UL94 V-0 | Solder | 0.079 in | 2 mm | Thermoplastic | 6 | Gold GXT™ | All | Keying Slot | Male Pin | Through Hole | 2 | 200 V | Cream | 125 °C | -40 °C | 30 Áin | 0.76 Ám | Copper Alloy | Square | 0.098 in | 2.5 mm | Board to Cable/Wire |
Amphenol ICC (FCI) | 5.9 mm | 0.232 in | Latch Lock/Eject Hooks Short | Header | 0.079 in | 2 mm | 4 mm | 0.157 in | Shrouded - 4 Wall | 2 A | UL94 V-0 | Solder | 0.079 in | 2 mm | Thermoplastic | 14 | Gold GXT™ | All | Keying Slot | Male Pin | Through Hole | 2 | 200 V | Cream | 125 °C | -40 °C | 30 Áin | 0.76 Ám | Copper Alloy | Square | 0.122 " | 3.1 mm | Board to Cable/Wire |
Amphenol ICC (FCI) | 5.9 mm | 0.232 in | Latch Lock/Eject Hooks | Header | 0.079 in | 2 mm | 4 mm | 0.157 in | Shrouded - 4 Wall | 2 A | UL94 V-0 | Solder | 0.079 in | 2 mm | Thermoplastic | 14 | Gold GXT™ | All | Keying Slot | Male Pin | Through Hole | 2 | 200 V | Cream | 125 °C | -40 °C | 30 Áin | 0.76 Ám | Copper Alloy | Square | 0.098 in | 2.5 mm | Board to Cable/Wire |
Amphenol ICC (FCI) | 5.9 mm | 0.232 in | Latch Lock/Eject Hooks Short | Header | 0.079 in | 2 mm | 4 mm | 0.157 in | Shrouded - 4 Wall | 2 A | UL94 V-0 | Solder | 0.079 in | 2 mm | Thermoplastic | 24 | Gold GXT™ | All | Keying Slot | Male Pin | Through Hole | 2 | 200 V | Cream | 125 °C | -40 °C | 30 Áin | 0.76 Ám | Copper Alloy | Square | 0.098 in | 2.5 mm | Board to Cable/Wire |
Amphenol ICC (FCI) | 5.9 mm | 0.232 in | Latch Lock/Eject Hooks Short | Header | 0.079 in | 2 mm | 4 mm | 0.157 in | Shrouded - 4 Wall | 2 A | UL94 V-0 | Solder | 0.079 in | 2 mm | Thermoplastic | 44 | Gold GXT™ | All | Keying Slot | Male Pin | Through Hole | 2 | 200 V | Cream | 125 °C | -40 °C | 30 Áin | 0.76 Ám | Copper Alloy | Square | 0.122 " | 3.1 mm | Board to Cable/Wire |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 160 | $ 5.10 | |
Description
General part information
10078991 Series
Connector Header Through Hole 44 position 0.079" (2.00mm)
