845-008-541-412

Active

EDAC Inc.

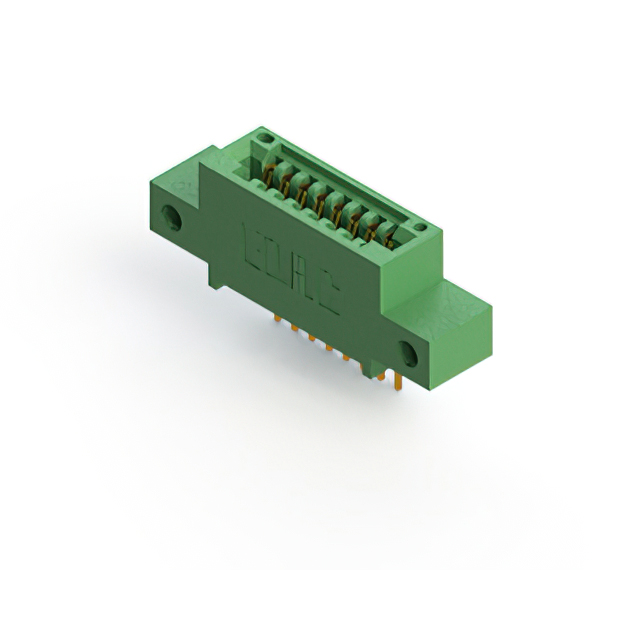

CARD EDGE CONNECTOR, 8 CONTACT(S), 1 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-008-541-412

Active

EDAC Inc.

CARD EDGE CONNECTOR, 8 CONTACT(S), 1 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, HOLE 0.128, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-008-541-412

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Positions/Bay/Row [custom]	8
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

845-008 Series

...

Part	Contact Finish	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Contact Type	Pitch [x]	Pitch [x]	Number of Rows	Contact Material	Flange Feature	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Color	Termination	Gender	Read Out	Mounting Type	Number of Positions	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 845-008-520-608	Gold	8	8	8	10 Áin	0.25 Ám	1	Cantilever	2.54 mm	0.1 in	1	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Diallyl Phthalate (DAP)	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Green	Solder	Female	Single	Through Hole	8
EDAC Inc. 845-008-541-602	Gold	8	8	8	10 Áin	0.25 Ám	1	Cantilever	2.54 mm	0.1 in	1	Copper Alloy		Diallyl Phthalate (DAP)	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Green	Wire Wrap	Female	Single	Through Hole	8	3.25 mm	0.128 in
EDAC Inc. 845-008-525-412	Gold	8	8	8	10 Áin	0.25 Ám	1	Cantilever	2.54 mm	0.1 in	1	Copper Alloy	Side Mount Opening Unthreaded	Diallyl Phthalate (DAP)	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Green	Solder	Female	Single	Through Hole	8	3.25 mm	0.128 in
EDAC Inc. 845-008-559-604	Gold	8	8	8	10 Áin	0.25 Ám	1	Cantilever	2.54 mm	0.1 in	1	Copper Alloy	Top Mount Opening Unthreaded	Diallyl Phthalate (DAP)	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Green	Solder	Female	Single	Through Hole Right Angle	8			0.156 in	3.96 mm
EDAC Inc. 845-008-540-608	Gold	8	8	8	10 Áin	0.25 Ám	1	Cantilever	2.54 mm	0.1 in	1	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Diallyl Phthalate (DAP)	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Green	Wire Wrap	Female	Single	Through Hole	8
EDAC Inc. 845-008-544-612	Gold	8	8	8	10 Áin	0.25 Ám	1	Cantilever	2.54 mm	0.1 in	1	Copper Alloy	Side Mount Opening Unthreaded	Diallyl Phthalate (DAP)	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Green	Wire Wrap	Female	Single	Through Hole	8	3.25 mm	0.128 in
EDAC Inc. 845-008-541-412	Gold	8	8	8	10 Áin	0.25 Ám	1	Cantilever	2.54 mm	0.1 in	1	Copper Alloy	Side Mount Opening Unthreaded	Diallyl Phthalate (DAP)	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Green	Wire Wrap	Female	Single	Through Hole	8	3.25 mm	0.128 in
EDAC Inc. 845-008-500-102	Gold	8	8	8	10 Áin	0.25 Ám	1	Cantilever	2.54 mm	0.1 in	1	Copper Alloy	Flush Mount Top Opening Unthreaded	Diallyl Phthalate (DAP)	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Green	Solder Eyelet(s)	Female	Single	Through Hole	8			0.128 "	3.25 mm
EDAC Inc. 845-008-521-102	Gold	8	8	8	10 Áin	0.25 Ám	1	Cantilever	2.54 mm	0.1 in	1	Copper Alloy	Flush Mount Top Opening Unthreaded	Diallyl Phthalate (DAP)	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Green	Solder	Female	Single	Through Hole	8			0.128 "	3.25 mm
EDAC Inc. 845-008-500-402	Gold	8	8	8	10 Áin	0.25 Ám	1	Cantilever	2.54 mm	0.1 in	1	Copper Alloy		Diallyl Phthalate (DAP)	125 °C	-40 °C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Green	Solder Eyelet(s)	Female	Single	Through Hole	8	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 46.07
Newark	Each	1	$ 53.18
		100	$ 33.27
		250	$ 30.14
		500	$ 28.23
		1000	$ 23.75

Description

General part information

845-008 Series

8 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
