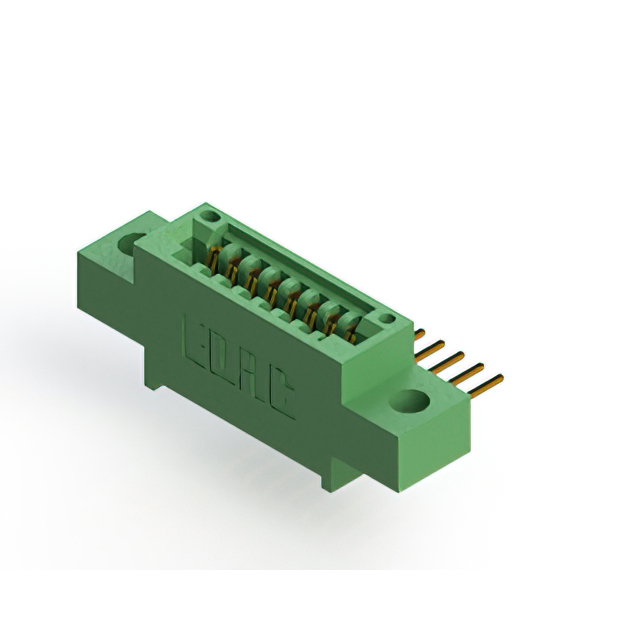

845-008-559-604
ActiveEDAC Inc.
CONN EDGE SINGLE FML 8POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-008-559-604
ActiveEDAC Inc.
CONN EDGE SINGLE FML 8POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-008-559-604 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
845-008 Series
...
| Part | Contact Finish | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Contact Type | Pitch [x] | Pitch [x] | Number of Rows | Contact Material | Flange Feature | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Color | Termination | Gender | Read Out | Mounting Type | Number of Positions | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Solder | Female | Single | Through Hole | 8 | ||||
EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Wire Wrap | Female | Single | Through Hole | 8 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Side Mount Opening Unthreaded | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Solder | Female | Single | Through Hole | 8 | 3.25 mm | 0.128 in | ||
EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Top Mount Opening Unthreaded | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Solder | Female | Single | Through Hole Right Angle | 8 | 0.156 in | 3.96 mm | ||
EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Wire Wrap | Female | Single | Through Hole | 8 | ||||
EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Side Mount Opening Unthreaded | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Wire Wrap | Female | Single | Through Hole | 8 | 3.25 mm | 0.128 in | ||
EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Side Mount Opening Unthreaded | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Wire Wrap | Female | Single | Through Hole | 8 | 3.25 mm | 0.128 in | ||
EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Solder Eyelet(s) | Female | Single | Through Hole | 8 | 0.128 " | 3.25 mm | ||
EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Flush Mount Top Opening Unthreaded | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Solder | Female | Single | Through Hole | 8 | 0.128 " | 3.25 mm | ||
EDAC Inc. | Gold | 8 | 8 | 8 | 10 Áin | 0.25 Ám | 1 | Cantilever | 2.54 mm | 0.1 in | 1 | Copper Alloy | Diallyl Phthalate (DAP) | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Green | Solder Eyelet(s) | Female | Single | Through Hole | 8 | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-008 Series
8 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
