C1825X105KARAC7800
ActiveKEMET

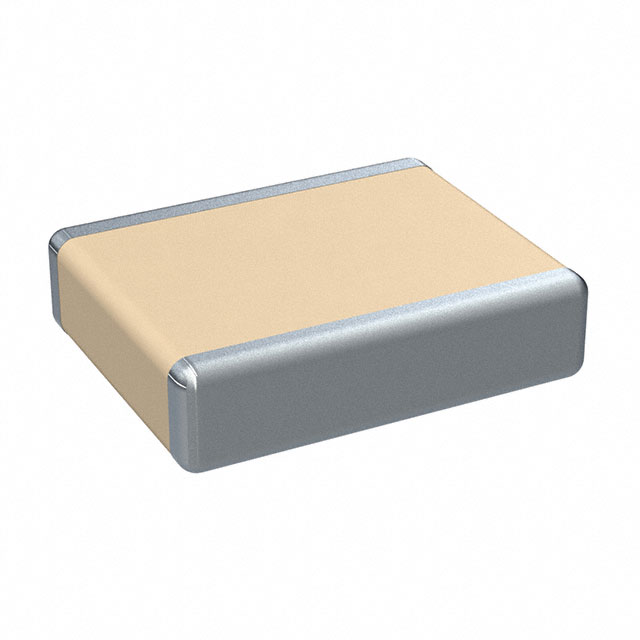

CAP CERAMIC 1UF 250V X7R 10% PAD SMD 1825 FLEXIBLE TERMINATION 125°C MEDICAL T/R
Deep-Dive with AI
Search across all available documentation for this part.
C1825X105KARAC7800
ActiveKEMET
CAP CERAMIC 1UF 250V X7R 10% PAD SMD 1825 FLEXIBLE TERMINATION 125°C MEDICAL T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1825X105KARAC7800 |
|---|---|
| Applications | Boardflex Sensitive |
| Capacitance | 1 µF |
| Features | Soft Termination |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4564 Metric |
| Package / Case | 1825 |
| Size / Dimension [x] | 0.181 " |
| Size / Dimension [x] | 4.6 mm |
| Size / Dimension [y] | 0.252 in |
| Size / Dimension [y] | 6.4 mm |
| Temperature Coefficient | X7R |
| Thickness (Max) [Max] | 0.065 in |
| Thickness (Max) [Max] | 1.65 mm |
| Tolerance | 10 % |
| Voltage - Rated | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.41 | |
| 10 | $ 2.62 | |||
| 50 | $ 2.40 | |||
| 100 | $ 1.99 | |||
| 500 | $ 1.60 | |||
| Digi-Reel® | 1 | $ 3.41 | ||
| 10 | $ 2.62 | |||
| 50 | $ 2.40 | |||
| 100 | $ 1.99 | |||
| 500 | $ 1.60 | |||
| Tape & Reel (TR) | 1000 | $ 1.40 | ||
| 2000 | $ 1.35 | |||
| 5000 | $ 1.30 | |||
Description
General part information
C1825X Series
1 µF ±10% 250V Ceramic Capacitor X7R 1825 (4564 Metric)
