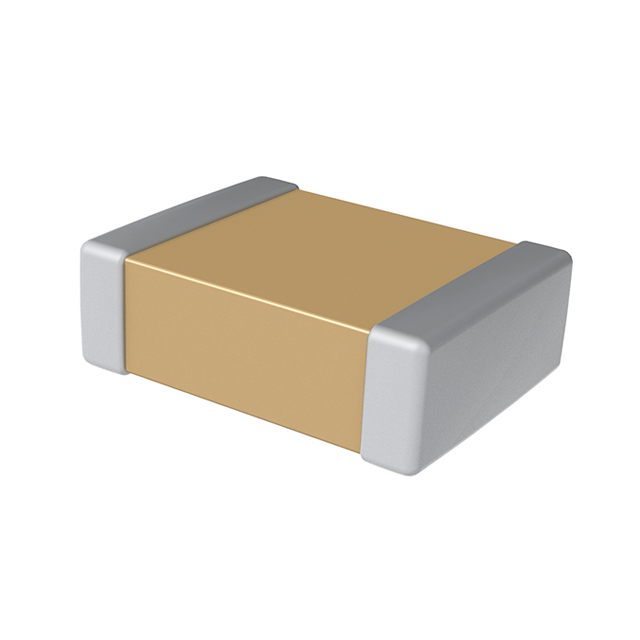

C1825X104KDRACAUTO

Active

KEMET

CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 1000V, 10% +TOL, 10% -TOL, X7R, 15% TC, 0.1UF, SURFACE MOUNT, 1825, CHIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_C1077_X7R_HV_FT_AUTO_SMD.pdf C1825X104KDRACAUTO Spec +1

C1825X104KDRACAUTO

Active

KEMET

CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 1000V, 10% +TOL, 10% -TOL, X7R, 15% TC, 0.1UF, SURFACE MOUNT, 1825, CHIP

Deep-Dive with AI

DocumentsKEM_C1077_X7R_HV_FT_AUTO_SMD.pdf C1825X104KDRACAUTO Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C1825X104KDRACAUTO

Applications	Boardflex Sensitive, Automotive
Capacitance	100000 pF
Features	Low ESL, High Voltage, Soft Termination
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	4564 Metric
Package / Case	1825
Ratings	AEC-Q200
Size / Dimension [x]	0.181 "
Size / Dimension [x]	4.6 mm
Size / Dimension [y]	0.252 in
Size / Dimension [y]	6.4 mm
Temperature Coefficient	X7R
Thickness (Max) [Max]	0.106 "
Thickness (Max) [Max]	2.7 mm
Tolerance	10 %
Voltage - Rated	1 kV
Voltage - Rated	1000 V

C1825X Series

Part	Temperature Coefficient	Applications	Mounting Type	Thickness (Max) [Max]	Thickness (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Rated	Voltage - Rated	Tolerance	Package / Case	Package / Case	Ratings	Capacitance	Thickness (Max) [Max] [custom]	Thickness (Max) [Max] [custom]
KEMET C1825X473KFRAC7800	X7R	Boardflex Sensitive	MLCC Surface Mount	0.106 "	2.7 mm	0.252 in	0.181 "	4.6 mm	6.4 mm	-55 °C	125 °C	High Voltage Low ESL Soft Termination	1.5 kV	1500 V	10 %	4564 Metric	1825
KEMET C1825X474K1RACAUTO	X7R	Automotive Boardflex Sensitive	MLCC Surface Mount	0.049 "	1.25 mm	0.252 in	0.181 "	4.6 mm	6.4 mm	-55 °C	125 °C	Soft Termination		100 V	10 %	4564 Metric	1825	AEC-Q200	0.47 µF
KEMET C1825X104KDRACAUTO	X7R	Automotive Boardflex Sensitive	MLCC Surface Mount	0.106 "	2.7 mm	0.252 in	0.181 "	4.6 mm	6.4 mm	-55 °C	125 °C	High Voltage Low ESL Soft Termination	1 kV	1000 V	10 %	4564 Metric	1825	AEC-Q200	100000 pF
KEMET C1825X104K1RACAUTO	X7R	Automotive Boardflex Sensitive	MLCC Surface Mount	0.049 "	1.25 mm	0.252 in	0.181 "	4.6 mm	6.4 mm	-55 °C	125 °C	Soft Termination		100 V	10 %	4564 Metric	1825	AEC-Q200	100000 pF
KEMET C1825X103KDGACTU	C0G NP0	Boardflex Sensitive	MLCC Surface Mount			0.252 in	0.181 "	4.6 mm	6.4 mm	-55 °C	125 °C	High Voltage Low ESL Soft Termination	1 kV	1000 V	10 %	4564 Metric	1825		10000 pF	0.043 "	1.1 mm
KEMET C1825X105K2RAC7800	X7R	Boardflex Sensitive	MLCC Surface Mount	0.065 in	1.65 mm	0.252 in	0.181 "	4.6 mm	6.4 mm	-55 °C	125 °C	Soft Termination		200 V	10 %	4564 Metric	1825		1 µF
KEMET C1825X105KARACAUTO	X7R	Automotive Boardflex Sensitive	MLCC Surface Mount	0.065 in	1.65 mm	0.252 in	0.181 "	4.6 mm	6.4 mm	-55 °C	125 °C	Soft Termination		250 V	10 %	4564 Metric	1825	AEC-Q200	1 µF
KEMET C1825X104JBGACAUTO	C0G NP0	Automotive Boardflex Sensitive	MLCC Surface Mount	0.106 "	2.7 mm	0.252 in	0.181 "	4.6 mm	6.4 mm	-55 °C	125 °C	High Voltage Low ESL Soft Termination		630 V	5 %	4564 Metric	1825	AEC-Q200	100000 pF
KEMET C1825X105KARAC7800	X7R	Boardflex Sensitive	MLCC Surface Mount	0.065 in	1.65 mm	0.252 in	0.181 "	4.6 mm	6.4 mm	-55 °C	125 °C	Soft Termination		250 V	10 %	4564 Metric	1825		1 µF
KEMET C1825X153KGRACTU	X7R	Boardflex Sensitive	MLCC Surface Mount	0.106 "	2.7 mm	0.252 in	0.181 "	4.6 mm	6.4 mm	-55 °C	125 °C	High Voltage Low ESL Soft Termination	2 kV	2000 V	10 %	4564 Metric	1825		15000 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.44
		10	$ 1.88
		50	$ 1.72
		100	$ 1.43
	Digi-Reel®	1	$ 2.85
		10	$ 1.86
		50	$ 1.46
		100	$ 1.33
	Tape & Reel (TR)	500	$ 1.15
		1000	$ 1.00
		2500	$ 0.97
		5000	$ 0.93

Description

General part information

C1825X Series

0.1 µF ±10% 1000V (1kV) Ceramic Capacitor X7R 1825 (4564 Metric)

Documents

Technical documentation and resources

KEM_C1077_X7R_HV_FT_AUTO_SMD.pdf

Datasheet

C1825X104KDRACAUTO Spec

Datasheet
