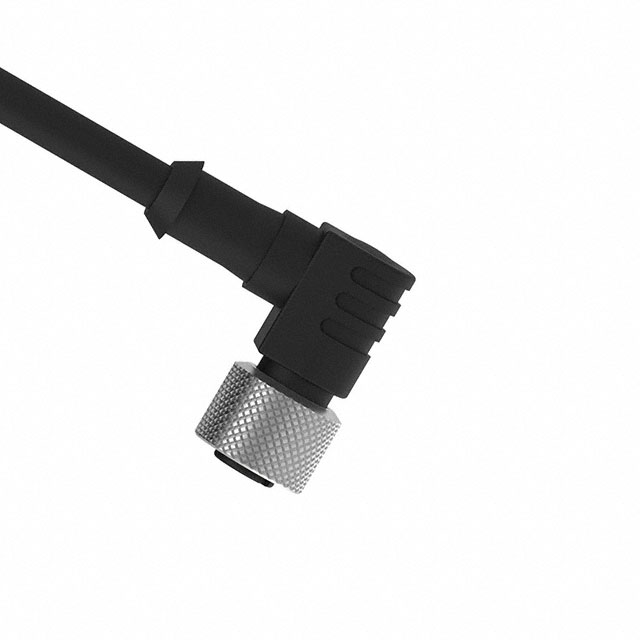

MQDC2S-806RA

Active

BANNER ENGINEERING

MQDC2S-806RA - BANNER ENGINEERING EURO-STYLE QUICK DISCONNECT OPEN SHIELD CABLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MQDC2S-806RA

Active

BANNER ENGINEERING

MQDC2S-806RA - BANNER ENGINEERING EURO-STYLE QUICK DISCONNECT OPEN SHIELD CABLE,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MQDC2S-806RA

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	6 ft
Length	1.83 m
Shielding	Shielded
Usage	Industrial Environments

MQDC Series

Part	Ingress Protection	Cable Material	1st Connector Type	2nd Connector Type	1st Connector Shell Size - Insert	1st Connector Orientation [custom]	1st Connector Gender	1st Connector Number of Positions	1st Connector Number of Positions Loaded	Cable Type	Usage	Assembly Configuration	Color	Shielding	Length [x]	Length [x]	1st Connector Mounting Type	Length	Length	1st Connector Number of Positions [custom]
BANNER ENGINEERING MQDC1-501.5RA	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	Plug Right Angle	Wire Leads	M12	Keyed	Female Sockets	5	All	Round	Industrial Environments	Standard	Black	Unshielded	457.2 mm	1.5 ft	Free Hanging (In-Line)
BANNER ENGINEERING MQDC-WDSS-0430	IP69K - Dust Tight High Temp Water Jets Waterproof	Polyvinyl Chloride (PVC)	Plug	Wire Leads	M12	Keyed	Female Sockets	4	All	Round	Industrial Environments	Standard	Black	Unshielded			Free Hanging (In-Line)	30 '	9.14 m
BANNER ENGINEERING MQDC20-515	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	Plug	Wire Leads	M12	Keyed	Female Sockets	5	All	Round	Industrial Environments	Standard	Black	Unshielded	4.57 m	15 ft	Free Hanging (In-Line)
BANNER ENGINEERING MQDC2S-850	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	Plug	Wire Leads	M12	Keyed	Female Sockets	8 positions	All	Round	Industrial Environments	Standard	Black	Shielded			Free Hanging (In-Line)	50 ft	15.24 m
BANNER ENGINEERING MQDC-450	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	Plug	Wire Leads	M12	Keyed	Female Sockets	4	All	Round	Industrial Environments	Standard	Black	Unshielded			Free Hanging (In-Line)	50 ft	15.24 m
BANNER ENGINEERING MQDC1-515	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	Plug	Wire Leads	M12	Keyed	Female Sockets	5	All	Round	Industrial Environments	Standard	Black	Unshielded	4.57 m	15 ft	Free Hanging (In-Line)
BANNER ENGINEERING MQDC2S-830	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	Plug	Wire Leads	M12	Keyed	Female Sockets	8 positions	All	Round	Industrial Environments	Standard	Black	Shielded			Free Hanging (In-Line)	30 '	9.14 m
BANNER ENGINEERING MQDC2S-802	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	Plug	Wire Leads	M12	Keyed	Female Sockets	8 positions	All	Round	Industrial Environments	Standard	Black	Shielded	609.6 mm	2 '	Free Hanging (In-Line)
BANNER ENGINEERING MQDC2S-806RA	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	Plug Right Angle	Wire Leads	M12	Keyed	Female Sockets	8 positions	All	Round	Industrial Environments	Standard	Black	Shielded			Free Hanging (In-Line)	6 ft	1.83 m
BANNER ENGINEERING MQDC2S-1715	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)	Plug	Wire Leads	M12	Keyed	Female Sockets		All	Round	Industrial Environments	Standard	Black	Shielded	4.57 m	15 ft	Free Hanging (In-Line)			17

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 61.00

Description

General part information

MQDC Series

Circular Cable Assembly Shielded 6.00' (1.83m)
