MQDC-WDSS-0430

Active

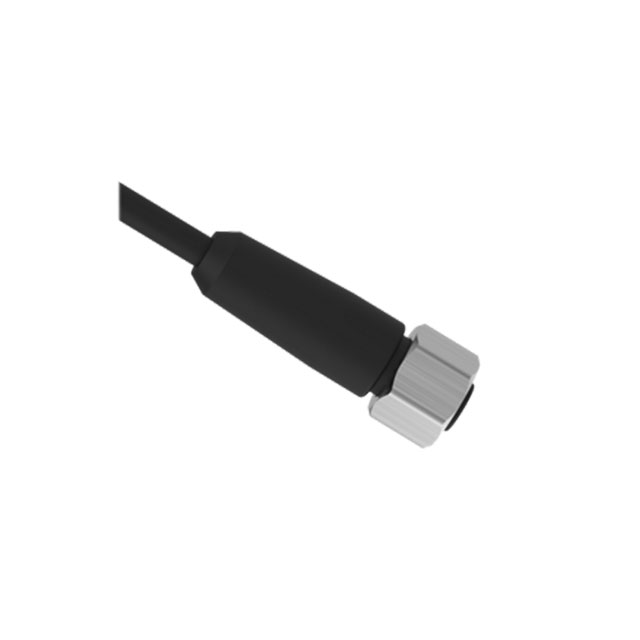

SENSOR CABLES / ACTUATOR CABLES CORDSET: SINGLE ENDED M12; 4-PIN STRAIGHT FEMALE; 9 M (29.53 FT) 4X22 BLACK PVC JACKET; PVC BLACK; 316 STAINLESS STEEL COUPLING NUT

Find alt

Alpha

MQDC-WDSS-0430

Active

BANNER ENGINEERING

SENSOR CABLES / ACTUATOR CABLES CORDSET: SINGLE ENDED M12; 4-PIN STRAIGHT FEMALE; 9 M (29.53 FT) 4X22 BLACK PVC JACKET; PVC BLACK; 316 STAINLESS STEEL COUPLING NUT

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

MQDC Series

Circular Cable Assembly Unshielded 30.0' (9.14m)

Technical Specifications

Parameters and characteristics for this part

Specification	MQDC-WDSS-0430

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection Description	High Temp Water Jets, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K
Length	30 ft
Shielding	Unshielded
Usage	Industrial Environments

MQDC Series

Part	1st Connector Number of Positions	Shielding	2nd Connector Type	1st Connector Gender	1st Connector Mounting Type	Cable Type	Color	Cable Material	Length	Assembly Configuration	1st Connector Shell Size - Insert	Usage	1st Connector Number of Positions Loaded	1st Connector Type	Ingress Protection Description	Ingress Protection IP Rating	1st Connector Orientation
BANNER ENGINEERING MQDC1-501.5RA	5 positions	Unshielded	Wire Leads	Female Sockets	Free Hanging (In-Line)	Round	Black	Polyvinyl Chloride (PVC)	1.5 ft	Standard	M12	Industrial Environments	All	Plug Right Angle	Dust Tight Waterproof	IP67	Keyed
BANNER ENGINEERING MQDC-WDSS-0430	4 positions	Unshielded	Wire Leads	Female Sockets	Free Hanging (In-Line)	Round	Black	Polyvinyl Chloride (PVC)	30 ft	Standard	M12	Industrial Environments	All	Plug	Dust Tight High Temp Water Jets Waterproof	IP69K	Keyed
BANNER ENGINEERING MQDC20-515	5 positions	Unshielded	Wire Leads	Female Sockets	Free Hanging (In-Line)	Round	Black	Polyvinyl Chloride (PVC)	15 ft	Standard	M12	Industrial Environments	All	Plug	Dust Tight Waterproof	IP67	Keyed
BANNER ENGINEERING MQDC-430-GYP	4 positions	Unshielded	Wire Leads	Female Sockets	Free Hanging (In-Line)	Round	Black	Polyvinyl Chloride (PVC)	32.8 ft	Standard	M12	Industrial Environments	All	Plug	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Keyed
BANNER ENGINEERING MQDC2S-850	8 positions	Shielded	Wire Leads	Female Sockets	Free Hanging (In-Line)	Round	Black	Polyvinyl Chloride (PVC)	50 ft	Standard	M12	Industrial Environments	All	Plug	Dust Tight Waterproof	IP67	Keyed
BANNER ENGINEERING MQDC-4B5G06SS
BANNER ENGINEERING MQDC-450	4 positions	Unshielded	Wire Leads	Female Sockets	Free Hanging (In-Line)	Round	Black	Polyvinyl Chloride (PVC)	50 ft	Standard	M12	Industrial Environments	All	Plug	Dust Tight Waterproof	IP67	Keyed
BANNER ENGINEERING MQDC1-515	5 positions	Unshielded	Wire Leads	Female Sockets	Free Hanging (In-Line)	Round	Black	Polyvinyl Chloride (PVC)	15 ft	Standard	M12	Industrial Environments	All	Plug	Dust Tight Waterproof	IP67	Keyed
BANNER ENGINEERING MQDC2S-830	8 positions	Shielded	Wire Leads	Female Sockets	Free Hanging (In-Line)	Round	Black	Polyvinyl Chloride (PVC)	30 ft	Standard	M12	Industrial Environments	All	Plug	Dust Tight Waterproof	IP67	Keyed
BANNER ENGINEERING MQDC2S-802	8 positions	Shielded	Wire Leads	Female Sockets	Free Hanging (In-Line)	Round	Black	Polyvinyl Chloride (PVC)	24 in	Standard	M12	Industrial Environments	All	Plug	Dust Tight Waterproof	IP67	Keyed
