280919-4
ActiveTE Connectivity Raychem Cable Protection

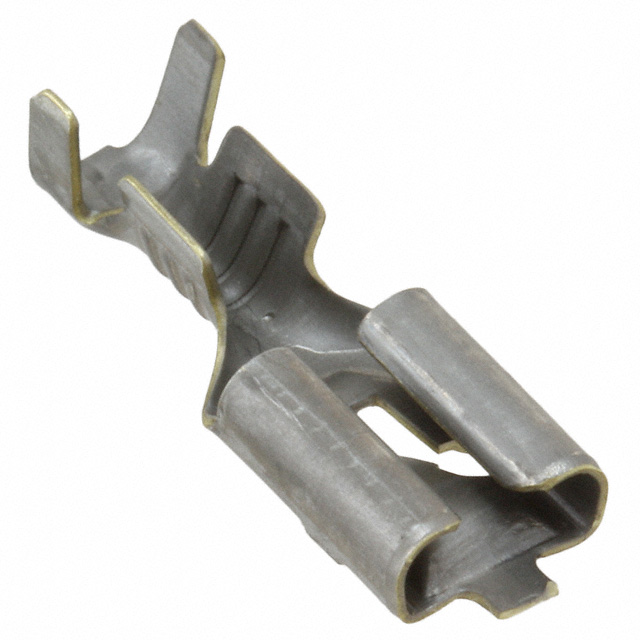

QUICK DISCONNECT TERMINAL, FASTIN-FASTON 187 SERIES, FEMALE QUICK DISCONNECT, 4.75MM X 0.81MM
Deep-Dive with AI
Search across all available documentation for this part.
280919-4
ActiveTE Connectivity Raychem Cable Protection
QUICK DISCONNECT TERMINAL, FASTIN-FASTON 187 SERIES, FEMALE QUICK DISCONNECT, 4.75MM X 0.81MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 280919-4 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 3.3 mm |
| Insulation Diameter [Max] [diameter] | 0.13 " |
| Insulation Diameter [Min] [diameter] | 0.091 in |
| Insulation Diameter [Min] [diameter] | 2.31 mm |
| Length - Overall [x] | 0.63 " |
| Length - Overall [x] | 16 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.252 in |
| Tab Length | 6.4 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 15 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.15 | |
| 10 | $ 0.13 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.11 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| 2500 | $ 0.09 | |||
| Tape & Reel (TR) | 8000 | $ 0.08 | ||
| 16000 | $ 0.08 | |||
| 24000 | $ 0.07 | |||
| 40000 | $ 0.07 | |||
| 56000 | $ 0.07 | |||
| 80000 | $ 0.07 | |||
Description
General part information
FASTIN-FASTON 187 Series
Quick Disconnect Receptacle, 20 – 15 AWG, .51 – 1.65 mm² Wire, 4.75 mm [.187 in] Tab Width, Straight, Phosphor Bronze, FASTIN-FASTON 187
