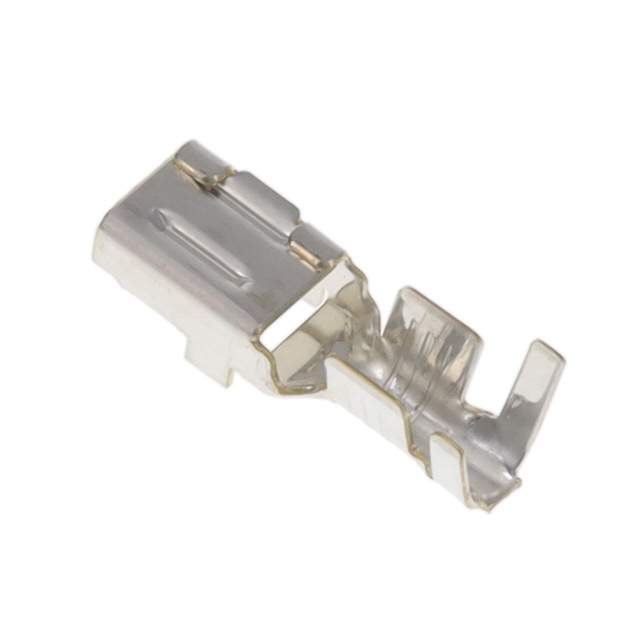

175042-1

Active

TE Connectivity Raychem Cable Protection

TERMINALS 187 SERIES REC CONTACT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet APPLICATION SPECIFICATION CRIMPING .187 SERIES TAB AND RECEPTCLE CONTACTS +3

175042-1

Active

TE Connectivity Raychem Cable Protection

TERMINALS 187 SERIES REC CONTACT

Deep-Dive with AI

DocumentsDatasheet APPLICATION SPECIFICATION CRIMPING .187 SERIES TAB AND RECEPTCLE CONTACTS +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	175042-1

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max]	4.06 mm
Insulation Diameter [Max]	0.16 in
Insulation Diameter [Min]	0.12 in
Insulation Diameter [Min]	3.05 mm
Length - Overall [x]	0.709 "
Length - Overall [x]	18 mm
Mounting Type	Free Hanging (In-Line)
Tab Length	8 mm
Tab Length	0.315 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	14 AWG
Wire Gauge [Min]	12 AWG

FASTIN-FASTON 187 Series

Part	Tab Thickness	Tab Thickness	Terminal Type	Tab Length	Tab Length	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Length - Overall [x]	Length - Overall [x]	Gender	Insulation	Contact Material	Contact Finish	Mounting Type	Tab Width	Tab Width	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Features	Note	For Use With/Related Products	For Use With/Related Products	Material	Style	Terminal Size	Terminal Size	Number of Positions	Color	Stacking Direction	Tab Length
TE Connectivity Raychem Cable Protection 280919-4	0.032 in	0.81 mm	Standard	0.252 in	6.4 mm	0.091 in	3.3 mm	2.31 mm	0.13 "	0.63 "	16 mm	Female	Non-Insulated	Phosphor Bronze	Tin	Free Hanging (In-Line)	4.75 mm	0.187 in	15 AWG	20 AWG	Crimp
TE Connectivity Raychem Cable Protection 175048-1	0.032 in	0.81 mm	Standard							1.051 in	26.7 mm	Male	Non-Insulated	Brass	Tin	Free Hanging (In-Line)	4.75 mm	0.187 in	12 AWG	14 AWG	Crimp	0.12 in	4.06 mm	3.05 mm	0.16 in	Serrated Termination
TE Connectivity Raychem Cable Protection 280919-2	0.032 in	0.81 mm	Standard	0.252 in	6.4 mm	0.091 in	3.3 mm	2.31 mm	0.13 "	0.63 "	16 mm	Female	Non-Insulated	Brass	Tin	Free Hanging (In-Line)	4.75 mm	0.187 in	15 AWG	20 AWG	Crimp
TE Connectivity Raychem Cable Protection 521381-1			Disconnect Quick Connect									Female Receptacle				Free Hanging (In-Line)											Contacts Not Included	4.75 mm	0.187 "	Akulon	Housing	0.187 "	4.75 mm	6	Black	Side to Side
TE Connectivity Raychem Cable Protection 175042-1	0.032 in	0.81 mm	Standard	8 mm						0.709 "	18 mm	Female	Non-Insulated	Brass	Tin	Free Hanging (In-Line)	4.75 mm	0.187 in	12 AWG	14 AWG	Crimp	0.12 in	4.06 mm	3.05 mm	0.16 in												0.315 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.24
		10	$ 0.20
		25	$ 0.19
		50	$ 0.18
		100	$ 0.17
		250	$ 0.16
		500	$ 0.15
		1000	$ 0.14
	Tape & Reel (TR)	2000	$ 0.10
		4000	$ 0.09
		6000	$ 0.08
		10000	$ 0.08
Sager	N/A	6000	$ 0.14

Description

General part information

FASTIN-FASTON 187 Series

Quick Disconnect Receptacle, 14 – 12 AWG, 2.1 – 3.31 mm² Wire, 4.75 mm [.187 in] Tab Width, Straight, Brass, Pre-Tin Plating, FASTIN-FASTON 187
