LM336Z-2.5/LFT1

Active

Texas Instruments

VOLTAGE REFERENCE DIODE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTO-220 Leadbend Options LM136-2.5 LM236-2.5 LM336-2.5V Reference Diode datasheet (Rev. F)+8

LM336Z-2.5/LFT1

Active

Texas Instruments

VOLTAGE REFERENCE DIODE

Deep-Dive with AI

DocumentsTO-220 Leadbend Options LM136-2.5 LM236-2.5 LM336-2.5V Reference Diode datasheet (Rev. F)+8

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LM336Z-2.5/LFT1	LM336 Series

Current - Cathode	400 µA	400 µA
Current - Cathode	-	600 µA
Current - Output	10 mA	10 - 20 mA
Mounting Type	Through Hole	Through Hole, Surface Mount
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Output Type	1.81 mOhm	1.81 mOhm

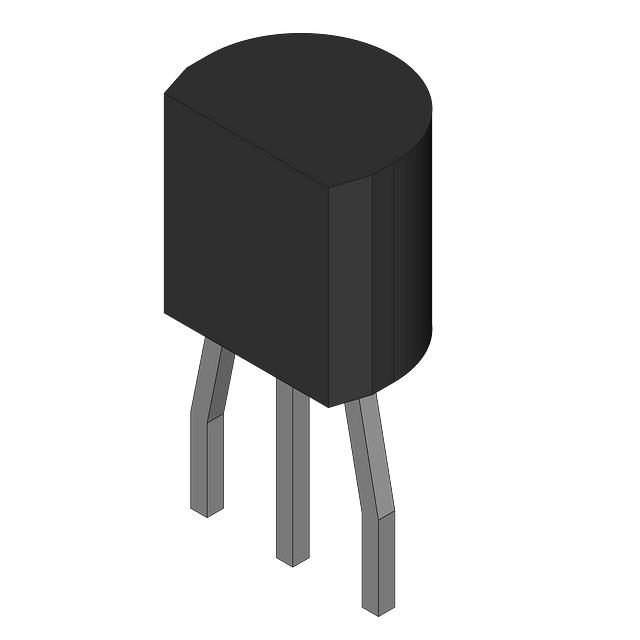

Package / Case	TO-226-3, TO-92-3	TO-226-3, TO-92-3, 8-SOIC, Die
Package / Case	-	3.9 mm
Package / Case	-	0.154 in
Reference Type	Shunt	Shunt
Supplier Device Package	TO-92-3	TO-92-3, 8-SOIC, Die
Tolerance	4 %	1 - 4 %
Voltage - Output (Min/Fixed)	2.49 V	2.49 - 5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	971	$ 0.31
	Cut Tape (CT)	1	$ 0.81
		10	$ 0.71
		25	$ 0.67
		100	$ 0.55
		250	$ 0.51
		500	$ 0.43
		1000	$ 0.35
	Tape & Reel (TR)	2000	$ 0.31
		6000	$ 0.29
		10000	$ 0.28
Texas Instruments	LARGE T&R	1	$ 0.53
		100	$ 0.41
		250	$ 0.30
		1000	$ 0.21

LM336 Series

VOLTAGE REFERENCE DIODE

Part	Package / Case	Voltage - Output (Min/Fixed)	Current - Output	Tolerance	Reference Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - Cathode	Output Type	Mounting Type	Package / Case [y]	Package / Case [x]	Current - Cathode [custom]
Texas Instruments LM336BZ-2.5/NOPB	TO-226-3, TO-92-3	2.49 V	10 mA	2 %	Shunt	TO-92-3	70 °C	0 °C	400 µA	1.81 mOhm	Through Hole
Texas Instruments LM336BZ-2.5/LFT1	TO-226-3, TO-92-3	2.49 V	10 mA	2 %	Shunt	TO-92-3	70 °C	0 °C	400 µA	1.81 mOhm	Through Hole
Texas Instruments LM336BLP-2-5	TO-226-3, TO-92-3	2.49 V	10 mA	2 %	Shunt	TO-92-3	70 °C	0 °C	400 µA	1.81 mOhm	Through Hole
Texas Instruments LM336BLPE3-2-5	TO-226-3, TO-92-3	2.49 V	10 mA	2 %	Shunt	TO-92-3	70 °C	0 °C	400 µA	1.81 mOhm	Through Hole
Texas Instruments LM336MX-2.5	8-SOIC	2.49 V	10 mA	4 %	Shunt	8-SOIC	70 °C	0 °C	400 µA	1.81 mOhm	Surface Mount	3.9 mm	0.154 in
Texas Instruments LM336BDR-2-5	8-SOIC	2.49 V	10 mA	2 %	Shunt	8-SOIC	70 °C	0 °C	400 µA	1.81 mOhm	Surface Mount	3.9 mm	0.154 in
Texas Instruments LM336Z-2.5/LFT1	TO-226-3, TO-92-3	2.49 V	10 mA	4 %	Shunt	TO-92-3	70 °C	0 °C	400 µA	1.81 mOhm	Through Hole
Texas Instruments LM336MX-2.5/NOPB	8-SOIC	2.49 V	10 mA	4 %	Shunt	8-SOIC	70 °C	0 °C	400 µA	1.81 mOhm	Surface Mount	3.9 mm	0.154 in
Texas Instruments LM336BM-2.5/NOPB	8-SOIC	2.49 V	10 mA	2 %	Shunt	8-SOIC	70 °C	0 °C	400 µA	1.81 mOhm	Surface Mount	3.9 mm	0.154 in
Texas Instruments LM336LPE3-2-5	TO-226-3, TO-92-3	2.49 V	10 mA	4 %	Shunt	TO-92-3	70 °C	0 °C	400 µA	1.81 mOhm	Through Hole
Texas Instruments LM336Z-5.0/NOPB	TO-226-3, TO-92-3	5 V	10 mA	2 %	Shunt	TO-92-3	70 °C	0 °C		1.81 mOhm	Through Hole			600 µA
Texas Instruments LM336LP-2-5	TO-226-3, TO-92-3	2.49 V	10 mA	4 %	Shunt	TO-92-3	70 °C	0 °C	400 µA	1.81 mOhm	Through Hole
Texas Instruments LM336MX-5.0/NOPB	8-SOIC	5 V	10 mA	2 %	Shunt	8-SOIC	70 °C	0 °C		1.81 mOhm	Surface Mount	3.9 mm	0.154 in	600 µA
Texas Instruments LM336BM-5.0	8-SOIC	5 V	10 mA	2 %	Shunt	8-SOIC	70 °C	0 °C		1.81 mOhm	Surface Mount	3.9 mm	0.154 in	600 µA
Texas Instruments LM336MX-5.0	8-SOIC	5 V	10 mA	2 %	Shunt	8-SOIC	70 °C	0 °C		1.81 mOhm	Surface Mount	3.9 mm	0.154 in	600 µA
Texas Instruments LM336LPR-2-5	TO-226-3, TO-92-3	2.49 V	10 mA	4 %	Shunt	TO-92-3	70 °C	0 °C	400 µA	1.81 mOhm	Through Hole
Texas Instruments LM336BZ-2.5/LFT3	TO-226-3, TO-92-3	2.49 V	10 mA	2 %	Shunt	TO-92-3	70 °C	0 °C	400 µA	1.81 mOhm	Through Hole
Texas Instruments LM336BD-2-5	8-SOIC	2.49 V	10 mA	2 %	Shunt	8-SOIC	70 °C	0 °C	400 µA	1.81 mOhm	Surface Mount	3.9 mm	0.154 in
Texas Instruments LM336Z-2.5/LFT3	TO-226-3, TO-92-3	2.49 V	10 mA	4 %	Shunt	TO-92-3	70 °C	0 °C	400 µA	1.81 mOhm	Through Hole
Texas Instruments LM336D-2-5	8-SOIC	2.49 V	10 mA	4 %	Shunt	8-SOIC	70 °C	0 °C	400 µA	1.81 mOhm	Surface Mount	3.9 mm	0.154 in
Texas Instruments LM336-5 MWC					Shunt
Texas Instruments LM336BMX-5.0/NOPB	8-SOIC	5 V	10 mA	2 %	Shunt	8-SOIC	70 °C	0 °C		1.81 mOhm	Surface Mount	3.9 mm	0.154 in	600 µA
Texas Instruments LM336M-2.5/NOPB	8-SOIC	2.49 V	10 mA	4 %	Shunt	8-SOIC	70 °C	0 °C	400 µA	1.81 mOhm	Surface Mount	3.9 mm	0.154 in
Texas Instruments LM336BMX-5.0	8-SOIC	5 V	10 mA	2 %	Shunt	8-SOIC	70 °C	0 °C		1.81 mOhm	Surface Mount	3.9 mm	0.154 in	600 µA
Texas Instruments LM336M-5.0	8-SOIC	5 V	10 mA	2 %	Shunt	8-SOIC	70 °C	0 °C		1.81 mOhm	Surface Mount	3.9 mm	0.154 in	600 µA
Texas Instruments LM336M-2.5	8-SOIC	2.49 V	10 mA	4 %	Shunt	8-SOIC	70 °C	0 °C	400 µA	1.81 mOhm	Surface Mount	3.9 mm	0.154 in
Texas Instruments LM336BMX-2.5	8-SOIC	2.49 V	10 mA	2 %	Shunt	8-SOIC	70 °C	0 °C	400 µA	1.81 mOhm	Surface Mount	3.9 mm	0.154 in
Texas Instruments LM336BZ-5.0/NOPB	TO-226-3, TO-92-3	5 V	10 mA	2 %	Shunt	TO-92-3	70 °C	0 °C		1.81 mOhm	Through Hole			600 µA
Texas Instruments LM336Z-2.5/NOPB	TO-226-3, TO-92-3	2.49 V	10 mA	4 %	Shunt	TO-92-3	70 °C	0 °C	400 µA	1.81 mOhm	Through Hole
Texas Instruments LM336BDG4-2-5	8-SOIC	2.49 V	10 mA	2 %	Shunt	8-SOIC	70 °C	0 °C	400 µA	1.81 mOhm	Surface Mount	3.9 mm	0.154 in
Texas Instruments LM336M-5.0/NOPB	8-SOIC	5 V	10 mA	2 %	Shunt	8-SOIC	70 °C	0 °C		1.81 mOhm	Surface Mount	3.9 mm	0.154 in	600 µA
Texas Instruments LM336BMX-2.5/NOPB	8-SOIC	2.49 V	10 mA	2 %	Shunt	8-SOIC	70 °C	0 °C	400 µA	1.81 mOhm	Surface Mount	3.9 mm	0.154 in
Texas Instruments LM336DR-2-5	8-SOIC	2.49 V	10 mA	4 %	Shunt	8-SOIC	70 °C	0 °C	400 µA	1.81 mOhm	Surface Mount	3.9 mm	0.154 in
Texas Instruments LM336LPRE3-2-5	TO-226-3, TO-92-3	2.49 V	10 mA	4 %	Shunt	TO-92-3	70 °C	0 °C	400 µA	1.81 mOhm	Through Hole
Texas Instruments LM336Z-2.5/LFT7	TO-226-3, TO-92-3	2.49 V	10 mA	4 %	Shunt	TO-92-3	70 °C	0 °C	400 µA	1.81 mOhm	Through Hole
Texas Instruments LM336BM-5.0/NOPB	8-SOIC	5 V	10 mA	2 %	Shunt	8-SOIC	70 °C	0 °C		1.81 mOhm	Surface Mount	3.9 mm	0.154 in	600 µA
Texas Instruments LM336-2.5 MDC	Die	2.49 V	20 mA	1 %	Shunt	Die	70 °C	0 °C		1.81 mOhm	Surface Mount
Texas Instruments LM336BLPR-2-5	TO-226-3, TO-92-3	2.49 V	10 mA	2 %	Shunt	TO-92-3	70 °C	0 °C	400 µA	1.81 mOhm	Through Hole

Description

General part information

LM336 Series

The LM136-2.5-N/LM236-2.5-N and LM336-2.5-N integrated circuits are precision 2.5V shunt regulator diodes. These monolithic IC voltage references operate as a low-temperature-coefficient 2.5V zener with 0.2Ω dynamic impedance. A third terminal on the LM136-2.5-N allows the reference voltage and temperature coefficient to be trimmed easily.

The LM136-2.5-N series is useful as a precision 2.5V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 2.5V make it convenient to obtain a stable reference from 5V logic supplies. Further, since the LM136-2.5-N operates as a shunt regulator, it can be used as either a positive or negative voltage reference.

The LM136-2.5-N is rated for operation over −55°C to +125°C while the LM236-2.5-N is rated over a −25°C to +85°C temperature range.
