1924101

Active

Phoenix Contact

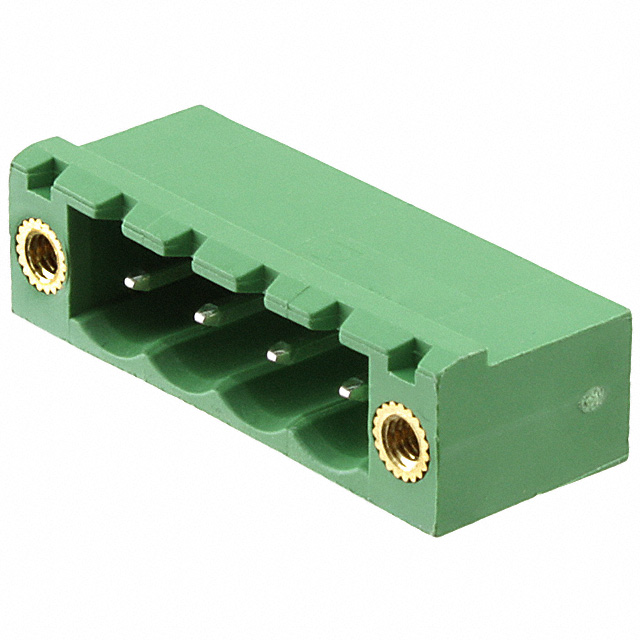

PLUGGABLE TERMINAL BLOCKS 4 POS 5.08MM PITCH THROUGH HOLE HEADER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1924101

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 4 POS 5.08MM PITCH THROUGH HOLE HEADER

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.42
		10	$ 3.33
		50	$ 3.11
		100	$ 2.86
		250	$ 2.64
		500	$ 2.53
		2500	$ 2.53
Newark	Each	1	$ 3.60
		25	$ 3.32
		50	$ 3.02
		100	$ 2.82
		250	$ 2.64
		500	$ 2.35
Sager	N/A	50	$ 3.55
		100	$ 3.42
		250	$ 3.29
		500	$ 3.18

Description

General part information

MSTB Series

Pluggable Terminal Blocks 20 Pos 5.08mm pitch Plug 24-12 AWG Screw

Documents

Technical documentation and resources

Datasheet

Document

Specification	1924101	MSTB Series

Color	Green	Green, Black, Gray, Yellow
Contact Mating Finish	Tin	Tin, Gold
Contact Tail Length	3.5 mm	2.9 - 3.5 mm
Contact Tail Length	0.138 in	0.114 - 0.138 in
Current - IEC	16 A	12 - 16 A
Current - UL	16 A	10 - 16 A
Features	Mating and Mounting Flange	Mating and Mounting Flange, Strain Relief, Retention Latches (Non-Wire Side), Mating Flange, Positions Stamped
Header Orientation	90°, Right Angle	90°, Right Angle
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Polybutylene Terephthalate (PBT)
Insulation Height	8.61 mm	8.61 - 15 mm
Insulation Height	0.339 "	0.339 - 0.591 in
Insulation Height	-	0.35 in
Insulation Height	-	8.89 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Free Hanging (In-Line), Through Hole
Number of Levels	1	1
Number of Positions	4	2 - 24
Number of Positions	-	16
Pitch [x]	0.2 in	0.197 - 0.2 in
Pitch [x]	5.08 mm	5 - 5.08 mm
Positions Per Level	4	2 - 20
Screw Size	-	M3, M2.5
Termination Style	Solder	Screw - Rising Cage Clamp, Solder, Screw - Pressure Clip
Torque - Screw	-	0.6 Nm
Torque - Screw	-	5.3 Lb-In
Torque - Screw	-	4.4 Lb-In
Torque - Screw	-	0.5 Nm
Type	Header, Male Pins, Shrouded (4 Side)	Plug, Female Sockets, Header, Male Pins, Shrouded (4 Side), Header
Voltage - IEC	400 V	250 - 630 V
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG	-	30 AWG
Wire Gauge or Range - AWG	-	12 AWG
Wire Gauge or Range - mm˛	-	0.2 mm˛
Wire Gauge or Range - mm˛	-	2.5 mm˛
Wire Gauge or Range - mm²	-	0.2 mm²
Wire Gauge or Range - mm²	-	2.5 mm²
Wire Strip Length	-	7 - 10 mm

Part

Wire Gauge or Range - mm² [Min]

Wire Gauge or Range - mm² [Max]

Insulation Height

Voltage - UL

Color

Housing Material

Pitch [x]

Torque - Screw [Max]

Torque - Screw [Min]

Wire Gauge or Range - AWG [Max]

Wire Gauge or Range - AWG [Min]

Number of Levels

Screw Size

Wire Strip Length

Termination Style

Positions Per Level

Current - UL

Type

Number of Positions

Mounting Type

Current - IEC

Contact Mating Finish

Voltage - IEC

Material Flammability Rating

Contact Tail Length

Features

Header Orientation

Wire Gauge or Range - mm˛ [Min]

Wire Gauge or Range - mm˛ [Max]

Number of Positions

Insulation Height [custom]

Phoenix Contact

1911910

0.2 mm²

2.5 mm²

0.591 in

15 mm

300 V

Green

Polyamide (PA), Nylon

5 mm

0.197 in

0.6 Nm

5.3 Lb-In

4.4 Lb-In

0.5 Nm

30 AWG

12 AWG

7 mm

Screw - Rising Cage Clamp

16 A

Plug, Female Sockets

Free Hanging (In-Line)

16 A

Tin

630 V

UL94 V-0

Phoenix Contact

1924101

0.339 "

8.61 mm

300 V

Green

Polyamide (PA), Nylon

5.08 mm

0.2 in

Solder

16 A

Header, Male Pins, Shrouded (4 Side)

Through Hole

16 A

Tin

400 V

UL94 V-0

3.5 mm

0.138 in

Mating and Mounting Flange

90°, Right Angle

Phoenix Contact

1759392

0.591 in

15 mm

300 V

Green

Polyamide (PA), Nylon

5 mm

0.197 in

0.6 Nm

5.3 Lb-In

4.4 Lb-In

0.5 Nm

30 AWG

12 AWG

7 mm

Screw - Rising Cage Clamp

10 A

Plug, Female Sockets

Free Hanging (In-Line)

12 A

Tin

630 V

UL94 V-0

Retention Latches (Non-Wire Side), Strain Relief

0.2 mm˛

2.5 mm˛

Phoenix Contact

1783478

300 V

Green

Polyamide (PA), Nylon

5 mm

0.197 in

Solder

Header

Through Hole

12 A

Tin

400 V

UL94 V-0

Phoenix Contact

1749315

0.591 in

15 mm

Black

5 mm

0.197 in

0.6 Nm

5.3 Lb-In

4.4 Lb-In

0.5 Nm

30 AWG

12 AWG

7 mm

Screw - Rising Cage Clamp

Plug, Female Sockets

Free Hanging (In-Line)

12 A

Gold

250 V

0.2 mm˛

2.5 mm˛

Phoenix Contact

1927564

300 V

Black

Polyamide (PA), Nylon

5.08 mm

0.2 in

Solder

Header, Male Pins, Shrouded (4 Side)

Through Hole

12 A

Tin

400 V

UL94 V-0

2.9 mm

0.114 in

Mating and Mounting Flange

90°, Right Angle

0.35 in

8.89 mm

Phoenix Contact

1912087

0.2 mm²

2.5 mm²

0.591 in

15 mm

300 V

Green

Polyamide (PA), Nylon

5 mm

0.197 in

0.6 Nm

5.3 Lb-In

4.4 Lb-In

0.5 Nm

30 AWG

12 AWG

7 mm

Screw - Rising Cage Clamp

16 A

Plug, Female Sockets

Free Hanging (In-Line)

16 A

Tin

630 V

UL94 V-0

Mating Flange

Phoenix Contact

1764235

0.2 mm²

2.5 mm²

300 V

Green

Polyamide (PA), Nylon

5.08 mm

0.2 in

0.6 Nm

5.3 Lb-In

4.4 Lb-In

0.5 Nm

30 AWG

12 AWG

7 mm

Screw - Rising Cage Clamp

10 A

Plug, Female Sockets

Free Hanging (In-Line)

12 A

Tin

630 V

UL94 V-0

Retention Latches (Non-Wire Side), Strain Relief

Phoenix Contact

1779631

0.2 mm²

2.5 mm²

0.591 in

15 mm

300 V

Green

Polyamide (PA), Nylon

5 mm

0.197 in

0.6 Nm

5.3 Lb-In

4.4 Lb-In

0.5 Nm

30 AWG

12 AWG

M2.5

10 mm

Screw - Pressure Clip

Plug, Female Sockets

Free Hanging (In-Line)

12 A

Tin

630 V

UL94 V-0

Phoenix Contact

1779534

0.591 in

15 mm

300 V

Green

Polyamide (PA), Nylon

5 mm

0.197 in

0.6 Nm

5.3 Lb-In

4.4 Lb-In

0.5 Nm

30 AWG

12 AWG

M2.5

10 mm

Screw - Pressure Clip

Plug, Female Sockets

Free Hanging (In-Line)

12 A

Tin

630 V

UL94 V-0

0.2 mm˛

2.5 mm˛

Part	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Insulation Height	Insulation Height	Voltage - UL	Color	Housing Material	Pitch [x]	Pitch [x]	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Screw Size	Wire Strip Length	Termination Style	Positions Per Level	Current - UL	Type	Number of Positions	Mounting Type	Current - IEC	Contact Mating Finish	Voltage - IEC	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Features	Header Orientation	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Number of Positions	Insulation Height [custom]	Insulation Height [custom]
Phoenix Contact 1911910	0.2 mm²	2.5 mm²	0.591 in	15 mm	300 V	Green	Polyamide (PA), Nylon	5 mm	0.197 in	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	1	M3	7 mm	Screw - Rising Cage Clamp	8	16 A	Plug, Female Sockets	8	Free Hanging (In-Line)	16 A	Tin	630 V	UL94 V-0
Phoenix Contact 1924101			0.339 "	8.61 mm	300 V	Green	Polyamide (PA), Nylon	5.08 mm	0.2 in							1			Solder	4	16 A	Header, Male Pins, Shrouded (4 Side)	4	Through Hole	16 A	Tin	400 V	UL94 V-0	3.5 mm	0.138 in	Mating and Mounting Flange	90°, Right Angle
Phoenix Contact 1759392			0.591 in	15 mm	300 V	Green	Polyamide (PA), Nylon	5 mm	0.197 in	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	1	M3	7 mm	Screw - Rising Cage Clamp	16	10 A	Plug, Female Sockets		Free Hanging (In-Line)	12 A	Tin	630 V	UL94 V-0			Retention Latches (Non-Wire Side), Strain Relief		0.2 mm˛	2.5 mm˛	16
Phoenix Contact 1783478					300 V	Green	Polyamide (PA), Nylon	5 mm	0.197 in							1			Solder	11		Header	11	Through Hole	12 A	Tin	400 V	UL94 V-0
Phoenix Contact 1749315			0.591 in	15 mm		Black		5 mm	0.197 in	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	1	M3	7 mm	Screw - Rising Cage Clamp	15		Plug, Female Sockets	15	Free Hanging (In-Line)	12 A	Gold	250 V						0.2 mm˛	2.5 mm˛
Phoenix Contact 1927564					300 V	Black	Polyamide (PA), Nylon	5.08 mm	0.2 in							1			Solder	2		Header, Male Pins, Shrouded (4 Side)	2	Through Hole	12 A	Tin	400 V	UL94 V-0	2.9 mm	0.114 in	Mating and Mounting Flange	90°, Right Angle				0.35 in	8.89 mm
Phoenix Contact 1912087	0.2 mm²	2.5 mm²	0.591 in	15 mm	300 V	Green	Polyamide (PA), Nylon	5 mm	0.197 in	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	1	M3	7 mm	Screw - Rising Cage Clamp	3	16 A	Plug, Female Sockets		Free Hanging (In-Line)	16 A	Tin	630 V	UL94 V-0			Mating Flange
Phoenix Contact 1764235	0.2 mm²	2.5 mm²			300 V	Green	Polyamide (PA), Nylon	5.08 mm	0.2 in	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	1	M3	7 mm	Screw - Rising Cage Clamp	8	10 A	Plug, Female Sockets	8	Free Hanging (In-Line)	12 A	Tin	630 V	UL94 V-0			Retention Latches (Non-Wire Side), Strain Relief
Phoenix Contact 1779631	0.2 mm²	2.5 mm²	0.591 in	15 mm	300 V	Green	Polyamide (PA), Nylon	5 mm	0.197 in	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	1	M2.5	10 mm	Screw - Pressure Clip			Plug, Female Sockets	24	Free Hanging (In-Line)	12 A	Tin	630 V	UL94 V-0
Phoenix Contact 1779534			0.591 in	15 mm	300 V	Green	Polyamide (PA), Nylon	5 mm	0.197 in	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	1	M2.5	10 mm	Screw - Pressure Clip	14		Plug, Female Sockets	14	Free Hanging (In-Line)	12 A	Tin	630 V	UL94 V-0					0.2 mm˛	2.5 mm˛
