1779631

Active

Phoenix Contact

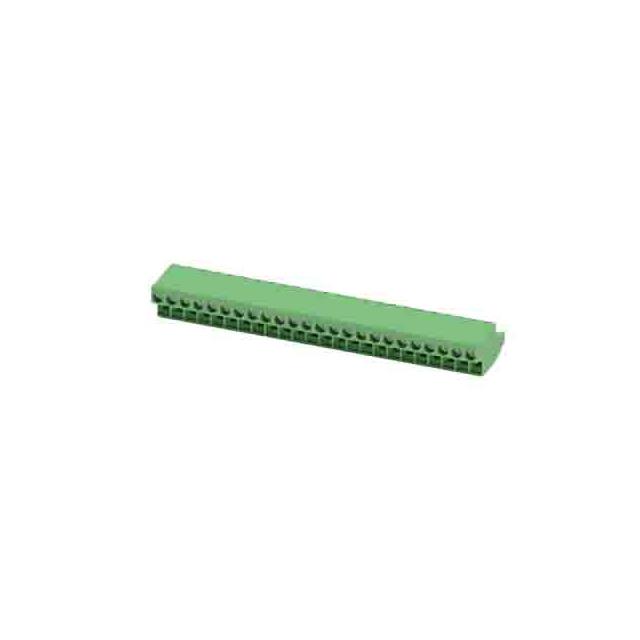

PLUGGABLE TERMINAL BLOCKS 24 POS 5MM PITCH PLUG 24-12 AWG SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1779631

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 24 POS 5MM PITCH PLUG 24-12 AWG SCREW

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 53.70
Sager	N/A	50	$ 60.95

Description

General part information

MSTB Series

Pluggable Terminal Blocks 20 Pos 5.08mm pitch Plug 24-12 AWG Screw

Documents

Technical documentation and resources

Datasheet

Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1779631	MSTB Series

Color	Green	Green, Black, Gray, Yellow
Contact Mating Finish	Tin	Tin, Gold
Contact Tail Length	-	2.9 - 3.5 mm
Contact Tail Length	-	0.114 - 0.138 in
Current - IEC	12 A	12 - 16 A
Current - UL	-	10 - 16 A
Features	-	Mating and Mounting Flange, Strain Relief, Retention Latches (Non-Wire Side), Mating Flange, Positions Stamped
Header Orientation	-	90°, Right Angle
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon, Polybutylene Terephthalate (PBT)
Insulation Height	0.591 in	0.339 - 0.591 in
Insulation Height	15 mm	8.61 - 15 mm
Insulation Height	-	0.35 in
Insulation Height	-	8.89 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Through Hole
Number of Levels	1	1
Number of Positions	24	2 - 24
Number of Positions	-	16
Pitch [x]	5 mm	5 - 5.08 mm
Pitch [x]	0.197 in	0.197 - 0.2 in
Positions Per Level	-	2 - 20
Screw Size	M2.5	M3, M2.5
Termination Style	Screw - Pressure Clip	Screw - Rising Cage Clamp, Solder, Screw - Pressure Clip
Torque - Screw [Max]	0.6 Nm	0.6 Nm
Torque - Screw [Max]	5.3 Lb-In	5.3 Lb-In
Torque - Screw [Min]	4.4 Lb-In	4.4 Lb-In
Torque - Screw [Min]	0.5 Nm	0.5 Nm
Type	Plug, Female Sockets	Plug, Female Sockets, Header, Male Pins, Shrouded (4 Side), Header
Voltage - IEC	630 V	250 - 630 V
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	0.2 mm˛
Wire Gauge or Range - mm˛	-	2.5 mm˛
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 mm²
Wire Strip Length	10 mm	7 - 10 mm

MSTB Series

Pluggable Terminal Blocks 20 Pos 5.08mm pitch Plug 24-12 AWG Screw

Part	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Insulation Height	Insulation Height	Voltage - UL	Color	Housing Material	Pitch [x]	Pitch [x]	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Screw Size	Wire Strip Length	Termination Style	Positions Per Level	Current - UL	Type	Number of Positions	Mounting Type	Current - IEC	Contact Mating Finish	Voltage - IEC	Material Flammability Rating	Contact Tail Length	Contact Tail Length	Features	Header Orientation	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Number of Positions	Insulation Height [custom]	Insulation Height [custom]
Phoenix Contact 1911910	0.2 mm²	2.5 mm²	0.591 in	15 mm	300 V	Green	Polyamide (PA), Nylon	5 mm	0.197 in	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	1	M3	7 mm	Screw - Rising Cage Clamp	8	16 A	Plug, Female Sockets	8	Free Hanging (In-Line)	16 A	Tin	630 V	UL94 V-0
Phoenix Contact 1924101			0.339 "	8.61 mm	300 V	Green	Polyamide (PA), Nylon	5.08 mm	0.2 in							1			Solder	4	16 A	Header, Male Pins, Shrouded (4 Side)	4	Through Hole	16 A	Tin	400 V	UL94 V-0	3.5 mm	0.138 in	Mating and Mounting Flange	90°, Right Angle
Phoenix Contact 1759392			0.591 in	15 mm	300 V	Green	Polyamide (PA), Nylon	5 mm	0.197 in	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	1	M3	7 mm	Screw - Rising Cage Clamp	16	10 A	Plug, Female Sockets		Free Hanging (In-Line)	12 A	Tin	630 V	UL94 V-0			Retention Latches (Non-Wire Side), Strain Relief		0.2 mm˛	2.5 mm˛	16
Phoenix Contact 1783478					300 V	Green	Polyamide (PA), Nylon	5 mm	0.197 in							1			Solder	11		Header	11	Through Hole	12 A	Tin	400 V	UL94 V-0
Phoenix Contact 1749315			0.591 in	15 mm		Black		5 mm	0.197 in	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	1	M3	7 mm	Screw - Rising Cage Clamp	15		Plug, Female Sockets	15	Free Hanging (In-Line)	12 A	Gold	250 V						0.2 mm˛	2.5 mm˛
Phoenix Contact 1927564					300 V	Black	Polyamide (PA), Nylon	5.08 mm	0.2 in							1			Solder	2		Header, Male Pins, Shrouded (4 Side)	2	Through Hole	12 A	Tin	400 V	UL94 V-0	2.9 mm	0.114 in	Mating and Mounting Flange	90°, Right Angle				0.35 in	8.89 mm
Phoenix Contact 1912087	0.2 mm²	2.5 mm²	0.591 in	15 mm	300 V	Green	Polyamide (PA), Nylon	5 mm	0.197 in	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	1	M3	7 mm	Screw - Rising Cage Clamp	3	16 A	Plug, Female Sockets		Free Hanging (In-Line)	16 A	Tin	630 V	UL94 V-0			Mating Flange
Phoenix Contact 1764235	0.2 mm²	2.5 mm²			300 V	Green	Polyamide (PA), Nylon	5.08 mm	0.2 in	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	1	M3	7 mm	Screw - Rising Cage Clamp	8	10 A	Plug, Female Sockets	8	Free Hanging (In-Line)	12 A	Tin	630 V	UL94 V-0			Retention Latches (Non-Wire Side), Strain Relief
Phoenix Contact 1779631	0.2 mm²	2.5 mm²	0.591 in	15 mm	300 V	Green	Polyamide (PA), Nylon	5 mm	0.197 in	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	1	M2.5	10 mm	Screw - Pressure Clip			Plug, Female Sockets	24	Free Hanging (In-Line)	12 A	Tin	630 V	UL94 V-0
Phoenix Contact 1779534			0.591 in	15 mm	300 V	Green	Polyamide (PA), Nylon	5 mm	0.197 in	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	30 AWG	12 AWG	1	M2.5	10 mm	Screw - Pressure Clip	14		Plug, Female Sockets	14	Free Hanging (In-Line)	12 A	Tin	630 V	UL94 V-0					0.2 mm˛	2.5 mm˛
