M3KKK-3636R

Active

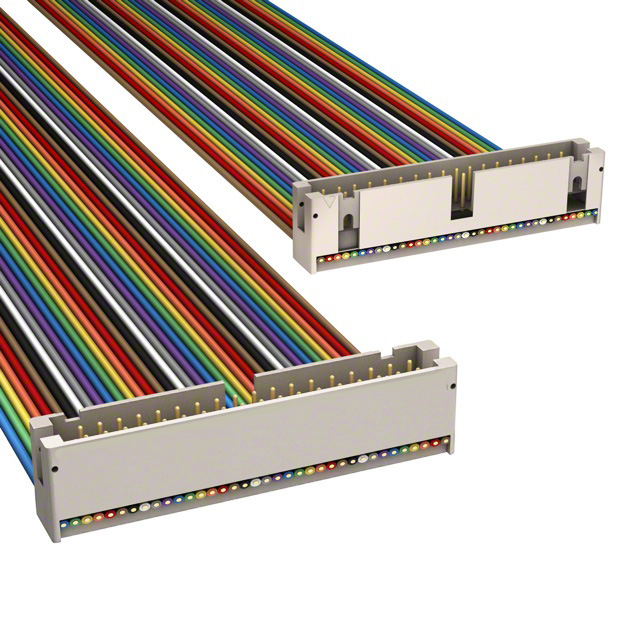

IDC CABLE - MPK36K/MC37M/MPK36K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

M3KKK-3636R

Active

IDC CABLE - MPK36K/MC37M/MPK36K

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.41
		10	$ 31.24
		25	$ 28.33
		50	$ 26.37
		100	$ 24.59
		250	$ 22.50

Description

General part information

M3KKK Series

36 Position Cable Assembly Rectangular Plug to Plug 3.00' (914.40mm)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

3302 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3KKK-3636R	M3KKK Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Plug to Plug	Plug to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key	Polarizing Key
Length	-	152.4 - 508 mm
Length	-	6 "
Length	-	0.5 '
Length	-	1.67 ft
Length [x]	3 ft	1.5 - 3.34 ft
Length [x]	914.4 mm	1.02 - 914.4 mm
Number of Positions	36	10 - 64
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3KKK Series

IDC CABLE - MPK24K/MC24G/MPK24K

Part	Connector Type	Cable Termination	Pitch - Cable	Pitch - Cable	Shielding	Number of Rows	Number of Positions	Contact Finish	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Features	Length [x]	Length [x]	Length	Color
3M M3KKK-2406J	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	24	Gold	152.4 mm	6 "	0.5 '	0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key
3M M3KKK-6018J	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	60	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	457.2 mm	1.5 ft
3M M3KKK-2618J	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	26	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	457.2 mm	1.5 ft
3M M3KKK-6420K	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	64	Gold	508 mm			0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key			1.67 ft	Multiple, Twisted Pair (Flat)
3M M3KKK-3618J	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	36	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	457.2 mm	1.5 ft
3M M3KKK-3636R	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	36	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	914.4 mm	3 ft		Multiple, Ribbon
3M M3KKK-3006R	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	30	Gold	152.4 mm	6 "	0.5 '	0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key				Multiple, Ribbon
3M M3KKK-2618R	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	26	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	457.2 mm	1.5 ft		Multiple, Ribbon
3M M3KKK-2620K	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	26	Gold	508 mm			0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key			1.67 ft	Multiple, Twisted Pair (Flat)
3M M3KKK-4036R	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	40	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	914.4 mm	3 ft		Multiple, Ribbon
