M3KKK-6018J

Active

IDC CABLE - MPK60K/MC60G/MPK60K

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet Datasheet +1

M3KKK-6018J

Active

IDC CABLE - MPK60K/MC60G/MPK60K

Deep-Dive with AI

Documents3365 Series Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.58
		10	$ 34.49
		25	$ 31.29
		50	$ 29.13
		100	$ 27.17
		250	$ 24.87

Description

General part information

M3KKK Series

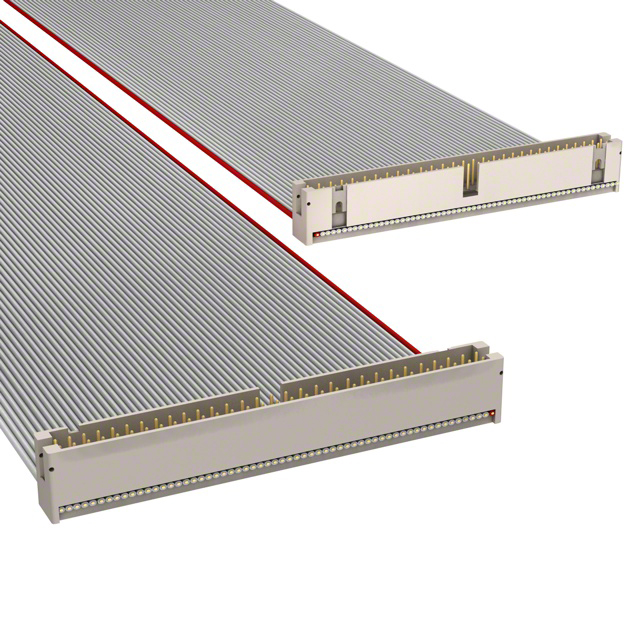

60 Position Cable Assembly Rectangular Plug to Plug 1.50' (457.20mm)

Documents

Technical documentation and resources

3365 Series Datasheet

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3KKK-6018J	M3KKK Series

Cable Termination	IDC	IDC
Color	-	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Plug to Plug	Plug to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key	Polarizing Key
Length	-	152.4 - 508 mm
Length	-	6 "
Length	-	0.5 '
Length	-	1.67 ft
Length [x]	457.2 mm	1.02 - 914.4 mm
Length [x]	1.5 ft	1.5 - 3.34 ft
Number of Positions	60	10 - 64
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3KKK Series

IDC CABLE - MPK24K/MC24G/MPK24K

Part	Connector Type	Cable Termination	Pitch - Cable	Pitch - Cable	Shielding	Number of Rows	Number of Positions	Contact Finish	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Features	Length [x]	Length [x]	Length	Color
3M M3KKK-2406J	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	24	Gold	152.4 mm	6 "	0.5 '	0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key
3M M3KKK-6018J	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	60	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	457.2 mm	1.5 ft
3M M3KKK-2618J	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	26	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	457.2 mm	1.5 ft
3M M3KKK-6420K	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	64	Gold	508 mm			0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key			1.67 ft	Multiple, Twisted Pair (Flat)
3M M3KKK-3618J	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	36	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	457.2 mm	1.5 ft
3M M3KKK-3636R	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	36	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	914.4 mm	3 ft		Multiple, Ribbon
3M M3KKK-3006R	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	30	Gold	152.4 mm	6 "	0.5 '	0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key				Multiple, Ribbon
3M M3KKK-2618R	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	26	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	457.2 mm	1.5 ft		Multiple, Ribbon
3M M3KKK-2620K	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	26	Gold	508 mm			0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key			1.67 ft	Multiple, Twisted Pair (Flat)
3M M3KKK-4036R	Plug to Plug	IDC	0.05 "	1.27 mm	Unshielded	2	40	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	914.4 mm	3 ft		Multiple, Ribbon
