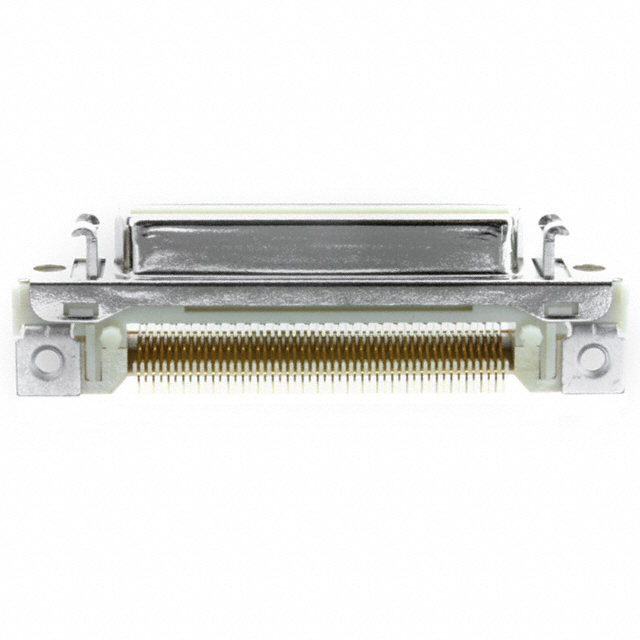

10250-1210PE - 10250-1210PE

10250-1210PE

Active
3M (TC)

D SUB CONNECTOR, MINI D (RIBBON CONNECTOR), RECEPTACLE, 102 SERIES, 50 CONTACTS, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMDR Series Qualification ReportMDR Selection Guide+3
10250-1210PE - 10250-1210PE

10250-1210PE

Active
3M (TC)

D SUB CONNECTOR, MINI D (RIBBON CONNECTOR), RECEPTACLE, 102 SERIES, 50 CONTACTS, SOLDER

Deep-Dive with AI

DocumentsMDR Series Qualification ReportMDR Selection Guide+3

Technical Specifications

Parameters and characteristics for this part

Specification10250-1210PE
Connector StyleOuter Shroud Contacts
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness0.51 µm
Contact Finish Thickness20 µin
FeaturesShielded, Board Guide
Flange FeatureHousing/Shell
Flange Feature2.6 M
Mounting TypeSurface Mount, Right Angle
Number of Positions50
Number of Rows2
TerminationSolder

10250 Series

PartFlange FeatureFlange FeatureFeaturesNumber of RowsContact Finish ThicknessContact Finish ThicknessConnector TypeNumber of PositionsContact FinishConnector StyleMounting TypeTermination
3M (TC)
10250-0210EC
Housing/Shell
2.6 M
Shielded
2
0.76 Ám
30 Áin
Receptacle
50
Gold
Outer Shroud Contacts
Free Hanging (In-Line)
IDC
3M (TC)
10250-55G3PC
Housing/Shell
2.6 M
Board Lock
Shielded
2
0.76 Ám
30 Áin
Receptacle
50
Gold
Outer Shroud Contacts
Panel Mount
Right Angle
Through Hole
Solder
3M (TC)
10250-55H3VC
Housing/Shell (4-40)
Latchblocks
Board Lock
Shielded
2
0.76 Ám
30 Áin
Receptacle
50
Gold
Outer Shroud Contacts
Panel Mount
Right Angle
Through Hole
Solder
3M (TC)
10250-52B2PL
3M (TC)
10250-52A2PL
3M (TC)
10250-R21TS
Housing/Shell
2.6 M
Shielded
2
0.76 Ám
30 Áin
Receptacle
50
Gold
Outer Shroud Contacts
Panel Mount
Through Hole
Press-Fit
3M (TC)
10250-52B2VE
Housing/Shell
2.6 M
Board Lock
Shielded
2
0.51 µm
20 µin
Receptacle
50
Gold
Outer Shroud Contacts
Through Hole
Right Angle
Solder
3M (TC)
10250-55F3PC
Housing/Shell
2.6 M
Board Lock
Shielded
2
0.76 Ám
30 Áin
Receptacle
50
Gold
Outer Shroud Contacts
Panel Mount
Right Angle
Through Hole
Solder
3M (TC)
10250-6212PL
Housing/Shell (M2.5)
Latchblocks
Shielded
2
0.2 µm
7.87 µin
Receptacle
50
Gold
Outer Shroud Contacts
Panel Mount
Through Hole
Solder
3M (TC)
10250-1210PE
Housing/Shell
2.6 M
Board Guide
Shielded
2
0.51 µm
20 µin
Receptacle
50
Gold
Outer Shroud Contacts
Surface Mount
Right Angle
Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 18.76
10$ 14.44
25$ 13.07
50$ 12.14
100$ 11.29
250$ 10.30
500$ 9.63
1000$ 9.03
NewarkEach 100$ 12.11
250$ 11.53
500$ 10.80
1000$ 9.85

Description

General part information

10250 Series

50 Position Receptacle Connector Surface Mount, Right Angle Solder
