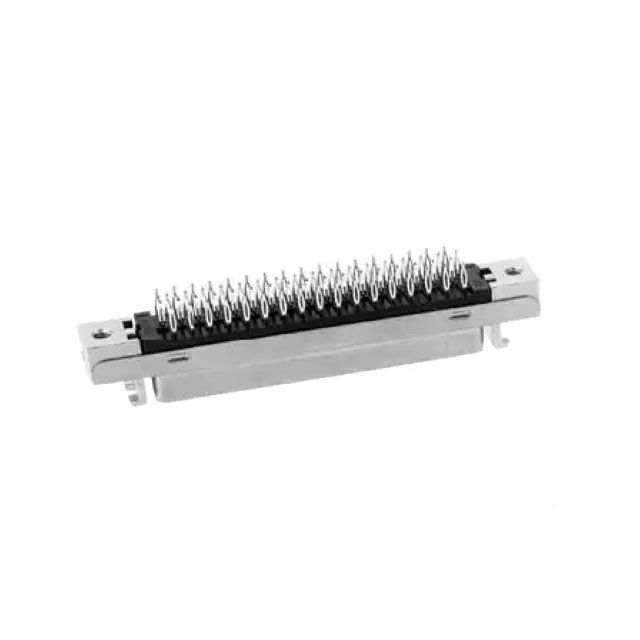

10250-R21TS - 10250-R21TS

10250-R21TS

Active
3M (TC)

CONN MINI D RIBBON RCP 50 POS 2.54MM PRESS FIT ST THRU-HOLE 50 TERMINAL 1 PORT BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMDR Series Qualification ReportInterconnect Catalog+3
10250-R21TS - 10250-R21TS

10250-R21TS

Active
3M (TC)

CONN MINI D RIBBON RCP 50 POS 2.54MM PRESS FIT ST THRU-HOLE 50 TERMINAL 1 PORT BOX

Deep-Dive with AI

DocumentsMDR Series Qualification ReportInterconnect Catalog+3

Technical Specifications

Parameters and characteristics for this part

Specification10250-R21TS
Connector StyleOuter Shroud Contacts
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
FeaturesShielded
Flange FeatureHousing/Shell
Flange Feature2.6 M
Mounting TypeThrough Hole, Panel Mount
Number of Positions50
Number of Rows2
TerminationPress-Fit

10250 Series

PartFlange FeatureFlange FeatureFeaturesNumber of RowsContact Finish ThicknessContact Finish ThicknessConnector TypeNumber of PositionsContact FinishConnector StyleMounting TypeTermination
3M (TC)
10250-0210EC
Housing/Shell
2.6 M
Shielded
2
0.76 Ám
30 Áin
Receptacle
50
Gold
Outer Shroud Contacts
Free Hanging (In-Line)
IDC
3M (TC)
10250-55G3PC
Housing/Shell
2.6 M
Board Lock
Shielded
2
0.76 Ám
30 Áin
Receptacle
50
Gold
Outer Shroud Contacts
Panel Mount
Right Angle
Through Hole
Solder
3M (TC)
10250-55H3VC
Housing/Shell (4-40)
Latchblocks
Board Lock
Shielded
2
0.76 Ám
30 Áin
Receptacle
50
Gold
Outer Shroud Contacts
Panel Mount
Right Angle
Through Hole
Solder
3M (TC)
10250-52B2PL
3M (TC)
10250-52A2PL
3M (TC)
10250-R21TS
Housing/Shell
2.6 M
Shielded
2
0.76 Ám
30 Áin
Receptacle
50
Gold
Outer Shroud Contacts
Panel Mount
Through Hole
Press-Fit
3M (TC)
10250-52B2VE
Housing/Shell
2.6 M
Board Lock
Shielded
2
0.51 µm
20 µin
Receptacle
50
Gold
Outer Shroud Contacts
Through Hole
Right Angle
Solder
3M (TC)
10250-55F3PC
Housing/Shell
2.6 M
Board Lock
Shielded
2
0.76 Ám
30 Áin
Receptacle
50
Gold
Outer Shroud Contacts
Panel Mount
Right Angle
Through Hole
Solder
3M (TC)
10250-6212PL
Housing/Shell (M2.5)
Latchblocks
Shielded
2
0.2 µm
7.87 µin
Receptacle
50
Gold
Outer Shroud Contacts
Panel Mount
Through Hole
Solder
3M (TC)
10250-1210PE
Housing/Shell
2.6 M
Board Guide
Shielded
2
0.51 µm
20 µin
Receptacle
50
Gold
Outer Shroud Contacts
Surface Mount
Right Angle
Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
ArrowN/A 4$ 15.81
10$ 15.13
25$ 15.10
DigikeyBox 1$ 14.37
10$ 12.21
25$ 11.45
50$ 10.90
100$ 10.38
300$ 9.61
500$ 9.27
1000$ 8.82
NewarkEach 100$ 10.78
200$ 10.43
500$ 9.94
1000$ 9.52
2000$ 9.23

Description

General part information

10250 Series

50 Position Receptacle Connector Panel Mount, Through Hole Press-Fit
