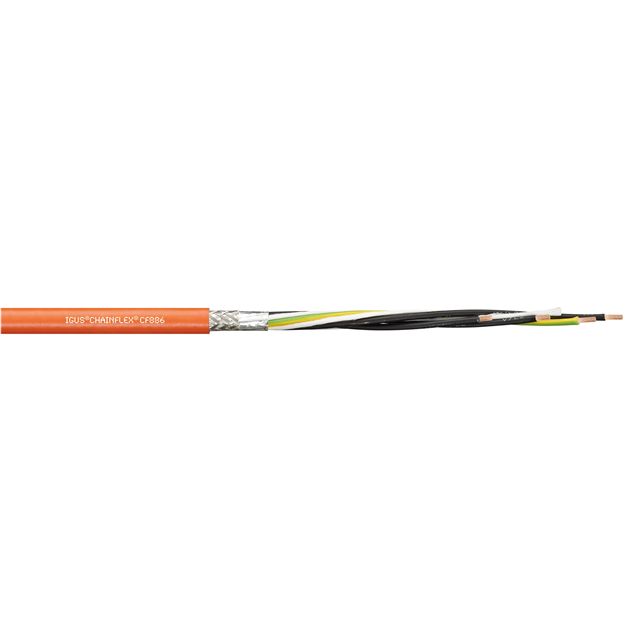

CF886-160-01

Active

Igus

HOOK-UP 6AWG 600V ORANGE 1=1FT

Search across all available documentation for this part.

Active

Igus

HOOK-UP 6AWG 600V ORANGE 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	CF886-160-01

Cable Type	Hook-Up
Conductor Material	Copper, Bare
Jacket (Insulation) Diameter [diameter]	11.51 mm
Jacket (Insulation) Diameter [diameter]	0.453 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Orange
Length	Enter Number of Feet in Order Quantity
Ratings	UL Style 2570
Voltage	600 V
Wire Gauge	6 AWG

Part	Conductor Insulation	Features	Cable Type	Shield Coverage	Shield Material	Spool Size	Spool Size	Conductor Material	Jacket (Insulation) Material	Jacket Color	Shield Type	Number of Conductors	Length	Voltage	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Jacket (Insulation) Diameter [diameter]	Shield Coverage
Igus CF886-160-04	Thermoplastic Elastomer (TPE)	Flame Retardant	Multi-Conductor	60 %	Copper Tinned	1000 ft	304.8 m	Copper Bare	Poly-Vinyl Chloride (PVC)	Orange	Braid	4	Enter Number of Feet in Order Quantity	1000 V	6 AWG	0.827 in	21.01 mm	UL Style 10107
Igus CF886-700-01			Hook-Up					Copper Bare	Poly-Vinyl Chloride (PVC)	Orange			Enter Number of Feet in Order Quantity	600 V			0.768 in	UL Style 2570	19.51 mm
Igus CF886-160-01			Hook-Up					Copper Bare	Poly-Vinyl Chloride (PVC)	Orange			Enter Number of Feet in Order Quantity	600 V	6 AWG	0.453 "	11.51 mm	UL Style 2570
Igus CF886-60-04	Thermoplastic Elastomer (TPE)	Flame Retardant	Multi-Conductor		Aluminum Copper Tinned	1000 ft	304.8 m	Copper Bare	Poly-Vinyl Chloride (PVC)	Orange	Braid Foil	4	Enter Number of Feet in Order Quantity	1000 V	10 AWG	0.571 in	14.5 mm	UL Style 10107		100% 60%
Igus CF886-40-04	Thermoplastic Elastomer (TPE)	Flame Retardant	Multi-Conductor		Aluminum Copper Tinned	1000 ft	304.8 m	Copper Bare	Poly-Vinyl Chloride (PVC)	Orange	Braid Foil	4	Enter Number of Feet in Order Quantity	1000 V	12 AWG	0.512 in	13.01 mm	UL Style 10107		100% 60%

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 AWG Hook-Up Wire Orange 600V Enter Number of Feet in Order Quantity
