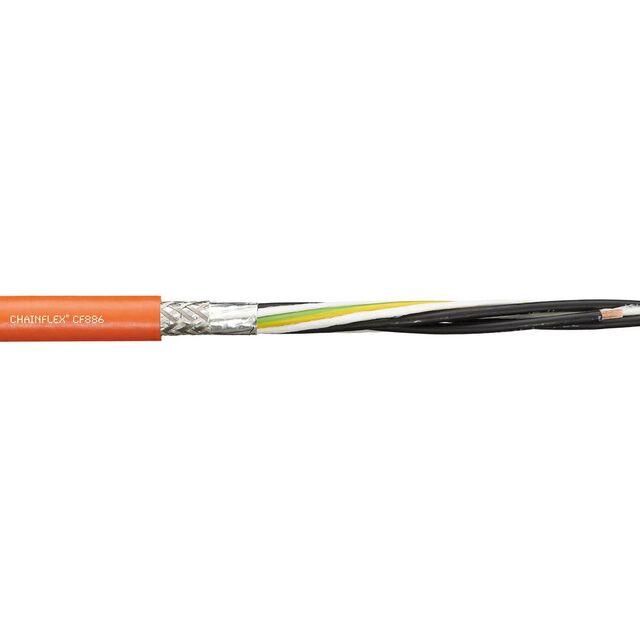

CF886-40-04
ActiveIgus
PVC4C/12AWG MOTOR CBL 1KV FEET
Deep-Dive with AI
Search across all available documentation for this part.
CF886-40-04
ActiveIgus
PVC4C/12AWG MOTOR CBL 1KV FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CF886-40-04 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Thermoplastic Elastomer (TPE) |
| Conductor Material | Copper, Bare |
| Features | Flame Retardant |
| Jacket (Insulation) Diameter [diameter] | 13.01 mm |
| Jacket (Insulation) Diameter [diameter] | 0.512 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Orange |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 |
| Ratings | UL Style 10107 |
| Shield Coverage | 60%, 100% |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Spool Size | 1000 ft |
| Spool Size | 304.8 m |
| Voltage | 1000 V |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 7.63 | |
| 2 | $ 7.26 | |||
| 3 | $ 7.06 | |||
| 5 | $ 6.81 | |||
| 7 | $ 6.65 | |||
| 10 | $ 6.49 | |||
| 25 | $ 6.07 | |||
| 50 | $ 5.78 | |||
| 100 | $ 5.50 | |||
Description
General part information
CF886 Series
4 Conductor Multi-Conductor Cable Orange 12 AWG Foil, Braid Enter Number of Feet in Order Quantity
Documents
Technical documentation and resources
No documents available
