177-025-112-161

Obsolete

MH Connectors

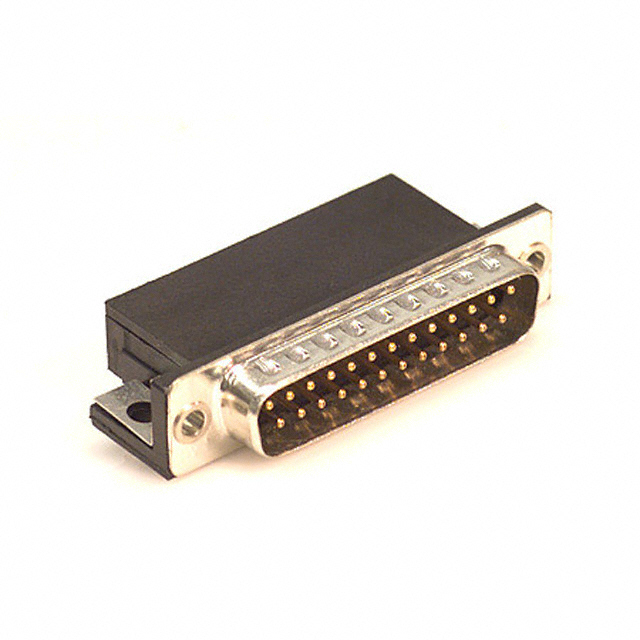

CONN D-SUB PLUG 25POS R/A SLDR

Search across all available documentation for this part.

Obsolete

MH Connectors

CONN D-SUB PLUG 25POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	177-025-112-161

Backset Spacing	0.59 "
Backset Spacing	14.99 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyester, Glass Filled
Features	Grounding Indents, Ground Strap
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Tin Plated, Metal
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

Part	Contact Material	Material Flammability Rating	Contact Finish Thickness	Features	Dielectric Material	Color	Shell Material, Finish	Connector Style	Contact Type	Termination	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	Backset Spacing	Backset Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Mounting Type	Connector Type	Number of Rows
MH Connectors 177-025-212-381	Phosphor Bronze	UL94 V-0	Flash	Board Lock Ground Strap	Polyester Glass Filled	Black	Metal Tin Plated	D-Sub	Signal	Solder	Gold	B DB	3	5 A	0.59 "	14.99 mm	105 ░C	-55 °C	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	2
MH Connectors 177-025-212-181	Phosphor Bronze	UL94 V-0	Flash	Ground Strap	Polyester Glass Filled	Black	Metal Tin Plated	D-Sub	Signal	Solder	Gold	B DB	3	5 A	0.59 "	14.99 mm	105 ░C	-55 °C	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	2
MH Connectors 177-025-112-161	Phosphor Bronze	UL94 V-0	Flash	Ground Strap Grounding Indents	Polyester Glass Filled	Black	Metal Tin Plated	D-Sub	Signal	Solder	Gold	B DB	3	5 A	0.59 "	14.99 mm	105 ░C	-55 °C	Housing/Shell (Unthreaded)	Panel Mount Right Angle Through Hole	Male Pins Plug	2
MH Connectors 177-025-212-371	Phosphor Bronze	UL94 V-0	Flash	Board Lock Ground Strap	Polyester Glass Filled	Black	Metal Tin Plated	D-Sub	Signal	Solder	Gold	B DB	3	5 A	0.59 "	14.99 mm	105 ░C	-55 °C	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

25 Position D-Sub Plug, Male Pins Connector

Technical documentation and resources
