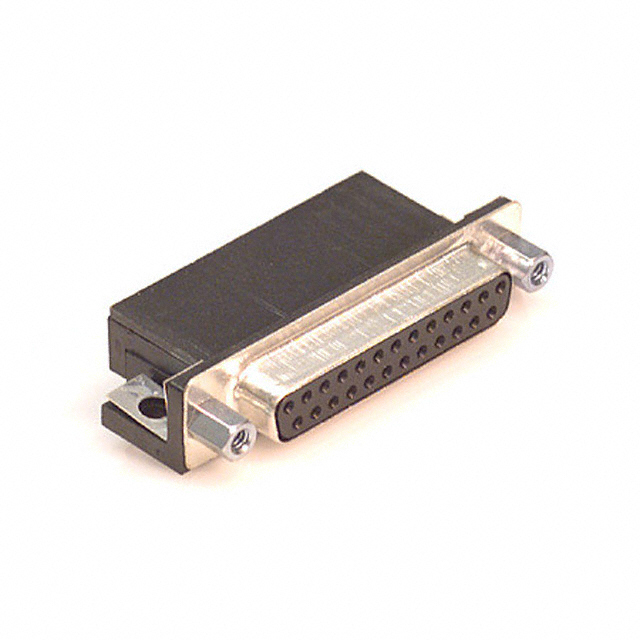

177-025-212-181
ObsoleteMH Connectors
CONN D-SUB RCPT 25POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
177-025-212-181
ObsoleteMH Connectors
CONN D-SUB RCPT 25POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 177-025-212-181 |
|---|---|
| Backset Spacing | 0.59 " |
| Backset Spacing | 14.99 mm |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyester, Glass Filled |
| Features | Ground Strap |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Tin Plated, Metal |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
177-025 Series
| Part | Contact Material | Material Flammability Rating | Contact Finish Thickness | Features | Dielectric Material | Color | Shell Material, Finish | Connector Style | Contact Type | Termination | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Backset Spacing | Backset Spacing | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Mounting Type | Connector Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Phosphor Bronze | UL94 V-0 | Flash | Board Lock Ground Strap | Polyester Glass Filled | Black | Metal Tin Plated | D-Sub | Signal | Solder | Gold | B DB | 3 | 5 A | 0.59 " | 14.99 mm | 105 ░C | -55 °C | Female Screwlock (4-40) Mating Side | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 2 |
MH Connectors | Phosphor Bronze | UL94 V-0 | Flash | Ground Strap | Polyester Glass Filled | Black | Metal Tin Plated | D-Sub | Signal | Solder | Gold | B DB | 3 | 5 A | 0.59 " | 14.99 mm | 105 ░C | -55 °C | Female Screwlock (4-40) Mating Side | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 2 |
MH Connectors | Phosphor Bronze | UL94 V-0 | Flash | Ground Strap Grounding Indents | Polyester Glass Filled | Black | Metal Tin Plated | D-Sub | Signal | Solder | Gold | B DB | 3 | 5 A | 0.59 " | 14.99 mm | 105 ░C | -55 °C | Housing/Shell (Unthreaded) | Panel Mount Right Angle Through Hole | Male Pins Plug | 2 |
MH Connectors | Phosphor Bronze | UL94 V-0 | Flash | Board Lock Ground Strap | Polyester Glass Filled | Black | Metal Tin Plated | D-Sub | Signal | Solder | Gold | B DB | 3 | 5 A | 0.59 " | 14.99 mm | 105 ░C | -55 °C | Housing/Shell (4-40) | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
177-025 Series
25 Position D-Sub Receptacle, Female Sockets Connector
