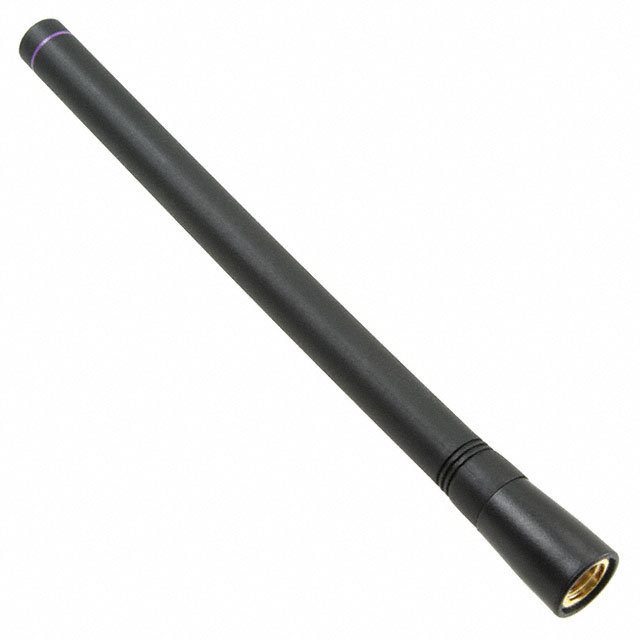

ANT-1.4-CW-HW

Active

TE Connectivity Linx

RF ANT 1.4GHZ WHIP STR RP-SMA ML

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF ANT 1.4GHZ WHIP STR RP-SMA ML

Technical Specifications

Parameters and characteristics commom to parts in this series

RF ANT 1.4GHZ WHIP TILT RP-SMA

Part	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Termination	Number of Bands	Frequency (Center/Band)	Gain	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Height (Max) [Max]	Height (Max) [Max]	VSWR	Mounting Type
TE Connectivity Linx ANT-1.4-CW-HWR-RPS	2 GHz	1 GHz	UHF	RP-SMA Male	1	1.4 GHz	2.4 dBi	1.45 GHz	1.35 GHz	Tilt, Whip	142 mm	5.591 in	2	Connector Mount
TE Connectivity Linx ANT-1.4-CW-HWR-SMA	2 GHz	1 GHz	UHF		1	1.4 GHz	2.4 dBi	1.45 GHz	1.35 GHz	Tilt, Whip	142 mm	5.591 in	2	Connector Mount
TE Connectivity Linx ANT-1.4-CW-HW-SMA	2 GHz	1 GHz	UHF		1	1.4 GHz	0.7 dBi	1.45 GHz	1.35 GHz	Whip, Straight	120 mm	4.724 "	2	Connector Mount
TE Connectivity Linx ANT-1.4-CW-HW	2 GHz	1 GHz	UHF	RP-SMA Male	1	1.4 GHz	0.7 dBi	1.45 GHz	1.35 GHz	Whip, Straight	120 mm	4.724 "	2	Connector Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	500	$ 9.85

General part information

RF ANTENNA Whip, Straight RP-SMA Male Connector Mount
