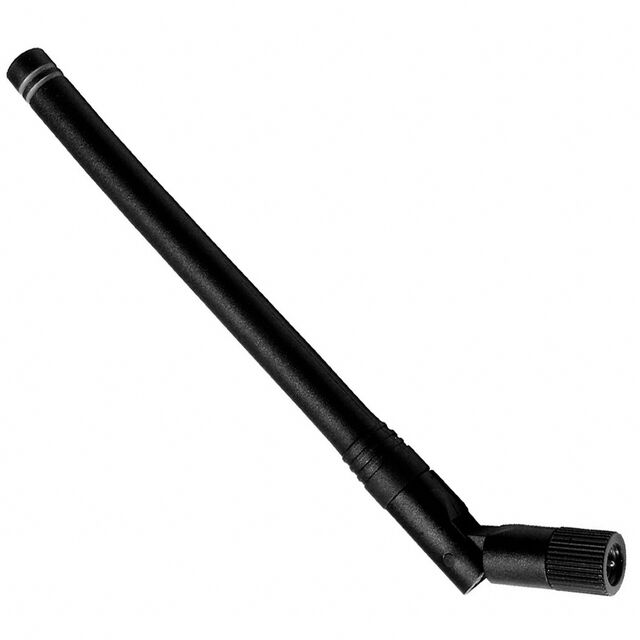

ANT-1.4-CW-HW-SMA

Active

TE Connectivity Linx

RF ANT 1.4GHZ WHIP STR SMA MALE

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF ANT 1.4GHZ WHIP STR SMA MALE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 9.85

General part information

RF ANTENNA Whip, Straight SMA Male Connector Mount

Technical documentation and resources

Part	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Termination	Number of Bands	Frequency (Center/Band)	Gain	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Height (Max) [Max]	Height (Max) [Max]	VSWR	Mounting Type
TE Connectivity Linx ANT-1.4-CW-HWR-RPS	2 GHz	1 GHz	UHF	RP-SMA Male	1	1.4 GHz	2.4 dBi	1.45 GHz	1.35 GHz	Tilt, Whip	142 mm	5.591 in	2	Connector Mount
TE Connectivity Linx ANT-1.4-CW-HWR-SMA	2 GHz	1 GHz	UHF		1	1.4 GHz	2.4 dBi	1.45 GHz	1.35 GHz	Tilt, Whip	142 mm	5.591 in	2	Connector Mount
TE Connectivity Linx ANT-1.4-CW-HW-SMA	2 GHz	1 GHz	UHF		1	1.4 GHz	0.7 dBi	1.45 GHz	1.35 GHz	Whip, Straight	120 mm	4.724 "	2	Connector Mount
TE Connectivity Linx ANT-1.4-CW-HW	2 GHz	1 GHz	UHF	RP-SMA Male	1	1.4 GHz	0.7 dBi	1.45 GHz	1.35 GHz	Whip, Straight	120 mm	4.724 "	2	Connector Mount
