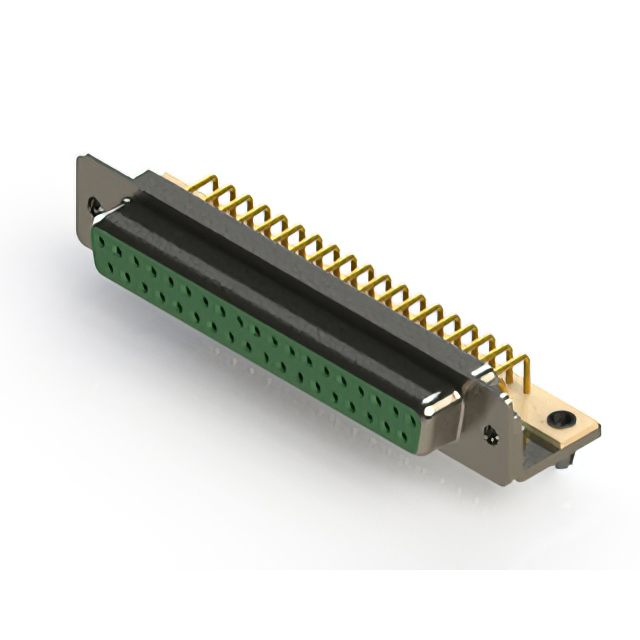

630-M37-240-GN3

Active

EDAC Inc.

630M SERIES RIGHT ANGLE D-SUB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-M37-240-GN3

Active

EDAC Inc.

630M SERIES RIGHT ANGLE D-SUB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-M37-240-GN3

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Green
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

630-M37 Series

Part	Features	Color	Termination	Shell Material, Finish	Flange Feature	Material Flammability Rating	Contact Material	Contact Finish	Number of Positions	Current Rating (Amps)	Contact Finish Thickness	Contact Type	Dielectric Material	Connector Style	Backset Spacing	Backset Spacing	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mounting Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 630-M37-240-GN3	Board Lock Mounting Brackets Shielded	Green	Solder	Nickel Plated Steel	Housing/Shell (4-40)	UL94 V-0	Copper Alloy	Gold	37	5 A	Flash	Signal	Polyamide (PA6T) Nylon 6T	D-Sub	9.4 mm	0.37 in	4 (DC C)	-55 °C	125 °C	Receptacle Female Sockets	Through Hole Right Angle	2
EDAC Inc. 630-M37-340-BN4	Mounting Brackets Shielded	Black	Solder	Nickel Plated Steel	Housing/Shell (4-40)	UL94 V-0	Copper Alloy	Gold	37	5 A		Signal	Polyamide (PA6T) Nylon 6T	D-Sub	9.4 mm	0.37 in	4 (DC C)	-55 °C	125 °C	Receptacle Female Sockets	Through Hole Right Angle	2	15 µin	0.38 µm
EDAC Inc. 630-M37-240-BT4	Mounting Brackets Shielded	Black	Solder		Housing/Shell (4-40)	UL94 V-0	Copper Alloy	Gold	37	5 A	Flash	Signal	Polyamide (PA6T) Nylon 6T	D-Sub	9.4 mm	0.37 in	4 (DC C)	-55 °C	125 °C	Receptacle Female Sockets	Through Hole Right Angle	2
EDAC Inc. 630-M37-640-GN2	Shielded	Green	Solder	Nickel Plated Steel	Housing/Shell (Unthreaded)	UL94 V-0	Copper Alloy	Gold	37	5 A		Signal	Polyamide (PA6T) Nylon 6T	D-Sub	9.4 mm	0.37 in	4 (DC C)	-55 °C	125 °C	Receptacle Female Sockets	Through Hole Right Angle	2	30 Áin	0.76 Ám
EDAC Inc. 630-M37-340-LN4	Mounting Brackets Shielded	Blue	Solder	Nickel Plated Steel	Housing/Shell (4-40)	UL94 V-0	Copper Alloy	Gold	37	5 A		Signal	Polyamide (PA6T) Nylon 6T	D-Sub	9.4 mm	0.37 in	4 (DC C)	-55 °C	125 °C	Receptacle Female Sockets	Through Hole Right Angle	2	15 µin	0.38 µm
EDAC Inc. 630-M37-240-LT3	Board Lock Mounting Brackets Shielded	Blue	Solder		Housing/Shell (4-40)	UL94 V-0	Copper Alloy	Gold	37	5 A	Flash	Signal	Polyamide (PA6T) Nylon 6T	D-Sub	9.4 mm	0.37 in	4 (DC C)	-55 °C	125 °C	Receptacle Female Sockets	Through Hole Right Angle	2
EDAC Inc. 630-M37-340-GT1	Shielded	Green	Solder		Housing/Shell (Unthreaded)	UL94 V-0	Copper Alloy	Gold	37	5 A		Signal	Polyamide (PA6T) Nylon 6T	D-Sub	9.4 mm	0.37 in	4 (DC C)	-55 °C	125 °C	Receptacle Female Sockets	Through Hole Right Angle	2	15 µin	0.38 µm
EDAC Inc. 630-M37-240-BN3	Board Lock Mounting Brackets Shielded	Black	Solder	Nickel Plated Steel	Housing/Shell (4-40)	UL94 V-0	Copper Alloy	Gold	37	5 A	Flash	Signal	Polyamide (PA6T) Nylon 6T	D-Sub	9.4 mm	0.37 in	4 (DC C)	-55 °C	125 °C	Receptacle Female Sockets	Through Hole Right Angle	2
EDAC Inc. 630-M37-640-BT6	Mounting Brackets Shielded	Black	Solder		4-40	UL94 V-0	Copper Alloy	Gold	37	5 A		Signal	Polyamide (PA6T) Nylon 6T	D-Sub	9.4 mm	0.37 in	4 (DC C)	-55 °C	125 °C	Receptacle Female Sockets	Through Hole Right Angle	2	30 Áin	0.76 Ám
EDAC Inc. 630-M37-340-LT4	Mounting Brackets Shielded	Blue	Solder		Housing/Shell (4-40)	UL94 V-0	Copper Alloy	Gold	37	5 A		Signal	Polyamide (PA6T) Nylon 6T	D-Sub	9.4 mm	0.37 in	4 (DC C)	-55 °C	125 °C	Receptacle Female Sockets	Through Hole Right Angle	2	15 µin	0.38 µm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 8.94

Description

General part information

630-M37 Series

37 Position D-Sub Receptacle, Female Sockets Connector
