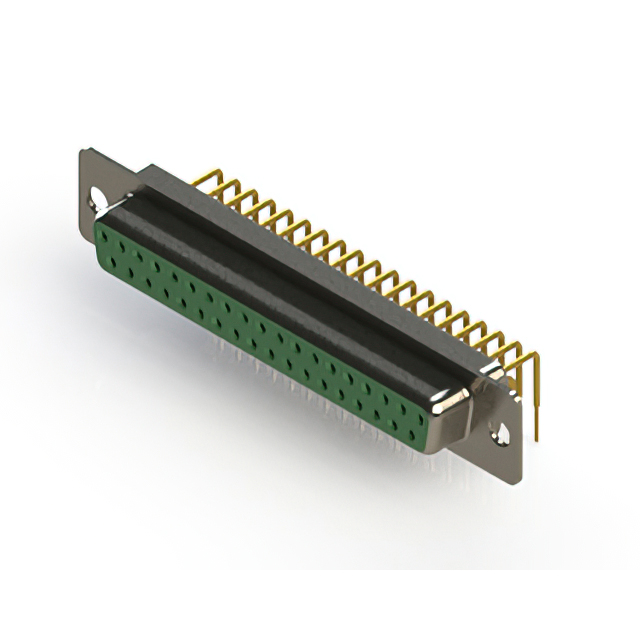

Specification	630-M37-340-GT1

Backset Spacing	0.37 in
Color	Green
Connector Layout	DC, C
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating	5 A
Dielectric Material	Nylon 6T, Polyamide (PA6T)
Features	Shielded
Finish	Tin Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37 pos
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	4
Termination	Solder

630-M37 Series

...

Part	Backset Spacing	Shell Material	Finish	Material Flammability Rating	Flange Feature	Contact Type	Connector Type	Features	Shell Size	Connector Layout	Connector Style	Contact Finish	Termination	Current Rating	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Number of Rows	Contact Form	Contact Material	Dielectric Material	Color	Operating Temperature (Max)	Operating Temperature (Min)
EDAC Inc. 630-M37-240-GN3	0.37 in	Steel	Nickel Plated	UL94 V-0	Housing Shell (4-40)	Signal	Female Sockets Receptacle	Board Lock Mounting Brackets Shielded	4	C DC	D-Sub	Gold	Solder	5 A	37 pos	Right Angle Through Hole	0	Flash	Flash	2	Machined	Copper Alloy	Nylon 6T Polyamide (PA6T)	Green	125 °C	-55 °C
EDAC Inc. 630-M37-340-BN4	0.37 in	Steel	Nickel Plated	UL94 V-0	Housing Shell (4-40)	Signal	Female Sockets Receptacle	Mounting Brackets Shielded	4	C DC	D-Sub	Gold	Solder	5 A	37 pos	Right Angle Through Hole	15 µin			2	Machined	Copper Alloy	Nylon 6T Polyamide (PA6T)	Black	125 °C	-55 °C
EDAC Inc. 630-M37-240-BT4	0.37 in	Steel	Tin Plated	UL94 V-0	Housing Shell (4-40)	Signal	Female Sockets Receptacle	Mounting Brackets Shielded	4	C DC	D-Sub	Gold	Solder	5 A	37 pos	Right Angle Through Hole	0	Flash	Flash	2	Machined	Copper Alloy	Nylon 6T Polyamide (PA6T)	Black	125 °C	-55 °C
EDAC Inc. 630-M37-640-GN2	0.37 in	Steel	Nickel Plated	UL94 V-0	Housing Shell (Unthreaded)	Signal	Female Sockets Receptacle	Shielded	4	C DC	D-Sub	Gold	Solder	5 A	37 pos	Right Angle Through Hole	30 µin			2	Machined	Copper Alloy	Nylon 6T Polyamide (PA6T)	Green	125 °C	-55 °C
EDAC Inc. 630-M37-340-LN4	0.37 in	Steel	Nickel Plated	UL94 V-0	Housing Shell (4-40)	Signal	Female Sockets Receptacle	Mounting Brackets Shielded	4	C DC	D-Sub	Gold	Solder	5 A	37 pos	Right Angle Through Hole	15 µin			2	Machined	Copper Alloy	Nylon 6T Polyamide (PA6T)	Blue	125 °C	-55 °C
EDAC Inc. 630-M37-240-LT3	0.37 in	Steel	Tin Plated	UL94 V-0	Housing Shell (4-40)	Signal	Female Sockets Receptacle	Board Lock Mounting Brackets Shielded	4	C DC	D-Sub	Gold	Solder	5 A	37 pos	Right Angle Through Hole	0	Flash	Flash	2	Machined	Copper Alloy	Nylon 6T Polyamide (PA6T)	Blue	125 °C	-55 °C
EDAC Inc. 630-M37-340-GT1	0.37 in	Steel	Tin Plated	UL94 V-0	Housing Shell (Unthreaded)	Signal	Female Sockets Receptacle	Shielded	4	C DC	D-Sub	Gold	Solder	5 A	37 pos	Right Angle Through Hole	15 µin			2	Machined	Copper Alloy	Nylon 6T Polyamide (PA6T)	Green	125 °C	-55 °C
EDAC Inc. 630-M37-240-BN3	0.37 in	Steel	Nickel Plated	UL94 V-0	Housing Shell (4-40)	Signal	Female Sockets Receptacle	Board Lock Mounting Brackets Shielded	4	C DC	D-Sub	Gold	Solder	5 A	37 pos	Right Angle Through Hole	0	Flash	Flash	2	Machined	Copper Alloy	Nylon 6T Polyamide (PA6T)	Black	125 °C	-55 °C
EDAC Inc. 630-M37-640-BT6	0.37 in	Steel	Tin Plated	UL94 V-0	Mating Side (4-40)	Signal	Female Sockets Receptacle	Mounting Brackets Shielded	4	C DC	D-Sub	Gold	Solder	5 A	37 pos	Right Angle Through Hole	30 µin			2	Machined	Copper Alloy	Nylon 6T Polyamide (PA6T)	Black	125 °C	-55 °C
EDAC Inc. 630-M37-340-LT4	0.37 in	Steel	Tin Plated	UL94 V-0	Housing Shell (4-40)	Signal	Female Sockets Receptacle	Mounting Brackets Shielded	4	C DC	D-Sub	Gold	Solder	5 A	37 pos	Right Angle Through Hole	15 µin			2	Machined	Copper Alloy	Nylon 6T Polyamide (PA6T)	Blue	125 °C	-55 °C
