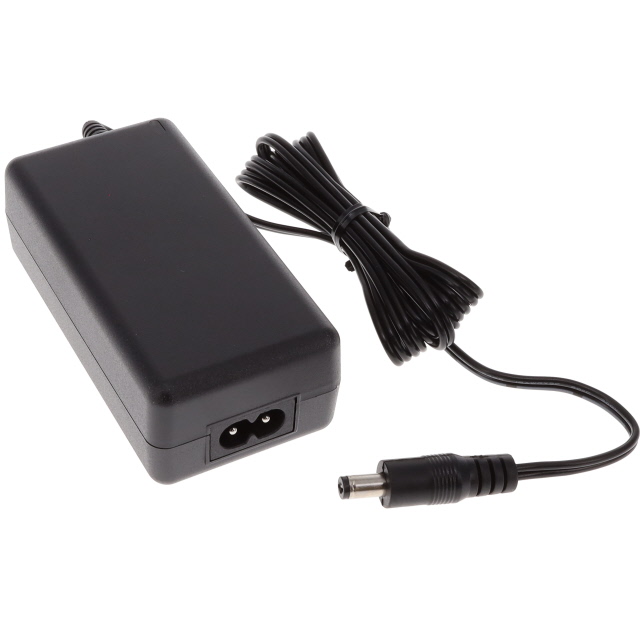

Specification	PPL36W-090

Applications	ITE (Commercial)
Approval Agency	cULus, IEC
Cord Length	59 in
Current - Output (Max)	3.34 A
Efficiency	Level VI, CoC Tier 2
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord (Sold Separately)
No Load Power Consumption (Max)	75 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Output Connector	Barrel Plug
Output Connector I.D.	2.1 mm
Output Connector Length	10 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	30 W
Region Utilized	International
Size / Dimension Height	1.3 in
Size / Dimension Length	3.9 in
Size / Dimension Width	1.97 in
Standard Number	62368-1
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	9 V

PPL36W Series

Part	Input Type	Operating Temperature (Max)	Current - Output (Max)	Approval Agency	Voltage - Output	Efficiency	Region Utilized	Form	Polarization	Applications	Standard Number	No Load Power Consumption (Max)	Cord Length	Power (Watts)	Output Connector O.D.	Output Connector	Output Connector I.D.	Output Connector Length	Input Connector	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum
Phihong USA PPL36W-180	Cord (Sold Separately)	40 °C	2 A	cULus IEC	18 V	CoC Tier 2 Level VI	International	Desktop (Class II)	Positive Center	ITE (Commercial)	62368-1	75 mW	59 in	36 W	5.5 mm	Barrel Plug	2.1 mm	10 mm	IEC 320-C8	1.97 in	1.3 in	3.9 in	90 V	264 V
Phihong USA PPL36W-050	Cord (Sold Separately)	40 °C	5 A	cULus IEC	5 VDC	CoC Tier 2 Level VI	International	Desktop (Class II)	Positive Center	ITE (Commercial)	62368-1	75 mW	39.4 in	25 W	5.5 mm	Barrel Plug	2.1 mm	10 mm	IEC 320-C8	1.97 in	1.3 in	3.9 in	90 V	264 V
Phihong USA PPL36W-120L6	Cord (Sold Separately)	40 °C	3 A	cULus IEC	12 V	CoC Tier 2 Level VI	International	Desktop (Class II)	Positive Center	ITE (Commercial)	62368-1	100 mW	59 in	36 W	5.5 mm	Barrel Plug	2.1 mm	10 mm	IEC 320-C8	1.97 in	1.3 in	3.9 in	90 V	264 V
Phihong USA PPL36W-090	Cord (Sold Separately)	40 °C	3.34 A	cULus IEC	9 V	CoC Tier 2 Level VI	International	Desktop (Class II)	Positive Center	ITE (Commercial)	62368-1	75 mW	59 in	30 W	5.5 mm	Barrel Plug	2.1 mm	10 mm	IEC 320-C8	1.97 in	1.3 in	3.9 in	90 V	264 V
Phihong USA PPL36W-240	Cord (Sold Separately)	40 °C	1.5 A	cULus IEC	24 V	CoC Tier 2 Level VI	International	Desktop (Class II)	Positive Center	ITE (Commercial)	62368-1	75 mW	59 in	36 W	5.5 mm	Barrel Plug	2.1 mm	10 mm	IEC 320-C8	1.97 in	1.3 in	3.9 in	90 V	264 V
Phihong USA PPL36W-480	Cord (Sold Separately)	40 °C	750 mA	cULus IEC	48 V	CoC Tier 2 Level VI	International	Desktop (Class II)	Positive Center	ITE (Commercial)	62368-1	75 mW	59 in	36 W	5.5 mm	Barrel Plug	2.1 mm	10 mm	IEC 320-C8	1.97 in	1.3 in	3.9 in	90 V	264 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PPL36W-090 | Datasheet
