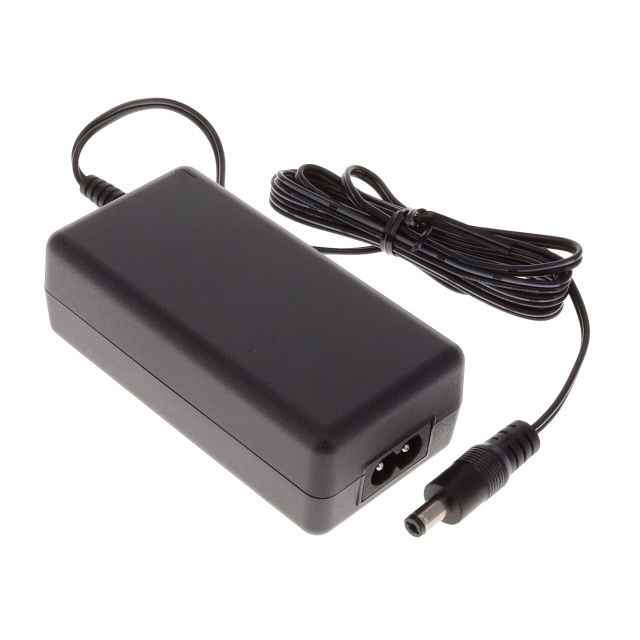

PPL36W-480

Active

Phihong USA

AC/DC DESKTOP ADAPTER 48V 36W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PPL36W-480

Active

Phihong USA

AC/DC DESKTOP ADAPTER 48V 36W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPL36W-480

Applications	ITE (Commercial)
Approval Agency	IEC, cULus
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	750 mA
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	10 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	99 mm
Size / Dimension [x]	3.9 "
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.3 "
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	48 V

PPL36W Series

Part	Approval Agency	Form	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)	Input Type	Input Connector	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Applications	No Load Power Consumption [Max]	Region Utilized	Standard Number	Voltage - Output	Operating Temperature [Max]	Output Connector [z]	Output Connector [diameter]	Output Connector	Efficiency	Cord Length	Cord Length	No Load Power Consumption
Phihong USA PPL36W-180	cULus IEC	Desktop (Class II)	2 A	33 mm	1.3 "	99 mm	3.9 "	1.97 "	50 mm	36 W	Cord	IEC 320-C8	Positive Center	90 VAC	264 VAC	ITE (Commercial)	75 mW	International	62368-1	18 V	40 °C	10 mm	2.1 mm 5.5 mm	Barrel Plug	CoC Tier 2 Level VI	1.5 m	59 in
Phihong USA PPL36W-050	cULus IEC	Desktop (Class II)	5 A	33 mm	1.3 "	99 mm	3.9 "	1.97 "	50 mm	25 W	Cord	IEC 320-C8	Positive Center	90 VAC	264 VAC	ITE (Commercial)	75 mW	International	62368-1	5 V	40 °C	10 mm	2.1 mm 5.5 mm	Barrel Plug	CoC Tier 2 Level VI	1 m	39.4 "
Phihong USA PPL36W-120L6	cULus IEC	Desktop (Class II)	3 A	33 mm	1.3 "	99 mm	3.9 "	1.97 "	50 mm	36 W	Cord	IEC 320-C8	Positive Center	90 VAC	264 VAC	ITE (Commercial)		International	62368-1	12 V	40 °C	10 mm	2.1 mm 5.5 mm	Barrel Plug	CoC Tier 2 Level VI	1.5 m	59 in	100 mW
Phihong USA PPL36W-090	cULus IEC	Desktop (Class II)	3.34 A	33 mm	1.3 "	99 mm	3.9 "	1.97 "	50 mm	30 W	Cord	IEC 320-C8	Positive Center	90 VAC	264 VAC	ITE (Commercial)	75 mW	International	62368-1	9 V	40 °C	10 mm	2.1 mm 5.5 mm	Barrel Plug	CoC Tier 2 Level VI	1.5 m	59 in
Phihong USA PPL36W-240	cULus IEC	Desktop (Class II)	1.5 A	33 mm	1.3 "	99 mm	3.9 "	1.97 "	50 mm	36 W	Cord	IEC 320-C8	Positive Center	90 VAC	264 VAC	ITE (Commercial)	75 mW	International	62368-1	24 V	40 °C	10 mm	2.1 mm 5.5 mm	Barrel Plug	CoC Tier 2 Level VI	1.5 m	59 in
Phihong USA PPL36W-480	cULus IEC	Desktop (Class II)	750 mA	33 mm	1.3 "	99 mm	3.9 "	1.97 "	50 mm	36 W	Cord	IEC 320-C8	Positive Center	90 VAC	264 VAC	ITE (Commercial)	75 mW	International	62368-1	48 V	40 °C	10 mm	2.1 mm 5.5 mm	Barrel Plug	CoC Tier 2 Level VI	1.5 m	59 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.43
		10	$ 15.65
		25	$ 15.00
		50	$ 14.36
		100	$ 13.92
		250	$ 13.11

Description

General part information

PPL36W Series

48V 36 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
