TL6105BF160QP

Active

E-Switch

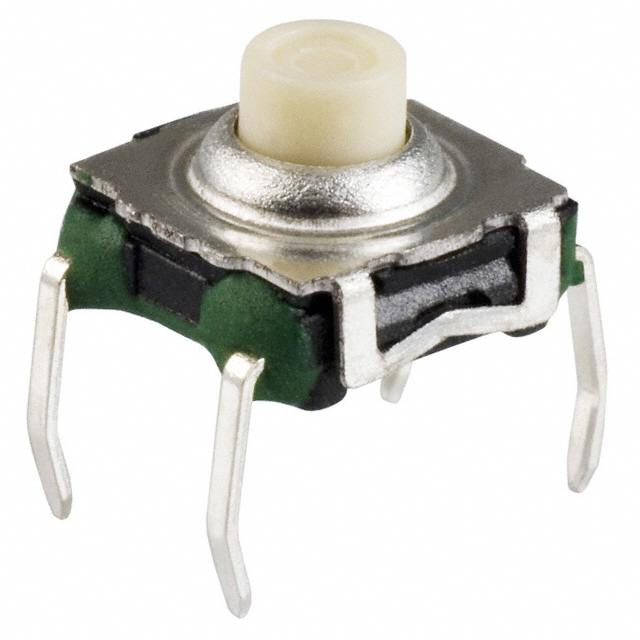

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Through Hole

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TL6105BF160QP	TL6105 Series

Actuator Height off PCB, Vertical	5.2 mm	5.2 mm
Actuator Height off PCB, Vertical	-	4.7 - 10 mm
Actuator Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A	0.05 - 50 VDC
Features	Sealed - Fully, Grounding Pin	Sealed - Fully, Grounding Pin
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	80000 Cycles	80000 - 300000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	-	130 - 300 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	7.2 mm	7.2 mm
Outline [y]	7.2 mm	7.2 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.5 mm	0.25 - 0.5 mm
Termination Style	PC Pin	PC Pin

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Switch Travel	Switch Function	Termination Style	Actuator Height off PCB, Vertical	Actuator Type	Mechanical Life	Illumination	Circuit	Outline [x]	Outline [y]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Actuator Material	Actuator Orientation	Features	Operating Force	Actuator Height off PCB, Vertical [z]
E-Switch TL6105BF160QP	0.5 mm	Off-Mom	PC Pin	5.2 mm	Standard	80000 Cycles	Non-Illuminated	SPST-NO	7.2 mm	7.2 mm	Through Hole	85 °C	-40 °C	0.05 A, 50 VDC	Nylon, Polyamide (PA)	Top Actuated	Grounding Pin, Sealed - Fully
E-Switch TL6105DF300QP	0.5 mm	Off-Mom	PC Pin		Standard		Non-Illuminated	SPST-NO	7.2 mm	7.2 mm	Through Hole	85 °C	-40 °C	0.05 A, 50 VDC	Nylon, Polyamide (PA)	Top Actuated	Grounding Pin, Sealed - Fully	300 gf	10 mm
E-Switch TL6105DF130QP	0.5 mm	Off-Mom	PC Pin		Standard	80000 Cycles	Non-Illuminated	SPST-NO	7.2 mm	7.2 mm	Through Hole	85 °C	-40 °C	0.05 A, 50 VDC	Nylon, Polyamide (PA)	Top Actuated	Grounding Pin, Sealed - Fully	130 gf	10 mm
E-Switch TL6105AF160QP	0.25 mm	Off-Mom	PC Pin		Standard	300000 Cycles	Non-Illuminated	SPST-NO	7.2 mm	7.2 mm	Through Hole	85 °C	-40 °C	0.05 A, 50 VDC	Nylon, Polyamide (PA)	Top Actuated	Grounding Pin, Sealed - Fully		4.7 mm
