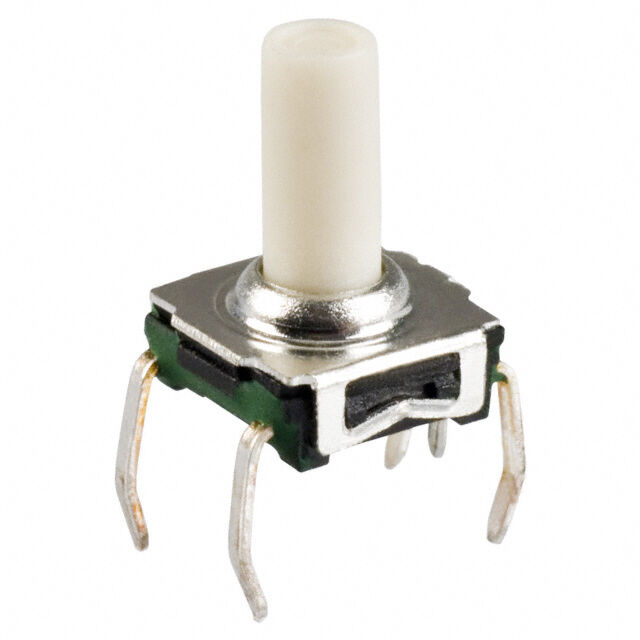

TL6105DF300QP

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TL6105DF300QP	TL6105 Series

Actuator Height off PCB, Vertical	-	5.2 mm
Actuator Height off PCB, Vertical [z]	10 mm	4.7 - 10 mm
Actuator Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A	0.05 - 50 VDC
Features	Sealed - Fully, Grounding Pin	Sealed - Fully, Grounding Pin
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	-	80000 - 300000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	300 gf	130 - 300 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	7.2 mm	7.2 mm
Outline [y]	7.2 mm	7.2 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.5 mm	0.25 - 0.5 mm
Termination Style	PC Pin	PC Pin

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Switch Travel	Switch Function	Termination Style	Actuator Height off PCB, Vertical	Actuator Type	Mechanical Life	Illumination	Circuit	Outline [x]	Outline [y]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Actuator Material	Actuator Orientation	Features	Operating Force	Actuator Height off PCB, Vertical [z]
E-Switch TL6105BF160QP	0.5 mm	Off-Mom	PC Pin	5.2 mm	Standard	80000 Cycles	Non-Illuminated	SPST-NO	7.2 mm	7.2 mm	Through Hole	85 °C	-40 °C	0.05 A, 50 VDC	Nylon, Polyamide (PA)	Top Actuated	Grounding Pin, Sealed - Fully
E-Switch TL6105DF300QP	0.5 mm	Off-Mom	PC Pin		Standard		Non-Illuminated	SPST-NO	7.2 mm	7.2 mm	Through Hole	85 °C	-40 °C	0.05 A, 50 VDC	Nylon, Polyamide (PA)	Top Actuated	Grounding Pin, Sealed - Fully	300 gf	10 mm
E-Switch TL6105DF130QP	0.5 mm	Off-Mom	PC Pin		Standard	80000 Cycles	Non-Illuminated	SPST-NO	7.2 mm	7.2 mm	Through Hole	85 °C	-40 °C	0.05 A, 50 VDC	Nylon, Polyamide (PA)	Top Actuated	Grounding Pin, Sealed - Fully	130 gf	10 mm
E-Switch TL6105AF160QP	0.25 mm	Off-Mom	PC Pin		Standard	300000 Cycles	Non-Illuminated	SPST-NO	7.2 mm	7.2 mm	Through Hole	85 °C	-40 °C	0.05 A, 50 VDC	Nylon, Polyamide (PA)	Top Actuated	Grounding Pin, Sealed - Fully		4.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	5040	$ 0.77

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
