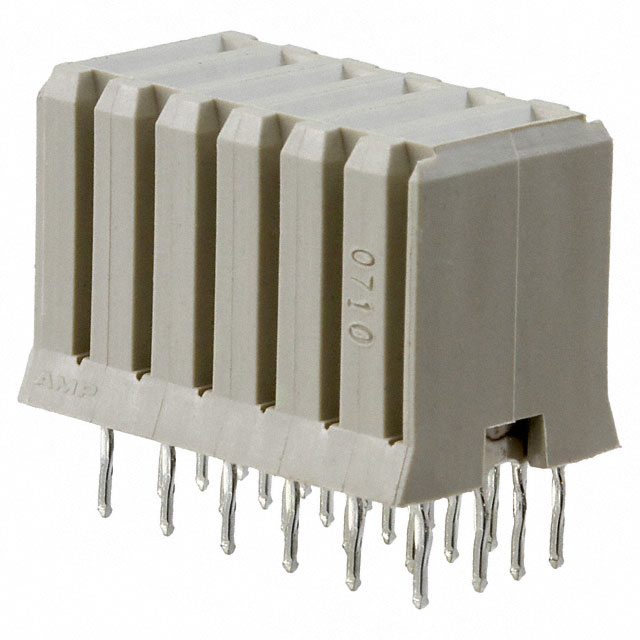

Specification	223995-3

Color	Gray
Connector Style	Blade Power
Connector Type	Receptacle, Female Blade Sockets
Connector Usage	Backplane
Contact Finish	Gold-Palladium, Gold
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Power Contacts (Typical)	6
Termination	Press-Fit
Voltage Rating	250 V

223995 Series

Part	Material Flammability Rating	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Number of Positions	Number of Rows	Color	Power Contacts (Typical)	Number of Positions Loaded	Mounting Type	Connector Style	Contact Finish	Termination	Connector Usage
TE Connectivity AMP Connectors 223995-7	UL94 V-0	250 V	125 °C	-55 °C	Female Blade Sockets Receptacle	10	1	Gray	10	All	Through Hole	Blade Power	Gold Gold-Palladium	Press-Fit	Backplane
TE Connectivity AMP Connectors 223995-4	UL94 V-0	250 V	125 °C	-55 °C	Female Blade Sockets Receptacle	7	1	Gray	7	All	Through Hole	Blade Power	Gold Gold-Palladium	Press-Fit	Backplane
TE Connectivity AMP Connectors 223995-3	UL94 V-0	250 V	125 °C	-55 °C	Female Blade Sockets Receptacle	6	1	Gray	6	All	Through Hole	Blade Power	Gold Gold-Palladium	Press-Fit	Backplane
TE Connectivity AMP Connectors 223995-9	UL94 V-0	250 V	125 °C	-55 °C	Female Blade Sockets Receptacle	12	1	Gray	12	All	Through Hole	Blade Power	Gold Gold-Palladium	Press-Fit	Backplane
