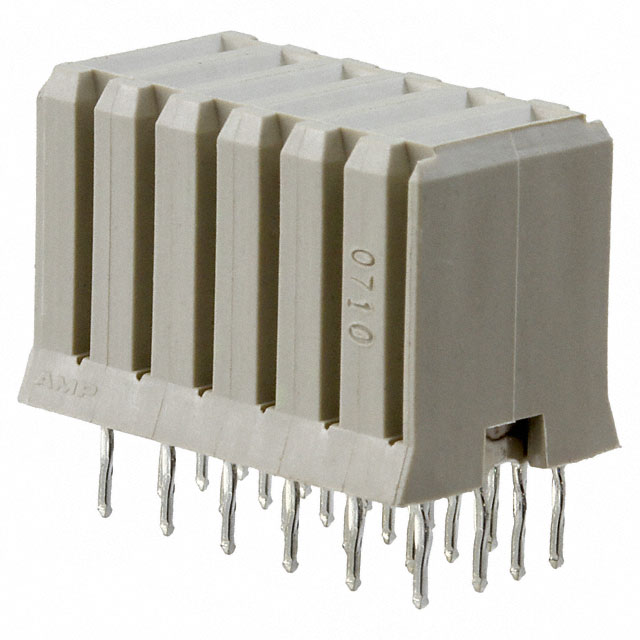

Universal Power Modu Series
Power to the Board UPM EXPANDED REC ASY
Manufacturer: TE Connectivity Raychem Cable Protection
Catalog
Power to the Board UPM EXPANDED REC ASY
Beta
⌘K
Power to the Board UPM EXPANDED REC ASY
Power to the Board UPM EXPANDED REC ASY
Power to the Board UPM EXPANDED REC ASY
| Part | Number of Positions | Number of Rows | Connector Style | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Color | Voltage Rating | Contact Finish | Termination | Connector Usage | Contact Layout, Typical | Connector Type | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 10 | 1 | Blade Power | All | -55 °C | 125 °C | Through Hole | Gray | 250 VDC | Gold Gold-Palladium | Press-Fit | Backplane | 10 Power | Receptacle Female Blade Sockets | UL94 V-0 |
TE Connectivity Raychem Cable Protection | 7 | 1 | Blade Power | All | -55 °C | 125 °C | Through Hole | Gray | 250 VDC | Gold Gold-Palladium | Press-Fit | Backplane | 7 Power | Receptacle Female Blade Sockets | UL94 V-0 |
TE Connectivity Raychem Cable Protection | 6 | 1 | Blade Power | All | -55 °C | 125 °C | Through Hole | Gray | 250 VDC | Gold Gold-Palladium | Press-Fit | Backplane | 6 Power | Receptacle Female Blade Sockets | UL94 V-0 |
