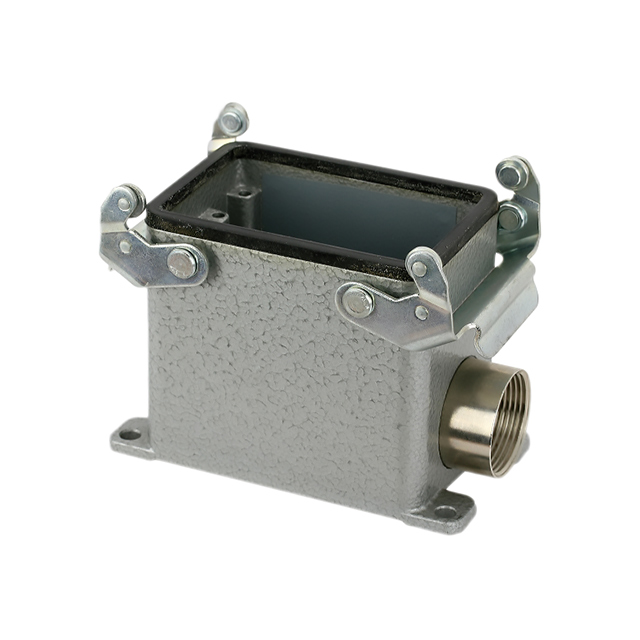

Specification	C14610N0326504

Connector Type	Base - Box Mount
Features	Feed Through
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Size	A32
Size / Dimension Height	2.953 in
Size / Dimension Length	4.173 in
Size / Dimension Width	2.244 in
Style	Side Entry
Thread Size	M25

C14610N032 Series

Part	Housing Material	Thread Size	Connector Type	Size	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Ingress Protection IP Rating	Ingress Protection Description	Style	Lock Location	Features
Amphenol Tuchel Industrial C14610N0326504	Aluminum Alloy Die Cast	M25	Base - Box Mount	A32	100 °C	-40 °C	4.173 in	2.953 in	2.244 in	IP65	Dust Tight Water Resistant	Side Entry	Locking Clip (2) on Base Bottom	Feed Through
Amphenol Tuchel Industrial C14610N0326004	Aluminum Alloy Die Cast	M32	Base - Box Mount	A32	100 °C	-40 °C	4.173 in	2.953 in	2.244 in	IP65	Dust Tight Water Resistant	Side Entry	Locking Clip (2) on Base Bottom	Feed Through
