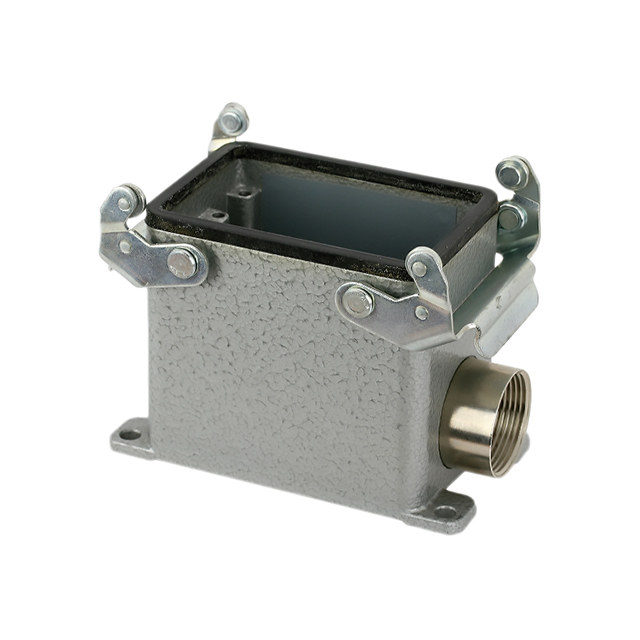

C14610N0326004

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA32 M32

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA32 M32

Technical Specifications

Parameters and characteristics for this part

Specification	C14610N0326004

Connector Type	Base - Box Mount
Features	Feed Through
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A32
Size / Dimension [x]	106 mm
Size / Dimension [x]	4.173 "
Size / Dimension [y]	2.244 "
Size / Dimension [y]	57 mm
Size / Dimension [z]	2.953 in
Size / Dimension [z]	75 mm
Style	Side Entry
Thread Size	M32

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Housing Material	Thread Size	Size	Style	Features	Connector Type	Lock Location	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol Tuchel Industrial C14610N0326504	2.953 in	2.244 "	106 mm	75 mm	57 mm	4.173 "	Aluminum Alloy Die Cast	M25	A32	Side Entry	Feed Through	Base - Box Mount	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	100 °C	-40 °C
Amphenol Tuchel Industrial C14610N0326004	2.953 in	2.244 "	106 mm	75 mm	57 mm	4.173 "	Aluminum Alloy Die Cast	M32	A32	Side Entry	Feed Through	Base - Box Mount	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 94.83

General part information

Base - Box Mount Connector Side Entry M32 A32 IP65 - Dust Tight, Water Resistant

Technical documentation and resources

No documents available
