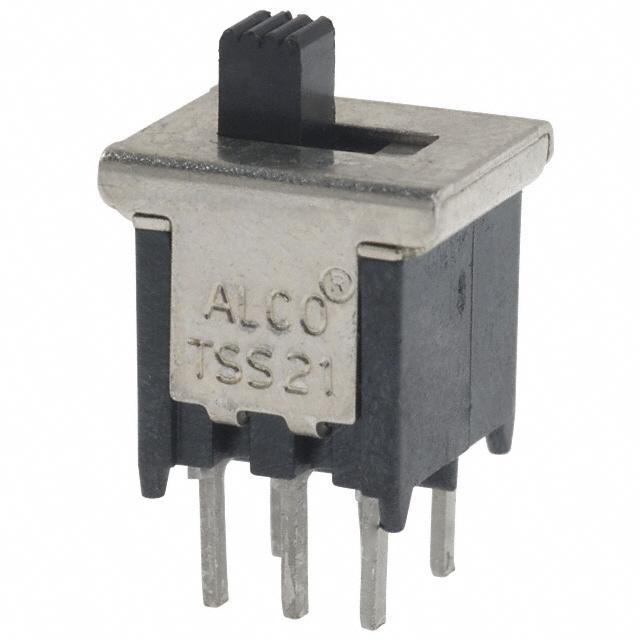

TSS21NGPC

Active

TE Connectivity Raychem Cable Protection

TSS21NGPC=SWITCH SLIDE P/C TER

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

TSS21NGPC=SWITCH SLIDE P/C TER

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Electrical Life	Voltage Rating - AC	Switch Function	Mechanical Life	Contact Timing	Mounting Type	Voltage Rating - DC	Operating Force [Max]	Operating Force [Min]	Termination Style	Actuator Material	Switch Travel	Actuator Type	Contact Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Actuator Length [x]
TE Connectivity Raychem Cable Protection TSS21NGPC	DPDT	60000 Cycles	20 V	On-On	60000 Cycles	Non-Shorting	Through Hole	20 V	600 gf	150 gf	PC Pin	Polyester	3.05 mm	Standard	Copper	0.4 VA	-20 C	80 C	Gold	2.8 mm
TE Connectivity Raychem Cable Protection TSS21NGRA	DPDT	60000 Cycles	20 V	On-On	60000 Cycles	Non-Shorting	Through Hole Right Angle	20 V	600 gf	150 gf	PC Pin	Polyester	3.05 mm	Standard	Copper	0.4 VA	-20 C	80 C	Gold	2.79 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 6.69

General part information

.4 A Slide Switch, Double Pole - Double Throw, Vertical, Copper, Single Actuator, 2 Position, On None On, 20 VDC, Extended Actuator
