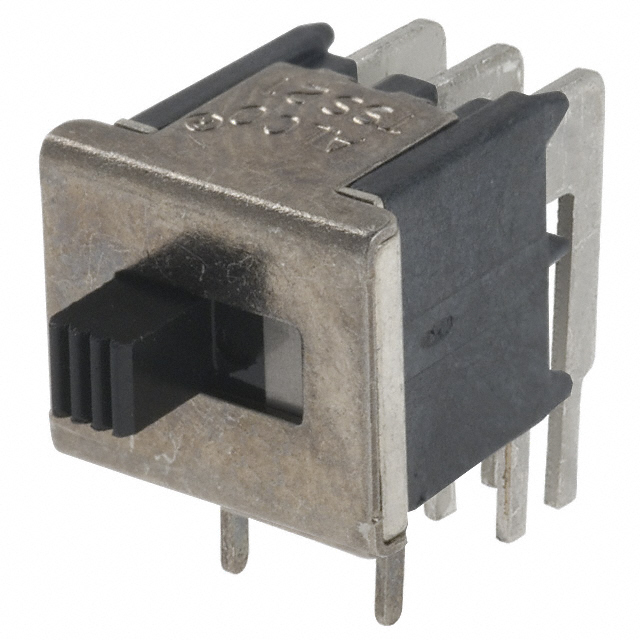

TSS21NGRA

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DPDT 0.4VA 20V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Circuit	Electrical Life	Voltage Rating - AC	Switch Function	Mechanical Life	Contact Timing	Mounting Type	Voltage Rating - DC	Operating Force [Max]	Operating Force [Min]	Termination Style	Actuator Material	Switch Travel	Actuator Type	Contact Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Actuator Length [x]
TE Connectivity Raychem Cable Protection TSS21NGPC	DPDT	60000 Cycles	20 V	On-On	60000 Cycles	Non-Shorting	Through Hole	20 V	600 gf	150 gf	PC Pin	Polyester	3.05 mm	Standard	Copper	0.4 VA	-20 C	80 C	Gold	2.8 mm
TE Connectivity Raychem Cable Protection TSS21NGRA	DPDT	60000 Cycles	20 V	On-On	60000 Cycles	Non-Shorting	Through Hole Right Angle	20 V	600 gf	150 gf	PC Pin	Polyester	3.05 mm	Standard	Copper	0.4 VA	-20 C	80 C	Gold	2.79 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 13.23

General part information

Slide Switch DPDT Through Hole, Right Angle
