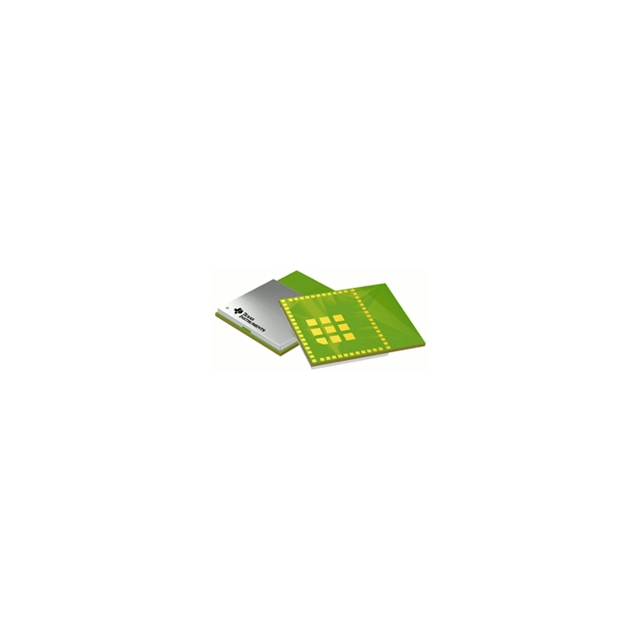

CC3235MODASF12MONR

Active

Texas Instruments

SIMPLELINK™ WI-FI CERTIFIED™ DUAL-BAND WIRELESS ANTENNA MODULE SOLUTION WITH 1MB XIP FLASH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCC3235MODASF Reliability Data – Reliability Estimate SimpleLink™ Wi-Fi® CC3x20, CC3x3x Network Processor (Rev. M)+12

CC3235MODASF12MONR

Active

Texas Instruments

SIMPLELINK™ WI-FI CERTIFIED™ DUAL-BAND WIRELESS ANTENNA MODULE SOLUTION WITH 1MB XIP FLASH

Deep-Dive with AI

DocumentsCC3235MODASF Reliability Data – Reliability Estimate SimpleLink™ Wi-Fi® CC3x20, CC3x3x Network Processor (Rev. M)+12

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CC3235MODASF12MONR

Antenna Type	Integrated, Trace
Current - Receiving [Max]	80 mA
Current - Receiving [Min]	53 mA
Current - Transmitting [Max]	329 mA
Current - Transmitting [Min]	154 mA
Data Rate	54 Mbps
Frequency [Max]	5.825 GHz, 2.472 GHz
Frequency [Min]	5.18 GHz, 2.412 GHz
Memory Size	1 MB, 256 kB
Modulation	DSSS, OFDM, CCK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	63-SMD Module
Power - Output	16.3 dBm
Protocol	802.11a/b/g/n
RF Family/Standard	WiFi
Serial Interfaces	JTAG, GPIO, SPI, I2C, UART, PWM, ADC
Utilized IC / Part	CC3235SF
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.3 V

CC3235MODASF Series

SimpleLink™ Wi-Fi CERTIFIED™ dual-band wireless antenna module solution with 1MB XIP Flash

Part	Operating Temperature [Max]	Operating Temperature [Min]	Protocol	Data Rate	Serial Interfaces	Current - Receiving [Max]	Current - Receiving [Min]	RF Family/Standard	Mounting Type	Frequency [Min]	Frequency [Max]	Antenna Type	Package / Case	Power - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Transmitting [Max]	Current - Transmitting [Min]	Utilized IC / Part	Modulation	Memory Size
Texas Instruments CC3235MODASF12MONR	85 °C	-40 °C	802.11a/b/g/n	54 Mbps	ADC, GPIO, I2C, JTAG, PWM, SPI, UART	80 mA	53 mA	WiFi	Surface Mount	2.412 GHz, 5.18 GHz	2.472 GHz, 5.825 GHz	Integrated, Trace	63-SMD Module	16.3 dBm	2.3 V	3.6 V	329 mA	154 mA	CC3235SF	CCK, DSSS, OFDM	1 MB, 256 kB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 21.64
		10	$ 19.98
		25	$ 18.31
		100	$ 16.93
		250	$ 16.09
	Digi-Reel®	1	$ 21.64
		10	$ 19.98
		25	$ 18.31
		100	$ 16.93
		250	$ 16.09
	Tape & Reel (TR)	700	$ 14.98
Texas Instruments	LARGE T&R	1	$ 18.24
		100	$ 15.93
		250	$ 12.29
		1000	$ 10.99

Description

General part information

CC3235MODASF Series

Start your design with the fully programmable FCC, IC/ISED, ETSI/CE, MIC, and SRRC certified wireless microcontroller (MCU) module with built-in dual-band Wi-Fi connectivity. The modules integrate the 40MHz crystal, 32.768kHz RTC clock, 32Mb SPI serial flash, RF filters, diplexer, and passive components.

The SimpleLink™ CC3235MODx module is available in two variants:

The SimpleLink™ CC3235MODAx module is available in two variants:
