Phoenix Contact

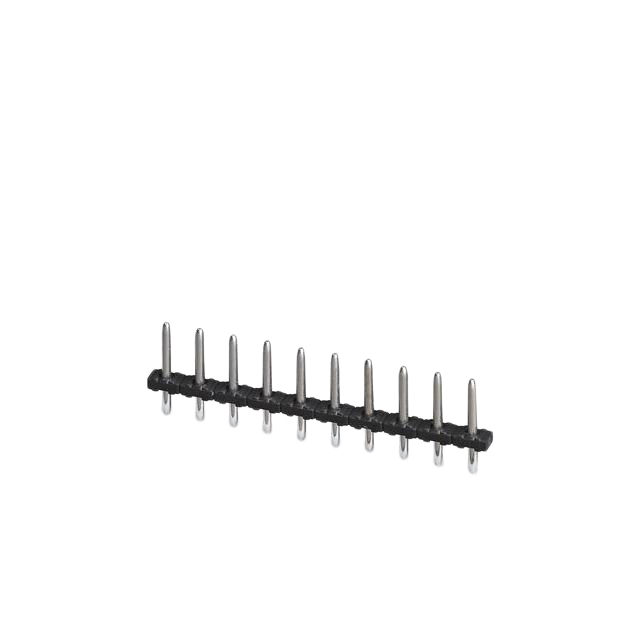

HEADERS & WIRE HOUSINGS 14 POS 5MM PITCH THRU HOLE PIN STRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet
1933309 - 1935556

1933309

Active
Phoenix Contact

HEADERS & WIRE HOUSINGS 14 POS 5MM PITCH THRU HOLE PIN STRIP

Deep-Dive with AI

DocumentsDatasheetDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification1933309PST Series
ColorBlackBlack
Contact Mating FinishTinTin
Contact Tail Length3.5 mm3.5 - 3.81 mm
Contact Tail Length0.138 in0.138 - 0.15 in
Current - IEC12 A8 - 13.5 A
Current - UL16 A10 - 16 A
Features-Pick and Place Cap
Header OrientationVerticalVertical, 90°, Right Angle
Housing MaterialPolyamide (PA), NylonPolyamide (PA), Nylon
Insulation Height0.079 in0.079 - 0.512 in
Insulation Height2 mm2 - 13 mm
Material Flammability RatingUL94 V-0UL94 V-0
Mounting TypeThrough HoleThrough Hole
Number of Levels11
Number of Positions148 - 15
Pitch [x]5 mm3.5 - 5 mm
Pitch [x]0.197 in0.138 - 0.197 in
Positions Per Level148 - 15
Termination StyleSolderSolder
TypeHeader, Male Pins, UnshroudedHeader, Male Pins, Unshrouded, Male Pins, Partial Shroud, Header
Voltage - IEC400 V250 - 400 V
Voltage - UL300 V300 V

PST Series

Headers & Wire Housings 16 Pos 3.5mm pitch Thru Hole Pin Strip

PartCurrent - IECColorTermination StyleMaterial Flammability RatingNumber of LevelsPitch [x]Pitch [x]Voltage - ULMounting TypeCurrent - ULNumber of PositionsContact Mating FinishHeader OrientationVoltage - IECPositions Per LevelInsulation HeightInsulation HeightTypeHousing MaterialContact Tail LengthContact Tail LengthFeatures
Phoenix Contact
1945180
8 A
Black
Solder
UL94 V-0
1
3.5 mm
0.138 in
300 V
Through Hole
10 A
11
Tin
Vertical
250 V
11
13 mm
0.512 in
Header, Male Pins, Unshrouded
Polyamide (PA), Nylon
0.15 in
3.81 mm
Phoenix Contact
1704576
13.5 A
Black
Solder
UL94 V-0
1
5 mm
0.197 in
300 V
Through Hole
10 A
11
Tin
Vertical
400 V
11
11.2 mm
0.441 "
Header, Male Pins, Partial Shroud
Polyamide (PA), Nylon
0.138 in
3.5 mm
Phoenix Contact
1720356
12 A
Black
Solder
UL94 V-0
1
5 mm
0.197 in
300 V
Through Hole
16 A
8
Tin
Vertical
400 V
8
2 mm
0.079 in
Header, Male Pins, Unshrouded
Polyamide (PA), Nylon
0.138 in
3.5 mm
Pick and Place Cap
Phoenix Contact
1704424
13.5 A
Black
Solder
UL94 V-0
1
5 mm
0.197 in
300 V
Through Hole
10 A
12
Tin
90°, Right Angle
400 V
12
11.2 mm
0.441 "
Header, Male Pins, Partial Shroud
Polyamide (PA), Nylon
0.138 in
3.5 mm
Phoenix Contact
1933309
12 A
Black
Solder
UL94 V-0
1
5 mm
0.197 in
300 V
Through Hole
16 A
14
Tin
Vertical
400 V
14
2 mm
0.079 in
Header, Male Pins, Unshrouded
Polyamide (PA), Nylon
0.138 in
3.5 mm
Phoenix Contact
1704547
13.5 A
Black
Solder
UL94 V-0
1
5 mm
0.197 in
300 V
Through Hole
10 A
8
Tin
Vertical
400 V
8
11.2 mm
0.441 "
Header, Male Pins, Partial Shroud
Polyamide (PA), Nylon
0.138 in
3.5 mm
Phoenix Contact
1933260
12 A
Black
Solder
UL94 V-0
1
5 mm
0.197 in
300 V
Through Hole
16 A
10
Tin
Vertical
400 V
10
2 mm
0.079 in
Header, Male Pins, Unshrouded
Polyamide (PA), Nylon
0.138 in
3.5 mm
Phoenix Contact
1945229
8 A
Black
Solder
UL94 V-0
1
3.5 mm
0.138 in
300 V
Through Hole
10 A
15
Tin
Vertical
250 V
15
13 mm
0.512 in
Header, Male Pins, Unshrouded
Polyamide (PA), Nylon
0.15 in
3.81 mm
