1933260

Active

Phoenix Contact

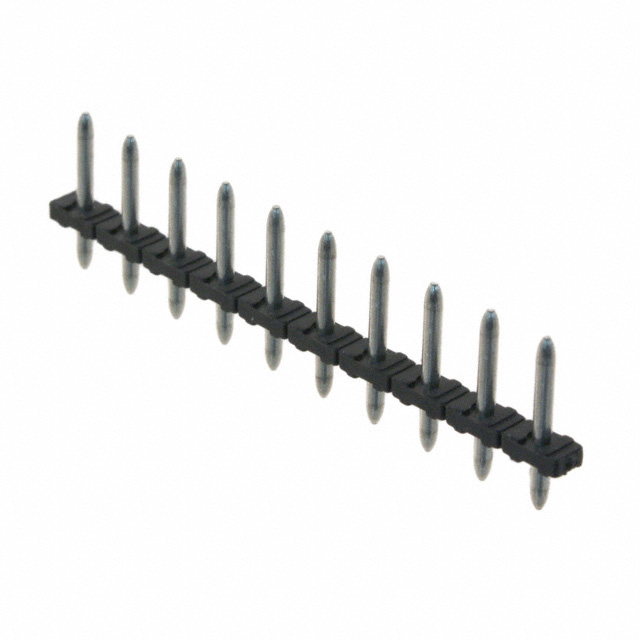

HEADERS & WIRE HOUSINGS 10 POS 5MM PITCH THRU HOLE PIN STRIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

1933260

Active

Phoenix Contact

HEADERS & WIRE HOUSINGS 10 POS 5MM PITCH THRU HOLE PIN STRIP

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.33
		10	$ 0.95
		25	$ 0.83
		50	$ 0.75
		100	$ 0.75
Sager	N/A	1	$ 1.33
		10	$ 1.27
		25	$ 1.11
		50	$ 0.95
		100	$ 0.92
		250	$ 0.88

Description

General part information

PST Series

Headers & Wire Housings 16 Pos 3.5mm pitch Thru Hole Pin Strip

Documents

Technical documentation and resources

Datasheet

Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1933260	PST Series

Color	Black	Black
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 - 3.81 mm
Contact Tail Length	0.138 in	0.138 - 0.15 in
Current - IEC	12 A	8 - 13.5 A
Current - UL	16 A	10 - 16 A
Features	-	Pick and Place Cap
Header Orientation	Vertical	Vertical, 90°, Right Angle
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	0.079 in	0.079 - 0.512 in
Insulation Height	2 mm	2 - 13 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	10	8 - 15
Pitch [x]	5 mm	3.5 - 5 mm
Pitch [x]	0.197 in	0.138 - 0.197 in
Positions Per Level	10	8 - 15
Termination Style	Solder	Solder
Type	Header, Male Pins, Unshrouded	Header, Male Pins, Unshrouded, Male Pins, Partial Shroud, Header
Voltage - IEC	400 V	250 - 400 V
Voltage - UL	300 V	300 V

PST Series

Headers & Wire Housings 16 Pos 3.5mm pitch Thru Hole Pin Strip

Part	Current - IEC	Color	Termination Style	Material Flammability Rating	Number of Levels	Pitch [x]	Pitch [x]	Voltage - UL	Mounting Type	Current - UL	Number of Positions	Contact Mating Finish	Header Orientation	Voltage - IEC	Positions Per Level	Insulation Height	Insulation Height	Type	Housing Material	Contact Tail Length	Contact Tail Length	Features
Phoenix Contact 1945180	8 A	Black	Solder	UL94 V-0	1	3.5 mm	0.138 in	300 V	Through Hole	10 A	11	Tin	Vertical	250 V	11	13 mm	0.512 in	Header, Male Pins, Unshrouded	Polyamide (PA), Nylon	0.15 in	3.81 mm
Phoenix Contact 1704576	13.5 A	Black	Solder	UL94 V-0	1	5 mm	0.197 in	300 V	Through Hole	10 A	11	Tin	Vertical	400 V	11	11.2 mm	0.441 "	Header, Male Pins, Partial Shroud	Polyamide (PA), Nylon	0.138 in	3.5 mm
Phoenix Contact 1720356	12 A	Black	Solder	UL94 V-0	1	5 mm	0.197 in	300 V	Through Hole	16 A	8	Tin	Vertical	400 V	8	2 mm	0.079 in	Header, Male Pins, Unshrouded	Polyamide (PA), Nylon	0.138 in	3.5 mm	Pick and Place Cap
Phoenix Contact 1704424	13.5 A	Black	Solder	UL94 V-0	1	5 mm	0.197 in	300 V	Through Hole	10 A	12	Tin	90°, Right Angle	400 V	12	11.2 mm	0.441 "	Header, Male Pins, Partial Shroud	Polyamide (PA), Nylon	0.138 in	3.5 mm
Phoenix Contact 1933309	12 A	Black	Solder	UL94 V-0	1	5 mm	0.197 in	300 V	Through Hole	16 A	14	Tin	Vertical	400 V	14	2 mm	0.079 in	Header, Male Pins, Unshrouded	Polyamide (PA), Nylon	0.138 in	3.5 mm
Phoenix Contact 1704547	13.5 A	Black	Solder	UL94 V-0	1	5 mm	0.197 in	300 V	Through Hole	10 A	8	Tin	Vertical	400 V	8	11.2 mm	0.441 "	Header, Male Pins, Partial Shroud	Polyamide (PA), Nylon	0.138 in	3.5 mm
Phoenix Contact 1933260	12 A	Black	Solder	UL94 V-0	1	5 mm	0.197 in	300 V	Through Hole	16 A	10	Tin	Vertical	400 V	10	2 mm	0.079 in	Header, Male Pins, Unshrouded	Polyamide (PA), Nylon	0.138 in	3.5 mm
Phoenix Contact 1945229	8 A	Black	Solder	UL94 V-0	1	3.5 mm	0.138 in	300 V	Through Hole	10 A	15	Tin	Vertical	250 V	15	13 mm	0.512 in	Header, Male Pins, Unshrouded	Polyamide (PA), Nylon	0.15 in	3.81 mm
