General part information

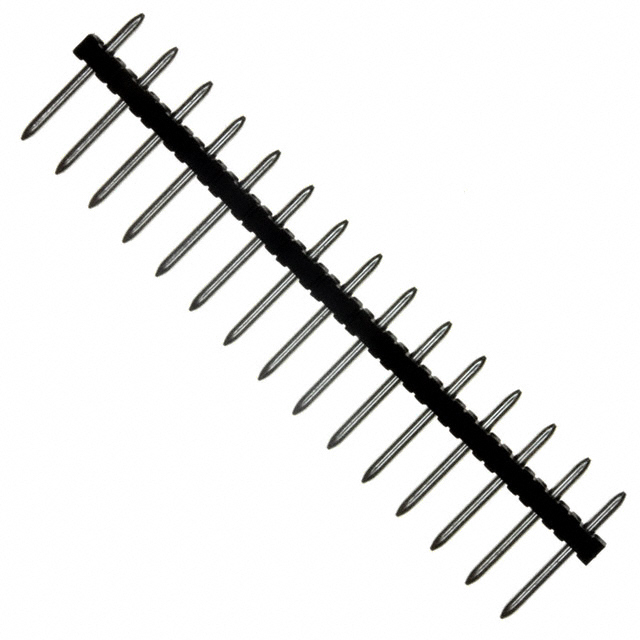

Headers & Wire Housings 16 Pos 3.5mm pitch Thru Hole Pin Strip
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1945229 | PST Series |
|---|---|---|
| Color | Black | Black |
| Contact Mating Finish | Tin | Tin |
| Contact Tail Length | 0.15 in | 0.138 - 0.15 in |
| Contact Tail Length | 3.81 mm | 3.5 - 3.81 mm |
| Current - IEC | 8 A | 8 - 13.5 A |
| Current - UL | 10 A | 10 - 16 A |
| Features | - | Pick and Place Cap |
| Header Orientation | Vertical | Vertical, 90°, Right Angle |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Insulation Height | 13 mm | 2 - 13 mm |
| Insulation Height | 0.512 in | 0.079 - 0.512 in |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Number of Positions | 15 | 8 - 15 |
| Pitch [x] | 3.5 mm | 3.5 - 5 mm |
| Pitch [x] | 0.138 in | 0.138 - 0.197 in |
| Positions Per Level | 15 | 8 - 15 |
| Termination Style | Solder | Solder |
| Type | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded, Male Pins, Partial Shroud, Header |
| Voltage - IEC | 250 V | 250 - 400 V |
| Voltage - UL | 300 V | 300 V |
Headers & Wire Housings 16 Pos 3.5mm pitch Thru Hole Pin Strip
| Part | Current - IEC | Color | Termination Style | Material Flammability Rating | Number of Levels | Pitch [x] | Pitch [x] | Voltage - UL | Mounting Type | Current - UL | Number of Positions | Contact Mating Finish | Header Orientation | Voltage - IEC | Positions Per Level | Insulation Height | Insulation Height | Type | Housing Material | Contact Tail Length | Contact Tail Length | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1945180 | 8 A | Black | Solder | UL94 V-0 | 1 | 3.5 mm | 0.138 in | 300 V | Through Hole | 10 A | 11 | Tin | Vertical | 250 V | 11 | 13 mm | 0.512 in | Header, Male Pins, Unshrouded | Polyamide (PA), Nylon | 0.15 in | 3.81 mm | |
Phoenix Contact 1704576 | 13.5 A | Black | Solder | UL94 V-0 | 1 | 5 mm | 0.197 in | 300 V | Through Hole | 10 A | 11 | Tin | Vertical | 400 V | 11 | 11.2 mm | 0.441 " | Header, Male Pins, Partial Shroud | Polyamide (PA), Nylon | 0.138 in | 3.5 mm | |
Phoenix Contact 1720356 | 12 A | Black | Solder | UL94 V-0 | 1 | 5 mm | 0.197 in | 300 V | Through Hole | 16 A | 8 | Tin | Vertical | 400 V | 8 | 2 mm | 0.079 in | Header, Male Pins, Unshrouded | Polyamide (PA), Nylon | 0.138 in | 3.5 mm | Pick and Place Cap |
Phoenix Contact 1704424 | 13.5 A | Black | Solder | UL94 V-0 | 1 | 5 mm | 0.197 in | 300 V | Through Hole | 10 A | 12 | Tin | 90°, Right Angle | 400 V | 12 | 11.2 mm | 0.441 " | Header, Male Pins, Partial Shroud | Polyamide (PA), Nylon | 0.138 in | 3.5 mm | |
Phoenix Contact 1933309 | 12 A | Black | Solder | UL94 V-0 | 1 | 5 mm | 0.197 in | 300 V | Through Hole | 16 A | 14 | Tin | Vertical | 400 V | 14 | 2 mm | 0.079 in | Header, Male Pins, Unshrouded | Polyamide (PA), Nylon | 0.138 in | 3.5 mm | |
Phoenix Contact 1704547 | 13.5 A | Black | Solder | UL94 V-0 | 1 | 5 mm | 0.197 in | 300 V | Through Hole | 10 A | 8 | Tin | Vertical | 400 V | 8 | 11.2 mm | 0.441 " | Header, Male Pins, Partial Shroud | Polyamide (PA), Nylon | 0.138 in | 3.5 mm | |
Phoenix Contact 1933260 | 12 A | Black | Solder | UL94 V-0 | 1 | 5 mm | 0.197 in | 300 V | Through Hole | 16 A | 10 | Tin | Vertical | 400 V | 10 | 2 mm | 0.079 in | Header, Male Pins, Unshrouded | Polyamide (PA), Nylon | 0.138 in | 3.5 mm | |
Phoenix Contact 1945229 | 8 A | Black | Solder | UL94 V-0 | 1 | 3.5 mm | 0.138 in | 300 V | Through Hole | 10 A | 15 | Tin | Vertical | 250 V | 15 | 13 mm | 0.512 in | Header, Male Pins, Unshrouded | Polyamide (PA), Nylon | 0.15 in | 3.81 mm |
