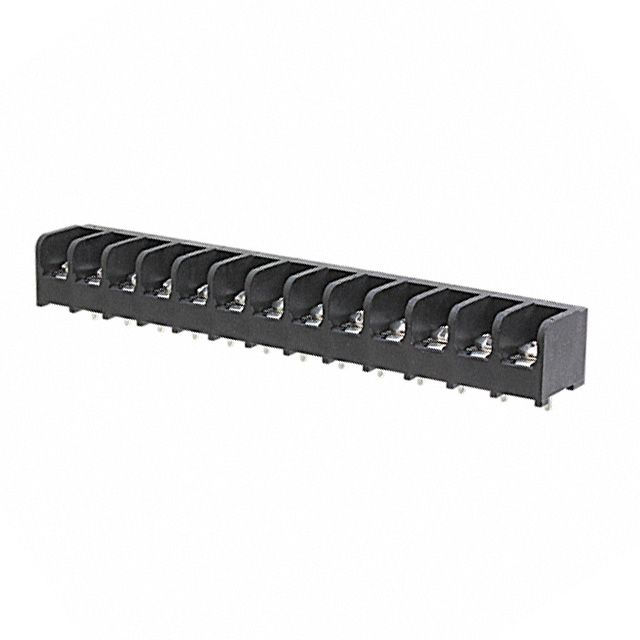

6-1437653-5

Active

TE Connectivity Raychem Cable Protection

CONN BARRIER STRP 13CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6-1437653-5

Active

TE Connectivity Raychem Cable Protection

CONN BARRIER STRP 13CIRC 0.375"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6-1437653-5

Barrier Type	3 Wall (Tri)
Bottom Termination	PC Pin
Color	Black
Current Rating (Amps)	25 A
Material - Insulation	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	13
Number of Rows	1
Number of Wire Entries	13
Operating Temperature	105 C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel, Stainless
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

1437653 Series

Part	Material Flammability Rating	Number of Wire Entries	Voltage Rating	Terminal Screw Material	Number of Rows	Bottom Termination	Barrier Type	Material - Insulation	Terminal Block Type	Operating Temperature	Wire Gauge [Min]	Wire Gauge [Max]	Current Rating (Amps)	Pitch [x]	Pitch [x]	Color	Number of Circuits	Top Termination	Mounting Type	Number of Circuits [custom]	Features	Terminal Screw Finish
TE Connectivity Raychem Cable Protection 3-1437653-8	UL94 V-0	10	300 VDC	Stainless Steel	1	PC Pin	3 Wall (Tri)	Thermoplastic	Barrier Block	105 C	12 AWG	22 AWG	25 A	9.53 mm	0.375 in	Black	10	Screws	Through Hole
TE Connectivity Raychem Cable Protection 5-1437653-8	UL94 V-0	12	300 VDC	Stainless Steel	1	PC Pin	3 Wall (Tri)	Thermoplastic	Barrier Block	105 C	12 AWG	22 AWG	25 A	9.53 mm	0.375 in	Black	12	Screws	Through Hole
TE Connectivity Raychem Cable Protection 1-1437653-6	UL94 V-0	8	300 VDC	Steel	1	PC Pin	3 Wall (Tri)	Thermoplastic	Barrier Block	105 C	12 AWG	22 AWG	25 A	9.53 mm	0.375 in	Black		Screws	Chassis Panel Through Hole	8	Flange	Clear Chromate Zinc
TE Connectivity Raychem Cable Protection 1-1437653-9	UL94 V-0	8	300 VDC	Stainless Steel	1	PC Pin	3 Wall (Tri)	Thermoplastic	Barrier Block	105 C	12 AWG	22 AWG	25 A	9.53 mm	0.375 in	Black		Screws	Through Hole	8
TE Connectivity Raychem Cable Protection 6-1437653-5	UL94 V-0	13	300 VDC	Stainless Steel	1	PC Pin	3 Wall (Tri)	Thermoplastic	Barrier Block	105 C	12 AWG	22 AWG	25 A	9.53 mm	0.375 in	Black	13	Screws	Through Hole
TE Connectivity Raychem Cable Protection 9-1437653-4	UL94 V-0	16	300 VDC	Stainless Steel	1	PC Pin	3 Wall (Tri)	Thermoplastic	Barrier Block	105 C	12 AWG	22 AWG	25 A	9.53 mm	0.375 in	Black	16	Screws	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.70
		10	$ 7.59
		25	$ 6.71
		55	$ 6.11
		110	$ 5.69
		275	$ 5.27
		550	$ 5.02
		1045	$ 4.85

Description

General part information

1437653 Series

13 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
