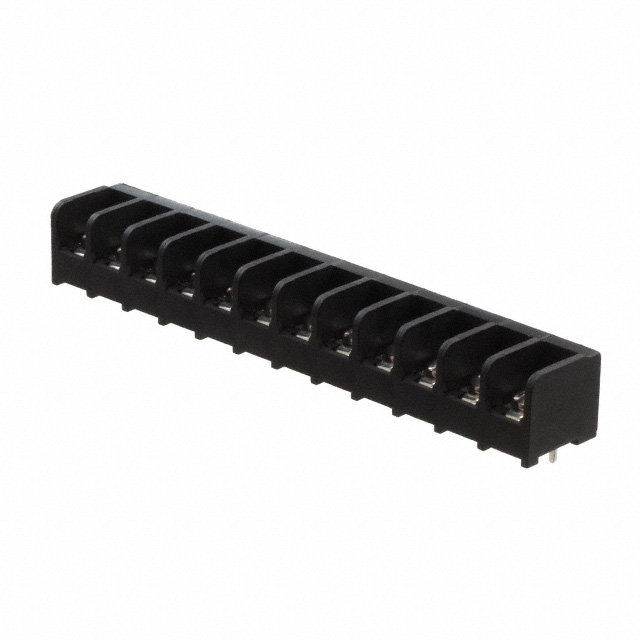

5-1437653-8
ActiveTE Connectivity Raychem Cable Protection
CONN BARRIER STRP 12CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-1437653-8
ActiveTE Connectivity Raychem Cable Protection
CONN BARRIER STRP 12CIRC 0.375"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-1437653-8 |
|---|---|
| Barrier Type | 3 Wall (Tri) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating (Amps) | 25 A |
| Material - Insulation | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Circuits | 12 |
| Number of Rows | 1 |
| Number of Wire Entries | 12 |
| Operating Temperature | 105 C |
| Pitch [x] | 9.53 mm |
| Pitch [x] | 0.375 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Material | Steel, Stainless |
| Top Termination | Screws |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.01 | |
| 10 | $ 5.80 | |||
| 25 | $ 5.39 | |||
| 60 | $ 5.02 | |||
| 120 | $ 4.74 | |||
| 300 | $ 4.40 | |||
| 540 | $ 4.20 | |||
| 1020 | $ 3.99 | |||
Description
General part information
1437653 Series
12 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
