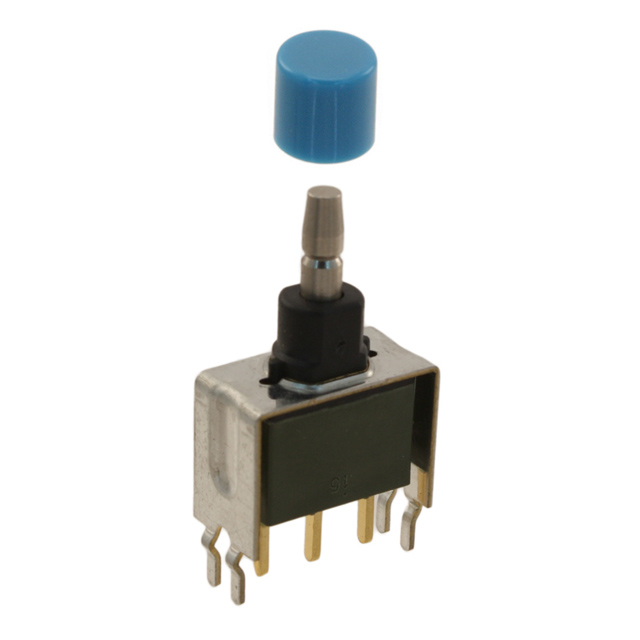

M2B15BA5G13-CG

Active

NKK Switches

PROCESS SEALED MINIATURE PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2B15BA5G13-CG

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Blue
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Process Sealed
Mechanical Life	200000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2B15BA Series

Part	Switch Function	Color - Actuator/Cap	Type	Actuator Marking	Circuit	Voltage Rating - AC	Mechanical Life	Voltage Rating - DC	Features	Electrical Life	Mounting Type	Actuator Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)
NKK Switches M2B15BA5G30-BC	On-Mom	Red	Standard	No Marking	SPDT	28 V	200000 Cycles	28 V	Process Sealed	100000 Cycles	Through Hole Right Angle	Button Round	PC Pin	-30 ░C	85 °C	0.4 VA
NKK Switches M2B15BA5G13	On-Mom		Standard	No Marking	SPDT	28 V	200000 Cycles	28 V	Process Sealed	100000 Cycles	Through Hole	Plunger for Cap	PC Pin	-30 ░C	85 °C	0.4 VA
NKK Switches M2B15BA5W03-CB	On-Mom	White	Standard	No Marking	SPDT	125 V	200000 Cycles	30 V	Process Sealed	25000 Steps	Through Hole	Button Round	PC Pin	-30 ░C	85 °C
NKK Switches M2B15BA5G30	On-Mom		Standard	No Marking	SPDT	28 V	200000 Cycles	28 V	Process Sealed	100000 Cycles	Through Hole Right Angle	Plunger for Cap	PC Pin	-30 ░C	85 °C	0.4 VA
NKK Switches M2B15BA5W03-CA	On-Mom	Black	Standard	No Marking	SPDT	125 V	200000 Cycles	30 V	Process Sealed	25000 Steps	Through Hole	Button Round	PC Pin	-30 ░C	85 °C
NKK Switches M2B15BA5G13-BA	On-Mom	Black	Standard	No Marking	SPDT	28 V	200000 Cycles	28 V	Process Sealed	100000 Cycles	Through Hole	Button Round	PC Pin	-30 ░C	85 °C	0.4 VA
NKK Switches M2B15BA5W40-CA	On-Mom	Black	Standard	No Marking	SPDT	125 V	200000 Cycles	30 V	Process Sealed	25000 Steps	Right Angle Through Hole Vertical	Button Round	PC Pin	-30 ░C	85 °C
NKK Switches M2B15BA5G13-CG	On-Mom	Blue	Standard	No Marking	SPDT	28 V	200000 Cycles	28 V	Process Sealed	100000 Cycles	Through Hole	Button Round	PC Pin	-30 ░C	85 °C	0.4 VA
NKK Switches M2B15BA5W30	On-Mom		Standard	No Marking	SPDT	125 V	200000 Cycles	30 V	Process Sealed	25000 Steps	Through Hole Right Angle	Plunger for Cap	PC Pin	-30 ░C	85 °C
NKK Switches M2B15BA5G03-BA	On-Mom	Black	Standard	No Marking	SPDT	28 V	200000 Cycles	28 V	Process Sealed	100000 Cycles	Through Hole	Button Round	PC Pin	-30 ░C	85 °C	0.4 VA
