M2B15BA5G30

Active

NKK Switches

PROCESS SEALED MINIATURE PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

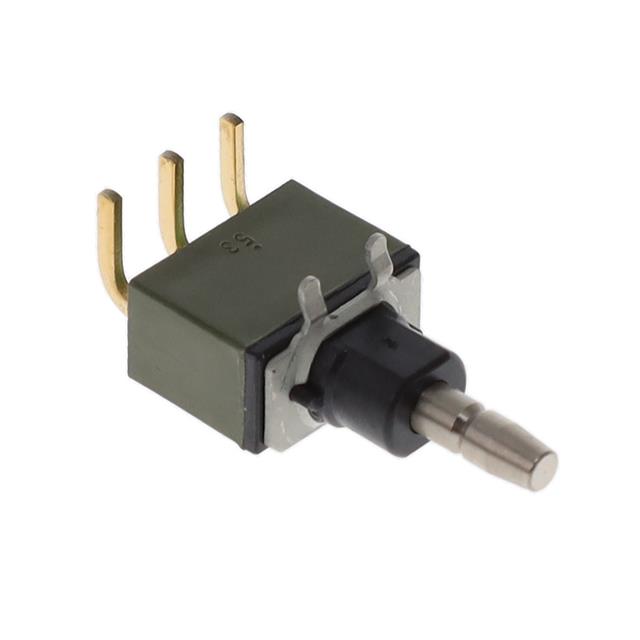

M2B15BA5G30

Active

NKK Switches

PROCESS SEALED MINIATURE PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2B15BA5G30

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Process Sealed
Mechanical Life	200000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2B15BA Series

Part	Switch Function	Color - Actuator/Cap	Type	Actuator Marking	Circuit	Voltage Rating - AC	Mechanical Life	Voltage Rating - DC	Features	Electrical Life	Mounting Type	Actuator Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)
NKK Switches M2B15BA5G30-BC	On-Mom	Red	Standard	No Marking	SPDT	28 V	200000 Cycles	28 V	Process Sealed	100000 Cycles	Through Hole Right Angle	Button Round	PC Pin	-30 ░C	85 °C	0.4 VA
NKK Switches M2B15BA5G13	On-Mom		Standard	No Marking	SPDT	28 V	200000 Cycles	28 V	Process Sealed	100000 Cycles	Through Hole	Plunger for Cap	PC Pin	-30 ░C	85 °C	0.4 VA
NKK Switches M2B15BA5W03-CB	On-Mom	White	Standard	No Marking	SPDT	125 V	200000 Cycles	30 V	Process Sealed	25000 Steps	Through Hole	Button Round	PC Pin	-30 ░C	85 °C
NKK Switches M2B15BA5G30	On-Mom		Standard	No Marking	SPDT	28 V	200000 Cycles	28 V	Process Sealed	100000 Cycles	Through Hole Right Angle	Plunger for Cap	PC Pin	-30 ░C	85 °C	0.4 VA
NKK Switches M2B15BA5W03-CA	On-Mom	Black	Standard	No Marking	SPDT	125 V	200000 Cycles	30 V	Process Sealed	25000 Steps	Through Hole	Button Round	PC Pin	-30 ░C	85 °C
NKK Switches M2B15BA5G13-BA	On-Mom	Black	Standard	No Marking	SPDT	28 V	200000 Cycles	28 V	Process Sealed	100000 Cycles	Through Hole	Button Round	PC Pin	-30 ░C	85 °C	0.4 VA
NKK Switches M2B15BA5W40-CA	On-Mom	Black	Standard	No Marking	SPDT	125 V	200000 Cycles	30 V	Process Sealed	25000 Steps	Right Angle Through Hole Vertical	Button Round	PC Pin	-30 ░C	85 °C
NKK Switches M2B15BA5G13-CG	On-Mom	Blue	Standard	No Marking	SPDT	28 V	200000 Cycles	28 V	Process Sealed	100000 Cycles	Through Hole	Button Round	PC Pin	-30 ░C	85 °C	0.4 VA
NKK Switches M2B15BA5W30	On-Mom		Standard	No Marking	SPDT	125 V	200000 Cycles	30 V	Process Sealed	25000 Steps	Through Hole Right Angle	Plunger for Cap	PC Pin	-30 ░C	85 °C
NKK Switches M2B15BA5G03-BA	On-Mom	Black	Standard	No Marking	SPDT	28 V	200000 Cycles	28 V	Process Sealed	100000 Cycles	Through Hole	Button Round	PC Pin	-30 ░C	85 °C	0.4 VA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.50
		10	$ 6.75
		100	$ 5.94
		1000	$ 4.92
Newark	Each	1	$ 11.22
		5	$ 10.46
		10	$ 9.62
		25	$ 8.78
		50	$ 7.94
		100	$ 7.02
		250	$ 6.30

Description

General part information

M2B15BA Series

Pushbutton Switch SPDT Standard Through Hole, Right Angle
