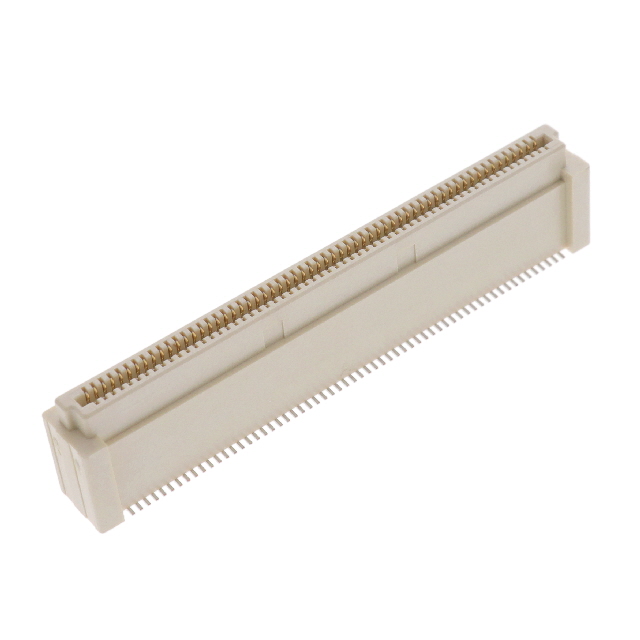

10139781-123402LF

Active

Amphenol ICC (FCI)

BERGSTAK+ 0.8MM, REC, R3, 120POS

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

BERGSTAK+ 0.8MM, REC, R3, 120POS

Technical Specifications

Parameters and characteristics for this part

Specification	10139781-123402LF

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Pick and Place, Board Guide
Height Above Board	0.461 in
Height Above Board	11.7 mm
Mated Stacking Heights	16 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Features	Mated Stacking Heights	Mounting Type	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Height Above Board
Amphenol ICC (FCI) 10139781-121402LF	Gold	8 çin	0.203 çm	3.7 mm	0.146 in	Board Guide Pick and Place	5 mm 8 mm	Surface Mount	120	0.8 mm	0.031 in	Receptacle Outer Shroud Contacts	2
Amphenol ICC (FCI) 10139781-123402LF	Gold	8 çin	0.203 çm	0.461 in		Board Guide Pick and Place	16 mm	Surface Mount	120	0.8 mm	0.031 in	Receptacle Outer Shroud Contacts	2	11.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
