10139781-121402LF
ActiveAmphenol ICC (FCI)

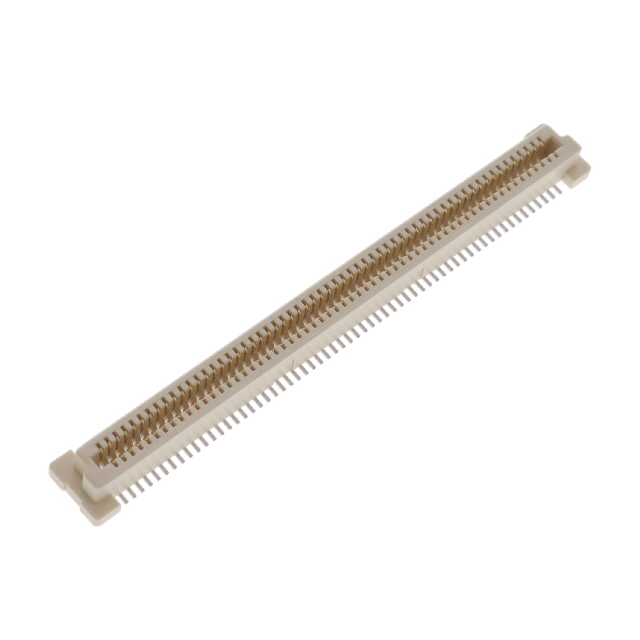

BERGSTAK+ 0.8MM, REC, R1, 120POS
Deep-Dive with AI
Search across all available documentation for this part.
10139781-121402LF
ActiveAmphenol ICC (FCI)
BERGSTAK+ 0.8MM, REC, R1, 120POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10139781-121402LF |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Pick and Place, Board Guide |
| Height Above Board | 3.7 mm |
| Height Above Board | 0.146 in |
| Mated Stacking Heights | 8 mm, 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 120 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.06 | |
| 10 | $ 6.18 | |||
| 25 | $ 5.58 | |||
| 50 | $ 5.17 | |||
| 100 | $ 4.82 | |||
| 250 | $ 4.37 | |||
| Digi-Reel® | 1 | $ 8.06 | ||
| 10 | $ 6.18 | |||
| 25 | $ 5.58 | |||
| 50 | $ 5.17 | |||
| 100 | $ 4.82 | |||
| 250 | $ 4.37 | |||
| Tape & Reel (TR) | 800 | $ 3.88 | ||
| 1600 | $ 3.64 | |||
| 2400 | $ 3.53 | |||
Description
General part information
10139781 Series
120 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
