23RCFB100

Active

Essentra Access Solutions

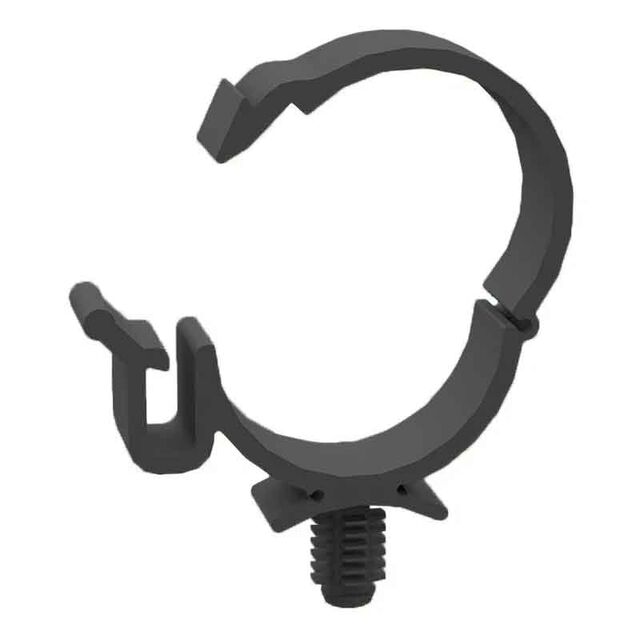

FASTENER, HINGED CABLE CLAMP, 25.4 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 9.5 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, HINGED CABLE CLAMP, 25.4 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 9.5 MM

Technical Specifications

Parameters and characteristics for this part

Specification	23RCFB100

Color	Natural
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fir Tree
Opening Size [custom]	1 in
Opening Size [custom]	25.4 mm
Panel Hole Size	6.35 mm
Panel Hole Size	0.25 in
Type	C-Type, Clip
Type Attributes	Hinged, Locking
Width [x]	0.375 in
Width [x]	9.53 mm

Part	Material	Width [x]	Width	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Mounting Type	Material Flammability Rating	Type Attributes	Color	Opening Size [z]	Type	Panel Hole Size	Panel Hole Size	Width [y]	Width [y]	Opening Size [diameter]	Opening Size [diameter]	Panel Hole Size	Opening Size [custom]	Opening Size [custom]	Width [x]
Essentra Access Solutions 23RCFB035C	Polyamide (PA66) Nylon 6/6	0.3 "	7.62 mm	0.203 "	0.51 mm	5.16 mm	0.02 "	Fir Tree	UL94 V-2	Hinged Locking	Natural	0.35 in	C-Type Clip	0.256 in	6.5 mm
Essentra Access Solutions 23RCFB035CB	Polyamide (PA66) Nylon 6/6	0.3 "	7.62 mm	0.203 "	0.51 mm	5.16 mm	0.02 "	Fir Tree	UL94 V-2	Hinged Locking	Black	0.35 in	C-Type Clip	0.256 in	6.5 mm
Essentra Access Solutions 23RCFB05025	Polyamide (PA66) Nylon 6/6							Fir Tree	UL94 V-2	Hinged Locking	Natural		C-Type Clip	0.187 in	4.75 mm	4.75 mm	0.187 in	12.7 mm	0.5 in
Essentra Access Solutions 23RCFB037	Polyamide (PA66) Nylon 6/6							Fir Tree	UL94 V-2	Hinged Locking	Natural		C-Type Clip	0.187 in	4.75 mm	4.75 mm	0.187 in
Essentra Access Solutions 23RCFB050B	Polyamide (PA66) Nylon 6/6							Fir Tree	UL94 V-2	Hinged Locking	Natural		C-Type Clip		0.25 in	4.75 mm	0.187 in	12.7 mm	0.5 in	6.35 mm
Essentra Access Solutions 23RCFB100	Polyamide (PA66) Nylon 6/6	0.375 in						Fir Tree	UL94 V-2	Hinged Locking	Natural		C-Type Clip		0.25 in					6.35 mm	1 in	25.4 mm	9.53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, C-Type Natural Fir Tree 1.000" (25.40mm)
