23RCFB05025

Active

Essentra Access Solutions

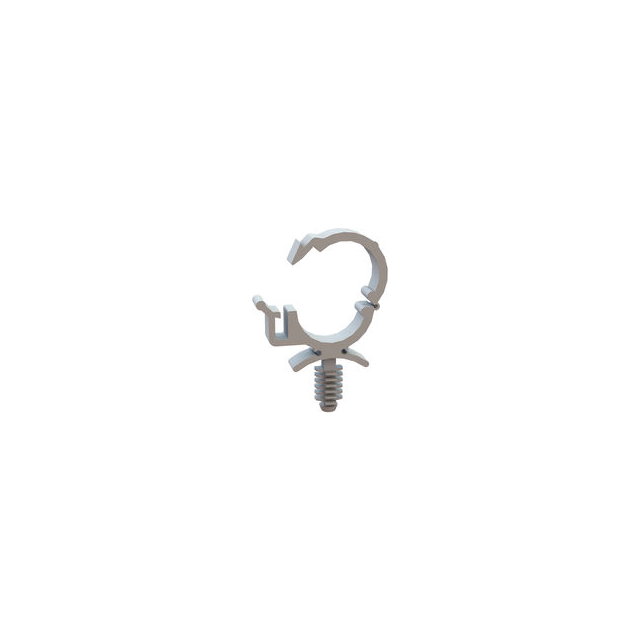

CBL CLIP C-TYPE NATURAL FIR TREE

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP C-TYPE NATURAL FIR TREE

Technical Specifications

Parameters and characteristics for this part

Specification	23RCFB05025

Color	Natural
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Fir Tree
Opening Size [diameter]	12.7 mm
Opening Size [diameter]	0.5 in
Panel Hole Size	4.75 mm
Panel Hole Size	0.187 in
Type	C-Type, Clip
Type Attributes	Hinged, Locking
Width [y]	4.75 mm
Width [y]	0.187 in

Part	Material	Width [x]	Width	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Mounting Type	Material Flammability Rating	Type Attributes	Color	Opening Size [z]	Type	Panel Hole Size	Panel Hole Size	Width [y]	Width [y]	Opening Size [diameter]	Opening Size [diameter]	Panel Hole Size	Opening Size [custom]	Opening Size [custom]	Width [x]
Essentra Access Solutions 23RCFB035C	Polyamide (PA66) Nylon 6/6	0.3 "	7.62 mm	0.203 "	0.51 mm	5.16 mm	0.02 "	Fir Tree	UL94 V-2	Hinged Locking	Natural	0.35 in	C-Type Clip	0.256 in	6.5 mm
Essentra Access Solutions 23RCFB035CB	Polyamide (PA66) Nylon 6/6	0.3 "	7.62 mm	0.203 "	0.51 mm	5.16 mm	0.02 "	Fir Tree	UL94 V-2	Hinged Locking	Black	0.35 in	C-Type Clip	0.256 in	6.5 mm
Essentra Access Solutions 23RCFB05025	Polyamide (PA66) Nylon 6/6							Fir Tree	UL94 V-2	Hinged Locking	Natural		C-Type Clip	0.187 in	4.75 mm	4.75 mm	0.187 in	12.7 mm	0.5 in
Essentra Access Solutions 23RCFB037	Polyamide (PA66) Nylon 6/6							Fir Tree	UL94 V-2	Hinged Locking	Natural		C-Type Clip	0.187 in	4.75 mm	4.75 mm	0.187 in
Essentra Access Solutions 23RCFB050B	Polyamide (PA66) Nylon 6/6							Fir Tree	UL94 V-2	Hinged Locking	Natural		C-Type Clip		0.25 in	4.75 mm	0.187 in	12.7 mm	0.5 in	6.35 mm
Essentra Access Solutions 23RCFB100	Polyamide (PA66) Nylon 6/6	0.375 in						Fir Tree	UL94 V-2	Hinged Locking	Natural		C-Type Clip		0.25 in					6.35 mm	1 in	25.4 mm	9.53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, C-Type Natural Fir Tree 0.500" (12.70mm)
