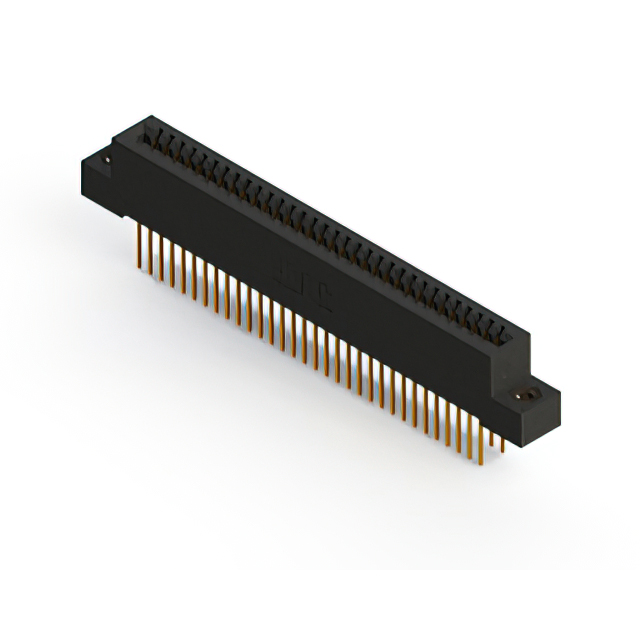

892-064-541-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 64POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-064-541-208

Active

EDAC Inc.

CONN EDGE DUAL FMALE 64POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-064-541-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	64
Number of Positions/Bay/Row [custom]	32
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

892-064 Series

...

Part	Contact Type	Contact Finish	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Color	Read Out	Gender	Material - Insulation	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Termination	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Positions/Bay/Row [custom]	Number of Positions	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]
EDAC Inc. 892-064-555-204	Cantilever	Gold	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Solder	Non Specified - Dual Edge	125 °C	-40 °C	Card Extender	32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-556-203	Cantilever	Gold	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Solder	Non Specified - Dual Edge	125 °C	-40 °C	Card Extender	32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-542-201	Cantilever	Gold				Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Through Hole	10 Áin	0.25 Ám	2	Wire Wrap	Non Specified - Dual Edge	125 °C	-40 °C		32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-558-207	Cantilever	Gold		Flush Mount M3 Threaded Insert Top Opening		Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Through Hole Right Angle	10 Áin	0.25 Ám	2	Solder	Non Specified - Dual Edge	125 °C	-40 °C		32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-555-207	Cantilever	Gold		Flush Mount M3 Threaded Insert Top Opening		Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Solder	Non Specified - Dual Edge	125 °C	-40 °C	Card Extender	32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-541-208	Cantilever	Gold		4-40 Flush Mount Threaded Insert Top Opening		Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Through Hole	10 Áin	0.25 Ám	2	Wire Wrap	Non Specified - Dual Edge	125 °C	-40 °C		32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-559-204	Cantilever	Gold	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Through Hole Right Angle	10 Áin	0.25 Ám	2	Solder	Non Specified - Dual Edge	125 °C	-40 °C		32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-556-207	Cantilever	Gold		Flush Mount M3 Threaded Insert Top Opening		Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Solder	Non Specified - Dual Edge	125 °C	-40 °C	Card Extender	32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-544-204	Cantilever	Gold	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Through Hole	10 Áin	0.25 Ám	2	Wire Wrap	Non Specified - Dual Edge	125 °C	-40 °C		32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-540-212	Cantilever	Gold	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Through Hole	10 Áin	0.25 Ám	2	Wire Wrap	Non Specified - Dual Edge	125 °C	-40 °C		32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 89.08
Newark	Each	1	$ 106.91
		100	$ 79.50
		250	$ 69.00
		500	$ 59.32
		1000	$ 43.25

Description

General part information

892-064 Series

64 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
