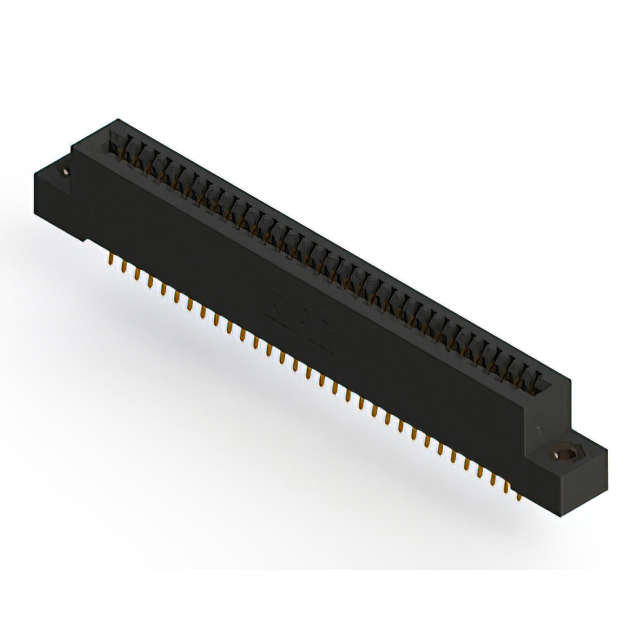

892-064-556-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 64POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-064-556-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 64POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-064-556-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	64
Number of Positions/Bay/Row [custom]	32
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

892-064 Series

...

Part	Contact Type	Contact Finish	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Color	Read Out	Gender	Material - Insulation	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Termination	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Positions/Bay/Row [custom]	Number of Positions	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]
EDAC Inc. 892-064-555-204	Cantilever	Gold	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Solder	Non Specified - Dual Edge	125 °C	-40 °C	Card Extender	32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-556-203	Cantilever	Gold	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Solder	Non Specified - Dual Edge	125 °C	-40 °C	Card Extender	32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-542-201	Cantilever	Gold				Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Through Hole	10 Áin	0.25 Ám	2	Wire Wrap	Non Specified - Dual Edge	125 °C	-40 °C		32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-558-207	Cantilever	Gold		Flush Mount M3 Threaded Insert Top Opening		Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Through Hole Right Angle	10 Áin	0.25 Ám	2	Solder	Non Specified - Dual Edge	125 °C	-40 °C		32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-555-207	Cantilever	Gold		Flush Mount M3 Threaded Insert Top Opening		Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Solder	Non Specified - Dual Edge	125 °C	-40 °C	Card Extender	32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-541-208	Cantilever	Gold		4-40 Flush Mount Threaded Insert Top Opening		Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Through Hole	10 Áin	0.25 Ám	2	Wire Wrap	Non Specified - Dual Edge	125 °C	-40 °C		32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-559-204	Cantilever	Gold	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Through Hole Right Angle	10 Áin	0.25 Ám	2	Solder	Non Specified - Dual Edge	125 °C	-40 °C		32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-556-207	Cantilever	Gold		Flush Mount M3 Threaded Insert Top Opening		Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	10 Áin	0.25 Ám	2	Solder	Non Specified - Dual Edge	125 °C	-40 °C	Card Extender	32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-544-204	Cantilever	Gold	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Through Hole	10 Áin	0.25 Ám	2	Wire Wrap	Non Specified - Dual Edge	125 °C	-40 °C		32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in
EDAC Inc. 892-064-540-212	Cantilever	Gold	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Black	Dual	Female	Polyphenylene Sulfide (PPS)	2	Through Hole	10 Áin	0.25 Ám	2	Wire Wrap	Non Specified - Dual Edge	125 °C	-40 °C		32	64	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 103.63

Description

General part information

892-064 Series

64 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
